Server Version#: 1.40.1.8227
Player Version#:
Windows 10 based rack server → PLEX server → MakeMKV 4K Dolby Vision/Atmos movie → Cat5e/6 Ethernet → NVidia Shield 2017 → PLEX player client app → JVC EXOFIELD HDMI control box → Denon AVR-X3400H → Sony VPL-VW360ES 4K projector
I have recorded an analysis I did of recording of James Bond movie “No Time To Die” (copyright MGM) on my own home projection system from NVidia Shield TV 2017 using PLEX media server/client application

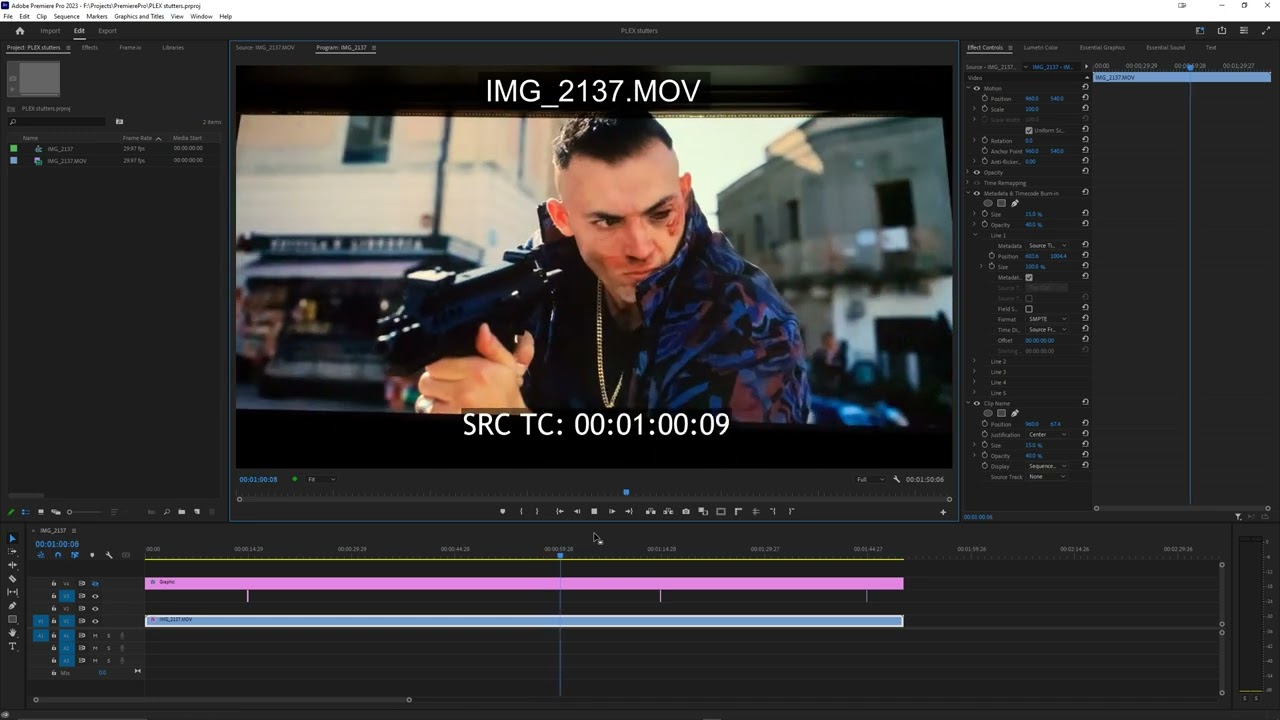

Video recording of Premiere Pro analysis of recording I made of playback using iPhone - I play through the entire 2 minutes clip first, then go back and forth through the three glitch points manually and also single step through them.
Recorded from live playback on projection screen using iPhone XS Max
Playback was on Sony VPL-VW360ES in BT2020 HDR10 mode @ 23.96FPS in 4K
Server and Shield are hardwired using Cat5E Gigabit Ethernet network.
Horrible glitches and hiccups very noticeable during entire movie playback making watching on Shield/PLEX
This 2 minute clip contains 3 separate glitches - on slow motion analysis there appears to be two “frame freeze” events where a single frame stops moving for an amount of time, and one apparent “frame skipping” event where the car appears to jump from one position to another.. there were multiple more extremely obvious all throughout the movie every few seconds.
The same problems were noticed on other 4K movies during playback.
I had to stop the movie multiple times to try and fix the problem
- shutdown/restarted PLEX app - glitches remained after resuming playback
- shutdown/restarted entire Shield - glitches remained after resuming playback

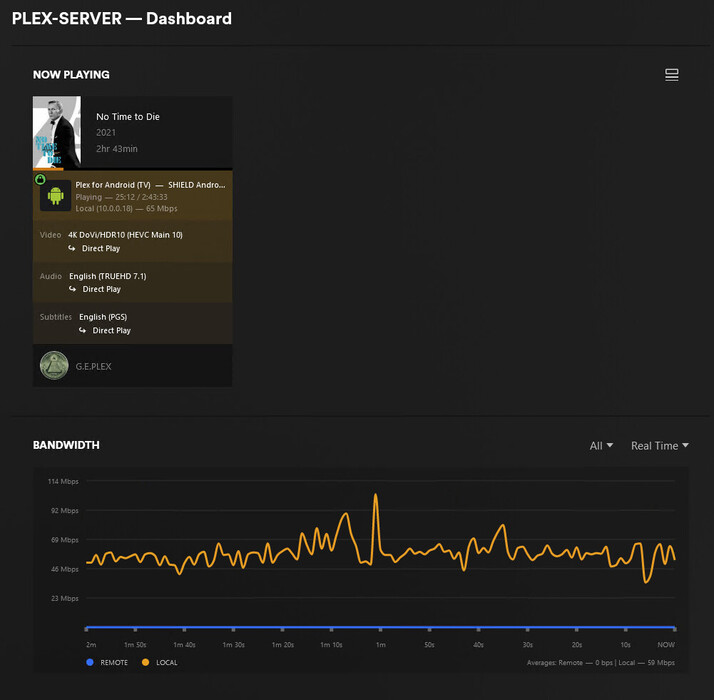

Server dashboard while playing
Server details
Details of No Time To Die file
General
Complete name : E:\Media 2\Video\MKVs\Bluray\Movie\Individual\No Time to Die\No Time to Die (2021).mkv
Format : Matroska
Format version : Version 2
File size : 68.7 GiB
Duration : 2 h 43 min
Overall bit rate mode : Variable
Overall bit rate : 60.1 Mb/s
Movie name : No Time to Die
Encoded date : UTC 2023-01-20 09:47:26
Writing application : MakeMKV v1.17.2 win(x64-release)
Writing library : libmakemkv v1.17.2 (1.3.10/1.5.2) win(x64-release)
Cover : Yes
Attachments : cover.jpg
Video
ID : 1
ID in the original source medium : 4113 (0x1011)
Format : HEVC
Format/Info : High Efficiency Video Coding
Format profile : Main 10@L5.1@High
HDR format : Dolby Vision, Version 1.0, dvhe.07.06, BL+EL+RPU, Blu-ray compatible / SMPTE ST 2086, HDR10 compatible
Codec ID : V_MPEGH/ISO/HEVC
Duration : 2 h 43 min
Bit rate : 56.6 Mb/s
Width : 3 840 pixels
Height : 2 160 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 23.976 (24000/1001) FPS
Color space : YUV
Chroma subsampling : 4:2:0 (Type 2)
Bit depth : 10 bits
Bits/(Pixel*Frame) : 0.285
Stream size : 64.7 GiB (94%)
Language : English
Default : No
Forced : No
Color range : Limited
Color primaries : BT.2020
Transfer characteristics : PQ
Matrix coefficients : BT.2020 non-constant
Mastering display color primaries : Display P3
Mastering display luminance : min: 0.0001 cd/m2, max: 1000 cd/m2
Maximum Content Light Level : 1000 cd/m2
Maximum Frame-Average Light Level : 901 cd/m2
Original source medium : Blu-ray
Audio #1
ID : 2
ID in the original source medium : 4352 (0x1100)
Format : MLP FBA 16-ch
Format/Info : Meridian Lossless Packing FBA with 16-channel presentation
Commercial name : Dolby TrueHD with Dolby Atmos
Codec ID : A_TRUEHD
Duration : 2 h 43 min
Bit rate mode : Variable
Bit rate : 3 057 kb/s
Maximum bit rate : 5 397 kb/s
Channel(s) : 8 channels
Channel layout : L R C LFE Ls Rs Lb Rb
Sampling rate : 48.0 kHz
Frame rate : 1 200.000 FPS (40 SPF)
Bit depth : 24 bits
Compression mode : Lossless
Stream size : 3.49 GiB (5%)
Title : Surround 7.1
Language : English
Default : Yes
Forced : No
Original source medium : Blu-ray
Number of dynamic objects : 11
Bed channel count : 1 channel
Bed channel configuration : LFE
Audio #2
ID : 3
ID in the original source medium : 4352 (0x1100)
Format : AC-3
Format/Info : Audio Coding 3
Commercial name : Dolby Digital
Codec ID : A_AC3
Duration : 2 h 43 min
Bit rate mode : Constant
Bit rate : 448 kb/s
Channel(s) : 6 channels
Channel layout : L R C LFE Ls Rs
Sampling rate : 48.0 kHz
Frame rate : 31.250 FPS (1536 SPF)
Compression mode : Lossy
Stream size : 524 MiB (1%)
Title : Surround 5.1
Language : English
Service kind : Complete Main
Default : No
Forced : No
Original source medium : Blu-ray
Text #1
ID : 4
ID in the original source medium : 4768 (0x12A0)
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Duration : 2 h 39 min
Bit rate : 35.4 kb/s
Count of elements : 4296
Stream size : 40.4 MiB (0%)
Language : English
Default : No
Forced : No
Original source medium : Blu-ray
Text #2
ID : 6
ID in the original source medium : 4770 (0x12A2)
Format : PGS
Codec ID : S_HDMV/PGS
Codec ID/Info : Picture based subtitle format used on BDs/HD-DVDs
Duration : 2 h 15 min
Bit rate : 449 b/s
Count of elements : 95
Stream size : 444 KiB (0%)
Language : English
Default : No
Forced : No
Original source medium : Blu-ray
Menu
00:00:00.000 : en:Chapter 01
00:07:00.837 : en:Chapter 02
00:12:06.142 : en:Chapter 03
00:18:16.095 : en:Chapter 04
00:27:19.179 : en:Chapter 05
00:32:48.591 : en:Chapter 06
00:43:55.174 : en:Chapter 07
00:57:52.844 : en:Chapter 08
01:04:15.601 : en:Chapter 09
01:13:15.766 : en:Chapter 10
01:22:37.827 : en:Chapter 11
01:33:58.382 : en:Chapter 12
01:41:17.362 : en:Chapter 13
01:52:46.593 : en:Chapter 14
01:58:39.779 : en:Chapter 15
02:05:43.994 : en:Chapter 16
02:14:04.202 : en:Chapter 17
02:24:08.640 : en:Chapter 18
02:29:19.659 : en:Chapter 19
02:37:01.161 : en:Chapter 20
might seem like a waste of money as you will not use the DV with a projetor, but it does not stutter decoding DV and displaying HDR.
