Server Version#:1.19.4.2935-79e214ead
Player Version#:4.30.2
Every version of the movie detailed below begins to pixelate and break up within the first 3 minutes. This is the only movie the system seems to have this issue with out of hundreds of movies (.mkv, .avi, etc, etc). All four versions of the movie play absolutely well through Plex on my PC. The problem only occurs when played through the Tizen app on my Samsung Q55Q7FAMW QLED smart TV.
Versions of the movie that have had the problem are:
Greyhound.2020.proper.1080p.web.h264-trump.mkv 7,281,681 KB
Greyhound.1080p.ATVp.WEB-DL.DDP5.1.H.264-EVO 7.5 GB
Greyhound.2020.1080p.WEB-DL.DDP5.1.Atmos.H.264-CMRG 7.51 GB
Greyhound.2020.REPACK.1080p.WEB.H264-SECRECY 7.97 GB
The Plex server is a NAS (Xeon E3-1240v6) running at 3.7Ghz under virtually no load (CPU ranging 2~6%, disk defragmented and utilization < 10%, 24% of 16 GB ECC RAM). O/S is Synology DSM 6.2.2-24922 Update 4 with 47% storage free of 62.8 TB.
I am experiencing the exact same issue. At first I thought it might be related to the audio format of the files, but after testing multiple versions I guess this is not the case. Did you find a solution to this problem in the meantime?
Sorry - no luck in finding a solution.
Please show the full contents of the Plex XML info of any of those files.
(Don’t post the URL to the XML!)
Monitor your Plex Dashboard during playback.
Is the video transcoded?
Are subtitles in use?
Which playback device and software is used?
Video is transcoded (I think).
Device is Tizen (TV QA55Q7FAM).
Profile is Samsung
play state for /library/metadata/156466.
Statistics: (dvaiz5wstgfogvi7qv1s66bq) Reporting active playback in state 0 of type 1 (scrobble: 0) for account 1
Completed: [192.168.0.119:58828] 200 GET /:/timeline?ratingKey=156466&key=%2Flibrary%2Fmetadata%2F156466&playbackTime=1380844&playQueueItemID=156466&state=playing&hasMDE=1&time=1422000&duration=5502000(9live) GZIP 1ms 497 bytes (pipelined: 147)
Auth: authenticated user 1 as Rhubarb@home
Request: [192.168.0.119:58828] (Allowed Network (Subnet)))] GET /:/timeline?ratingKey=156466&key=%2Flibrary%2Fmetadata%2F156466&playbackTime=1390850&playQueueItemID15456&state-playing&hasMDE=1&time=1432000&duration=5502000 (9 live) GZIP Signed-in Token (Rhubarb@home)
…

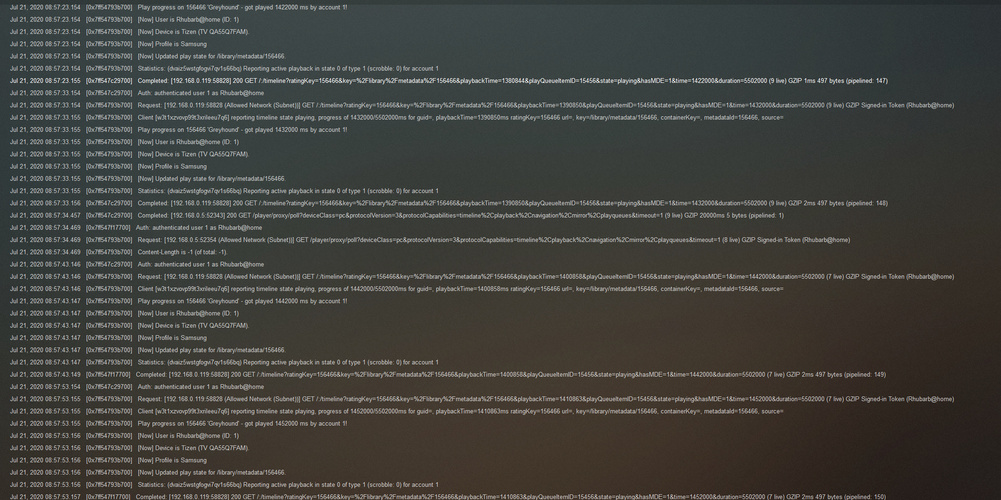

screen capture:
Sorry, this is not what I was after. Please follow my link above.
Following, exact same issue here, no matter which version of the movie.
/volume1/video/Movies - Period based/Greyhound.2020.PROPER.1080p.WEB.h264-TRUMP/greyhound.2020.proper.1080p.web.h264-trump.mkv
Media
Duration 1:31:42
Bitrate 10836 kbps
Width 1920
Height 802
Aspect Ratio 2.35
Video Resolution 1080p
Container MKV
Video Frame Rate 24p
Video Profile high
Part
Duration 1:31:42
File greyhound.2020.proper.1080p.web.h264-trump.mkv
Size 6.94 GB
Container MKV
Video Profile high
Codec H264
Bitrate 10066 kbps
Language English
Bit Depth 8
Chroma Location topleft
Chroma Subsampling 4:2:0
Coded Height 816
Coded Width 1920
Color Primaries bt709
Color Range tv
Color Space bt709
Color Trc bt709
Frame Rate 23.976 fps
Height 802
Level 4.0
Profile high
Ref Frames 5
Scan Type progressive
Width 1920
Display Title 1080p (H.264)
Extended Display Title 1080p (H.264)
Codec EAC3
Channels 6
Bitrate 768 kbps
Language English
Audio Channel Layout 5.1(side)
Sampling Rate 48000 Hz
Display Title English (EAC3 5.1)
Extended Display Title English (EAC3 5.1)
Codec SRT
Language العربية
Title العربية
Display Title العربية (SRT)
Extended Display Title العربية (SRT)
Codec SRT
Language български език
Title български
Display Title български език (SRT)
Extended Display Title български (български език SRT)
Codec SRT
Language Česky
Title Čeština
Display Title Česky (SRT)
Extended Display Title Čeština (Česky SRT)
Codec SRT
Language Dansk
Title dansk
Display Title Dansk (SRT)
Extended Display Title dansk (SRT)
Codec SRT
Language Deutsch
Title Deutsch
Display Title Deutsch (SRT)
Extended Display Title Deutsch (SRT)
Codec SRT
Language Ελληνικά
Title Ελληνικά
Display Title Ελληνικά (SRT)
Extended Display Title Ελληνικά (SRT)
Codec SRT
Language English
Title English
Display Title English (SRT)
Extended Display Title English (SRT)
Codec SRT
Language English
Title English (SDH)
Display Title English (SRT)
Extended Display Title English (SDH) (SRT)
Codec SRT
Language Español
Title Español (Latinoamérica)
Display Title Español (SRT)
Extended Display Title Español (Latinoamérica) (SRT)
Codec SRT
Language Español
Title Español (España)
Display Title Español (SRT)
Extended Display Title Español (España) (SRT)
Codec SRT
Language eesti, eesti keel
Title eesti
Display Title eesti, eesti keel (SRT)
Extended Display Title eesti (eesti, eesti keel SRT)
Codec SRT
Language Suomi
Title Suomi
Display Title Suomi (SRT)
Extended Display Title Suomi (SRT)
Codec SRT
Language Français
Title Français (France)
Display Title Français (SRT)
Extended Display Title Français (France) (SRT)
Codec SRT
Language Français
Title Français (Canada)
Display Title Français (SRT)
Extended Display Title Français (Canada) (SRT)
Codec SRT
Language עברית
Title עברית
Display Title עברית (SRT)
Extended Display Title עברית (SRT)
Codec SRT
Language हिन्दी, हिंदी
Title हिन्दी
Display Title हिन्दी, हिंदी (SRT)
Extended Display Title हिन्दी (हिन्दी, हिंदी SRT)
Codec SRT
Language Magyar
Title magyar
Display Title Magyar (SRT)
Extended Display Title magyar (SRT)
Codec SRT
Language Bahasa Indonesia
Title Bahasa Indonesia
Display Title Bahasa Indonesia (SRT)
Extended Display Title Bahasa Indonesia (Bahasa Indonesia SRT)
Codec SRT
Language Italiano
Title Italiano
Display Title Italiano (SRT)
Extended Display Title Italiano (SRT)
Codec SRT
Language 日本語
Title 日本語
Display Title 日本語 (SRT)
Extended Display Title 日本語 (SRT)
Codec SRT
Language lietuvių kalba
Title lietuvių
Display Title lietuvių kalba (SRT)
Extended Display Title lietuvių (lietuvių kalba SRT)
Codec SRT
Language latviešu valoda
Title latviešu
Display Title latviešu valoda (SRT)
Extended Display Title latviešu (latviešu valoda SRT)
Codec SRT
Language bahasa Melayu, بهاس ملايو
Title Bahasa Melayu
Display Title bahasa Melayu, بهاس ملايو (SRT)
Extended Display Title Bahasa Melayu (bahasa Melayu, بهاس ملايو SRT)
Codec SRT
Language Nederlands
Title Nederlands
Display Title Nederlands (SRT)
Extended Display Title Nederlands (SRT)
Codec SRT
Language Norsk
Title norsk
Display Title Norsk (SRT)
Extended Display Title norsk (SRT)
Codec SRT
Language polski
Title polski
Display Title polski (SRT)
Extended Display Title polski (SRT)
Codec SRT
Language Português
Title Português
Display Title Português (SRT)
Extended Display Title Português (SRT)
Codec SRT
Language Português
Title Português (Brasil)
Display Title Português (SRT)
Extended Display Title Português (Brasil) (SRT)
Codec SRT
Language русский язык
Title Русский
Display Title русский язык (SRT)
Extended Display Title Русский (русский язык SRT)
Codec SRT
Language slovenčina
Title Slovenčina
Display Title slovenčina (SRT)
Extended Display Title Slovenčina (SRT)
Codec SRT
Language slovenščina
Title slovenščina
Display Title slovenščina (SRT)
Extended Display Title slovenščina (SRT)
Codec SRT
Language Svenska
Title Svenska
Display Title Svenska (SRT)
Extended Display Title Svenska (SRT)
Codec SRT
Language தமிழ்
Title தமிழ்
Display Title தமிழ் (SRT)
Extended Display Title தமிழ் (SRT)
Codec SRT
Language తెలుగు
Title తెలుగు
Display Title తెలుగు (SRT)
Extended Display Title తెలుగు (SRT)
Codec SRT
Language ไทย
Title ไทย
Display Title ไทย (SRT)
Extended Display Title ไทย (SRT)
Codec SRT
Language українська
Title українська
Display Title українська (SRT)
Extended Display Title українська (SRT)
Codec SRT
Language Tiếng Việt
Title Tiếng Việt
Display Title Tiếng Việt (SRT)
Extended Display Title Tiếng Việt (Tiếng Việt SRT)
Codec SRT
Language 中文
Title 廣東話
Display Title 中文 (SRT)
Extended Display Title 廣東話 (中文 SRT)
Codec SRT
Language 中文
Title 中文（繁體）
Display Title 中文 (SRT)
Extended Display Title 中文（繁體） (中文 SRT)
Codec SRT
Language 中文
Title 中文（简体）
Display Title 中文 (SRT)
Extended Display Title 中文（简体） (中文 SRT)I got the media info using my PC’s PlexWeb App interrogation of the server (Supermicro X11SSL-CF with Xeon E3-1240-V6 cpu, 16GB ECC memory, running Synology’s SHR under DSM 6.2.2-24922 u4) (xpenology bootloader). I don’t think that my system is capable of hw transcoding as the E3-1240v6 doesn’t support it.
I can’t currently access the TV (otherwise engaged), but from memory, subtitles were not turned on when the output was being sent to the Samsung Q55QA7FAMW.
Hope that answers your questions.
Video transcoding is probably not necessary. Only audio transcoding, because the Samsung will probably not play EAC3 audio.
Another idea: some Samsung TVs have issues when there are too many subtitle streams in a file.
Use MKVtoolnixGUI to remove all subtitle languages from the MKV file, which you don’t use.
Ripping out all the subtitles but English has fixed my issue. Hope it solves the OPer
@OttoKerner: Yes - after running MKVtoolnixGUI to remove all but the English subtitles my Samsung QA55Q7FAM had no problems displaying the movie. Thanks for your assistance.
Have now came across the same issue playing the Netflix TV show ‘Cursed’ The show plays correctly from my NAS (xpenology running DSM6.2.2-24922u4) PMS through Plex on all other devices, except from my Samsung TV Plex (Tizen 4.29.6). Again this ‘Cursed’ media is loaded with subtitles and it seems that this is the cause of the problem.
I’m not happy that the Samsung Tizen app is again exhibiting this problem when other devices can play the media correctly. Is there any action being taken to modify the Samsung Tizen app to rectify this issue? It’s not right that I have to modify my media to get it to play correctly on the Samsung smart tv when the same media is suitable to play on other devices.
BTW, my NAS server is only running at 3~5% CPU when playing two streams of TV episodes, including ‘Cursed’, S01e01.
9
I understand that Samsung has been alerted to this issue. I am told this is on their end.
Does something change if you enable the “preview” app?
Thanks for this. I haven’t tried the early preview yet, but my son has on same TV and he says it works perfectly. Will try myself in about 20 minutes.
Thanks for this assistance.
Rhubarb
