Unable to see NFS mount in PMS

Plex Media Server Desktops & Laptops
1

Server Version#: 1.21.0.3711
Software: Ubuntu 20.04.01 LTS, 64 bit
GNOME-version 3.63.3

I am trying to setup libraries from NFS share (synology) on local network. Following this guide

I am able to mount the share and can see the folder in terminal using ls /nas/movies. But the share is not visible in my PMS when I try to add the folder.

When I try to use the command “sudo chmod 755 /nas/*” It says operation not allowed, dunno if this means anything or if the command is crucial?
Fairly new to linux, dunno if this has to do with permissions?

2

The command is

sudo chmod -R 755 /nas

The -R tells the command to apply the change to the folder and recursively to all subfolders.

3

To followup from Tom,

What didn’t go as expected?

4

It says operation not allowed to all folders

5

Tunarb,

How did you export the shared folder on the Syno? What are the NFS export permissions?

What mount options did you use?

1 Like
6

On Syno:
Host: my server ip 192.168.0.122
Privilege: read/write
Squash: Map root to admin
Security: sys
Enable asynchronous
Allow user acces to mounted subfolders

NFS and NFSv4.1-support activated too.

Everything else on my server i followed your guide, so not sure if I have to change anything else on my PMS machine?

7

A few changes and info

  1. On Synology, admin is not privileged at the Linux level. It’s a plain user account only their software is sensitive to.

  2. I use the Syno as an extension to my Linux box.

  3. NFS export
    a. Wildcard the export rule (*)
    b. No root squash
    c. Async
    d. Unprivileged ports
    e. Access to mounted subdirs

  4. Host mount:

syno:/volume1/movies /nas/movies defaults,auto,vers=4,sec=sys,nofail,bg 0 0

You can add rsize= and wsize= if you need to for perf.

Biggest change is to remove the squash.

8

Thx for the quick reply Chuck :blush:

It seems I cannot mount the drives now, an incorrect mount option was specified.

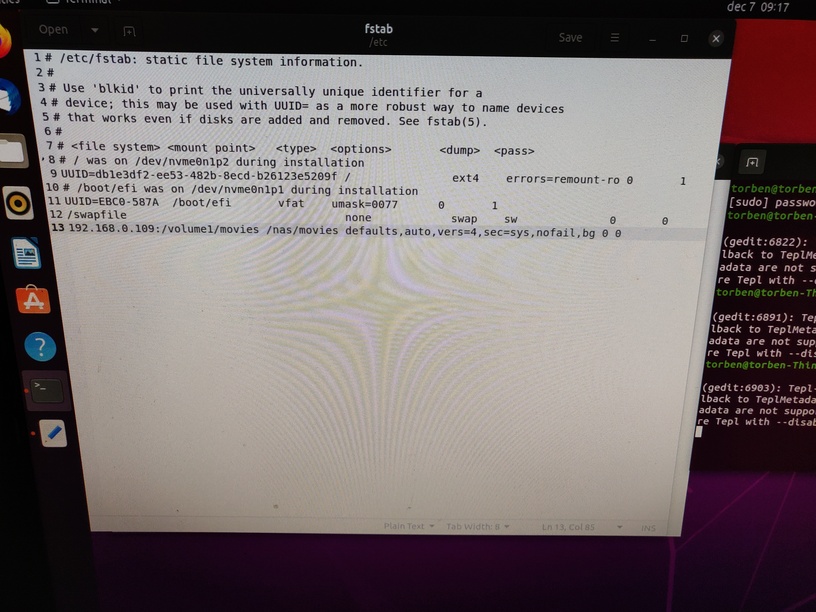

My /etc/fstab looks like this now

IMG_20201207_091702
IMG_20201207_091702816×612 159 KB

And not sure how to write the wildcard rule, can you show example? The IP of the Ubuntu machine is 192.168.0.122

Add images

9

You export the NFS share from the Synology.
This is where you create the export rule.

Screenshot from 2020-12-07 12-53-46
Screenshot from 2020-12-07 12-53-46854×586 49.6 KB

I can now mount:

192.168.0.23:/volume1/animated /nas/animated nfs defaults,auto,rw,async,nofail,bg 0 0

**PS: I forgot the “nfs” field in my example to you last night (the hour was late. I apologize)

10

Nice, thank you. Able to try it tomorrow :blush:

11

Oh well, able to mount drive and see subfolders when i use ls /nas/movies. Can even run sudo chmod 755 /nas and no error codes.
But when i run PMS, it still only sees local folders. Really don’t understand this, don’t have a problem seing the NAS on my raspberry pi 4 server, running OMV 5 and docker. Will it help to use CIFS instead?

12

Can also mount a cifs share I have on a WD my cloud and see the share in terminal using ls, but also not visible in PMS. So weird, think I will try docker and if fail maybe I need to surrender and go with Windows :slightly_frowning_face:

13

Update. Got it working with plex in docker, setting it up with portainer. Of course not set up as I would have liked, but it works. Thx for the advice, really helped me setting up the share.
