WinTV QuadHD (PCI-E) not found Ubuntu Server 20.04

Plex Media Server Desktops & Laptops
1

Recently upgraded to Ubuntu Server 20.04. Using PMS 1.19.1.2701 I cannot see or add my WinTV QuadHD PCI-E card under Live TV & DVR setup. I don’t know if it’s an issue is with Hauppauge or Plex.

DMESG:
Sat Apr 25 12:07:58 2020] cx23885: cx23885 driver version 0.0.4 loaded
[Sat Apr 25 12:07:58 2020] cx23885 0000:29:00.0: enabling device (0000 -> 0002)
[Sat Apr 25 12:07:58 2020] cx23885: CORE cx23885[0]: subsystem: 0070:6a18, board: Hauppauge WinTV-QuadHD-ATSC [card=57,autodetected]
[Sat Apr 25 12:07:58 2020] cx23885: cx23885[0]: hauppauge eeprom: model=165100
[Sat Apr 25 12:07:58 2020] cx25840 11-0044: cx23888 A/V decoder found @ 0x88 (cx23885[0])
[Sat Apr 25 12:07:59 2020] cx25840 11-0044: loaded v4l-cx23885-avcore-01.fw firmware (16382 bytes)
[Sat Apr 25 12:07:59 2020] cx23885: cx23885_dvb_register() allocating 1 frontend(s)
[Sat Apr 25 12:07:59 2020] cx23885: cx23885[0]: cx23885 based dvb card
[Sat Apr 25 12:07:59 2020] cx23885: dvb_register(): board=57 port=1
[Sat Apr 25 12:07:59 2020] dvbdev: DVB: registering new adapter (cx23885[0])
[Sat Apr 25 12:07:59 2020] cx23885 0000:29:00.0: DVB: registering adapter 0 frontend 0 (LG Electronics LGDT3306A VSB/QAM Frontend)…
[Sat Apr 25 12:07:59 2020] cx23885: cx23885_dvb_register() allocating 1 frontend(s)
[Sat Apr 25 12:07:59 2020] cx23885: cx23885[0]: cx23885 based dvb card
[Sat Apr 25 12:07:59 2020] cx23885: dvb_register(): board=57 port=2
[Sat Apr 25 12:07:59 2020] dvbdev: DVB: registering new adapter (cx23885[0])
[Sat Apr 25 12:07:59 2020] cx23885 0000:29:00.0: DVB: registering adapter 1 frontend 0 (LG Electronics LGDT3306A VSB/QAM Frontend)…
[Sat Apr 25 12:07:59 2020] cx23885: cx23885_dev_checkrevision() Hardware revision = 0xd0
[Sat Apr 25 12:07:59 2020] cx23885: cx23885[0]/0: found at 0000:29:00.0, rev: 4, irq: 39, latency: 0, mmio: 0xfc600000
[Sat Apr 25 12:07:59 2020] cx23885 0000:2a:00.0: enabling device (0000 -> 0002)
[Sat Apr 25 12:07:59 2020] cx23885: CORE cx23885[1]: subsystem: 0070:6b18, board: Hauppauge WinTV-QuadHD-ATSC [card=57,autodetected]
[Sat Apr 25 12:07:59 2020] cx23885: cx23885[1]: hauppauge eeprom: model=165101
[Sat Apr 25 12:07:59 2020] cx25840 14-0044: cx23888 A/V decoder found @ 0x88 (cx23885[1])
[Sat Apr 25 12:08:00 2020] cx25840 14-0044: loaded v4l-cx23885-avcore-01.fw firmware (16382 bytes)
[Sat Apr 25 12:08:00 2020] cx23885: cx23885_dvb_register() allocating 1 frontend(s)
[Sat Apr 25 12:08:00 2020] cx23885: cx23885[1]: cx23885 based dvb card
[Sat Apr 25 12:08:00 2020] cx23885: dvb_register(): board=57 port=1
[Sat Apr 25 12:08:00 2020] dvbdev: DVB: registering new adapter (cx23885[1])
[Sat Apr 25 12:08:00 2020] cx23885 0000:2a:00.0: DVB: registering adapter 2 frontend 0 (LG Electronics LGDT3306A VSB/QAM Frontend)…
[Sat Apr 25 12:08:00 2020] cx23885: cx23885_dvb_register() allocating 1 frontend(s)
[Sat Apr 25 12:08:00 2020] cx23885: cx23885[1]: cx23885 based dvb card
[Sat Apr 25 12:08:00 2020] cx23885: dvb_register(): board=57 port=2
[Sat Apr 25 12:08:00 2020] dvbdev: DVB: registering new adapter (cx23885[1])
[Sat Apr 25 12:08:00 2020] cx23885 0000:2a:00.0: DVB: registering adapter 3 frontend 0 (LG Electronics LGDT3306A VSB/QAM Frontend)…
[Sat Apr 25 12:08:00 2020] cx23885: cx23885_dev_checkrevision() Hardware revision = 0xd0
[Sat Apr 25 12:08:00 2020] cx23885: cx23885[1]/0: found at 0000:2a:00.0, rev: 4, irq: 29, latency: 0, mmio: 0xfc400000

LSPCI:
29:00.0 Multimedia video controller: Conexant Systems, Inc. CX23887/8 PCIe Broadcast Audio and Video Decoder with 3D Comb (rev 04)
2a:00.0 Multimedia video controller: Conexant Systems, Inc. CX23887/8 PCIe Broadcast Audio and Video Decoder with 3D Comb (rev 04)

Thank you!

1 Like
2

20.04 was just released 2 days ago.

There will be bugs. Several of us have already found bugs with the OS. It’s the nature of the beast.

This is what happens when adopting too early; getting ahead of the distro and the manufacturer’s support software.

Check with the manufacturer first and verify they support the new driver structure for 20.04

3

Sounds good, Thank you!

4

Sorry I posted prematurely. I added the plex user to the “video” group and it appears to be working as expected. I remember having to do that awhile back. Below is what I did in case anyone needs it.
“sudo usermod -a -G video plex” then restart PMS.

2 Likes
5

Thanks, this helped me out on 19.10

6

May I ask the Linux device name for the tuner as shown in /dev ?

7

/dev/dvb/adapter0
/dev/dvb/adapter1
/dev/dvb/adapter2
/dev/dvb/adapter3

8

I am using 20.04 and added the same card. I did “sudo usermod -a -G video plex” but I am still getting the circle of death from Plex. I did open a new topic before I saw this one. Maybe I should leave the other one open as I appear to be having a different issue.

Version 1.19.3.2764

Ubuntu 20.04 upgraded from 19.04.

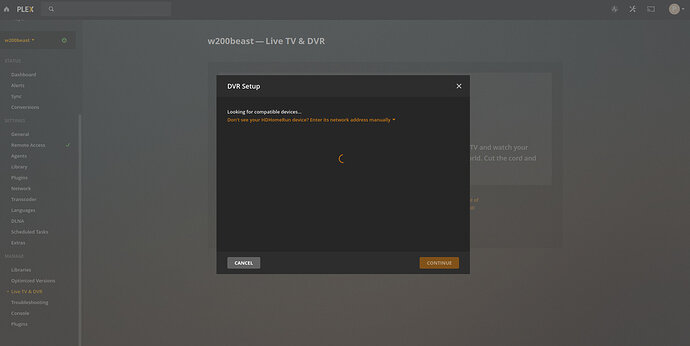

I’d gladly take suggestions on how to get the WinTV-quadHD (PCI-E) to be recognized in Plex ion Ubuntu 20.04, please. I just get the circle of death:

Screenshot from 2020-05-18 13-41-51
Screenshot from 2020-05-18 13-41-51998×501 54.4 KB

9

@plex_forge_name just a thought, did you restart PMS after adding the group? type id plex to verify plex is now indeed a member of the “video” group.

10

Absolutely. :slight_smile: I even, just for the sake of covering all tracks as best I knew how, restarted the physical machine. I appreciate the response.

I have looked at the syslog files and the logs in /var/lib/plexmediaserver/Library/Application\ Support/Plex\ Media\ Server/ .

The PMS log files show nothing when I click on “Set up plex dvr.” It’s like I never clicked the button.

11

Weird, I’ve had no issues with 20.04 and Plex. I did do a clean install vs. an upgrade, don’t know if that would make a difference for some reason…

12

Just to clarify: clean install of 20.04?

13

Correct.

14

Thank you for posting this! I’ve been trying to solve the same issue with 20.04 with a WinTV QuadHD for three days.

15

No idea if this is relevant to the issue or if this has been tried. I have a QuadHD with Ubuntu server. I followed the driver instructions on Hauppauge’s support page for Linux drivers and had no issues with Plex recognizing the tuners.

https://www.hauppauge.com/pages/support/support_linux.html

Thought I would pass along in case it helps.

wgr

16

This thread was “solved” long ago.
Please do not continue to ‘pile on’.

Closing in favor of someone creating a new thread elsewhere
