No images on Live TV Guide

[D00B]

Server Version#: 1.27.0.5897
Player Version#: 4.83.2
Tuner Make/Model: Vbox TV Gateway 4134
Guide/Lineup name:
Using XMLTV?: Yes
Channel number/Name:

I’m sorry if this has been covered and resolved before, I’m not able to find it if it has.
I have recently installed the VBox Satellite gateway. This box works fine and I’ve added it to plex.

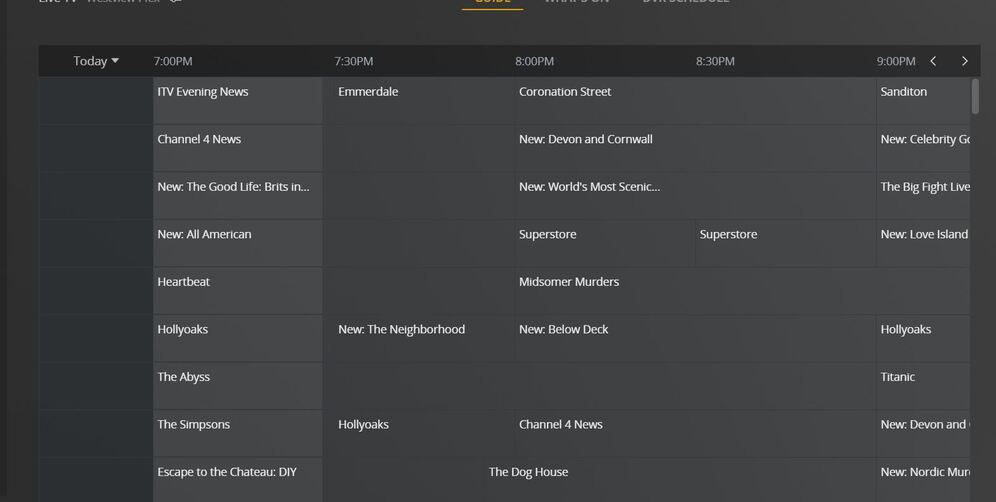

The shows play as expected but I do not have ANY channel images. It’s difficult to work out what channel is which.
I can’t see how I can add the channel images to the guide.
All images show in the DVR settings page.

Any help would be greatly appreciated.

[OttoKerner]

Those pics will have to come from your XMLTV file. If it contains no or invalid links, you get no station logos.

[D00B]

Thanks for the quick reply OttoKerner.

I specified the XMLTV file on the VBox which has that data. I’ll try again but not specify the xml on the vbox and see where that takes me.

[OttoKerner]

I don’t know this device. I’m not sure the file is accessible to Plex server. Particularly if it’s only accessible by SMB file share or if it’s protected by access credentials.

[D00B]

This is the interface.

[OttoKerner]

Since the web app is loaded per https, your web browser may refuse all content which is not available per https.
But I don’t know if that is really the case.
I’d experiment with replaing the domain name with the local IP of the vbox. At least for the logos path.
