Drivers all installed and showing correctly in modules loaded and plex is discovering it in the logs, but won’t allow me to ‘add it’ ( not showing)
Jun 02, 2017 12:57:41.404 [0x7f2f57418700] INFO - Plex Tuner Service v1.0.0.0 - unknown PC unknown - build:
Jun 02, 2017 12:57:41.404 [0x7f2f57418700] INFO - Linux version: 4.11.3-1.el7.elrepo.x86_64 (#1 SMP Fri May 26 09:19:46 EDT 2017), language: en-US
Jun 02, 2017 12:57:41.404 [0x7f2f57418700] INFO - Processor Intel® Xeon® CPU E5520 @ 2.27GHz
Jun 02, 2017 12:57:41.404 [0x7f2f57418700] INFO - /usr/lib/plexmediaserver/Plex Tuner Service /usr/lib/plexmediaserver/Resources/Tuner/Private /usr/lib/plexmediaserver/Resources/Tuner/Shared 1.7.2.3878-8088811b8 32600 /waitmutex
Jun 02, 2017 12:57:41.376 [0x7f2f628d97c0] INFO - * broker_t::start…
Jun 02, 2017 12:57:41.476 [0x7f2f628d97c0] INFO - * device_manager_t::init.
Jun 02, 2017 12:57:41.476 [0x7f2f628d97c0] INFO - * device_manager_t::init. Initialize provider manager
Jun 02, 2017 12:57:41.476 [0x7f2f628d97c0] INFO - * device_manager_t::init. Initialize all device auxes
Jun 02, 2017 12:57:41.477 [0x7f2f628d97c0] INFO - * dvb_device_factory_t::get_aux_list
Jun 02, 2017 12:57:41.477 [0x7f2f628d97c0] INFO - * tvbutler_aux_t::init
Jun 02, 2017 12:57:41.477 [0x7f2f628d97c0] INFO - * web_server_t::start. Starting web server on port 32600
Jun 02, 2017 12:57:45.822 [0x7f2f56416700] INFO - * web_service_t::process_device_discovery
Jun 02, 2017 12:57:45.822 [0x7f2f56416700] INFO - * device_reactor_t::get_device_list ()
Jun 02, 2017 12:57:45.823 [0x7f2f56416700] INFO - * dvb_device_factory_t::get_device_list ()
Jun 02, 2017 12:57:47.826 [0x7f2f56416700] INFO - * SAT2IP - discover_satip_servers(): no servers found
Jun 02, 2017 12:57:48.231 [0x7f2f56416700] INFO - * v4l::DeviceGetList_impl. getting v4l device list
Jun 02, 2017 12:57:48.231 [0x7f2f56416700] INFO - * v4l::DeviceGetList_impl. Successfully opened frontend /dev/dvb/adapter0/frontend0
Jun 02, 2017 12:57:48.232 [0x7f2f56416700] INFO - * v4l::DeviceGetList_impl. Successfully opened frontend /dev/dvb/adapter1/frontend0
Jun 02, 2017 12:57:48.232 [0x7f2f56416700] INFO - * v4l::DeviceGetList_impl. Successfully opened frontend /dev/dvb/adapter2/frontend0
Jun 02, 2017 12:57:48.232 [0x7f2f56416700] INFO - * v4l::DeviceGetList_impl. Successfully opened frontend /dev/dvb/adapter3/frontend0
Jun 02, 2017 12:57:48.235 [0x7f2f56416700] INFO - * dvb_device_factory_t::get_device_list. Id dvb#v4l#0#/dev/dvb/adapter0/frontend0, Name Silicon Labs Si2168, Standards 3
Jun 02, 2017 12:57:48.235 [0x7f2f56416700] INFO - * dvb_device_factory_t::get_device_list. Id dvb#v4l#0#/dev/dvb/adapter1/frontend0, Name Silicon Labs Si2168, Standards 3
Jun 02, 2017 12:57:48.235 [0x7f2f56416700] INFO - * dvb_device_factory_t::get_device_list. Id dvb#v4l#0#/dev/dvb/adapter2/frontend0, Name Silicon Labs Si2168, Standards 3
Jun 02, 2017 12:57:48.235 [0x7f2f56416700] INFO - * dvb_device_factory_t::get_device_list. Id dvb#v4l#0#/dev/dvb/adapter3/frontend0, Name Silicon Labs Si2168, Standards 3
Jun 02, 2017 12:57:48.235 [0x7f2f56416700] INFO - * onetv_factory::DeviceGetListEx >>
Jun 02, 2017 12:57:48.237 [0x7f2f56416700] INFO - * onetv_factory::DeviceGetListEx. Found device 3599:2
Jun 02, 2017 12:57:48.237 [0x7f2f56416700] INFO - * onetv_factory::DeviceGetListEx. Found device 7531:2
Jun 02, 2017 12:57:48.237 [0x7f2f56416700] INFO - * onetv_factory::DeviceGetListEx. Found device 3599:3
Jun 02, 2017 12:57:48.237 [0x7f2f56416700] INFO - * onetv_factory::DeviceGetListEx. Found device 7531:1
Jun 02, 2017 12:57:48.240 [0x7f405c3ff700] DEBUG - DVR:Grabber: Ignoring (Silicon Labs Si2168) which is an unsupported tuner device.
Jun 02, 2017 12:57:48.240 [0x7f405c3ff700] DEBUG - DVR:Grabber: Ignoring (Silicon Labs Si2168) which is an unsupported tuner device.
Jun 02, 2017 12:57:48.240 [0x7f405c3ff700] DEBUG - DVR:Grabber: Ignoring (Silicon Labs Si2168) which is an unsupported tuner device.
Jun 02, 2017 12:57:48.240 [0x7f405c3ff700] DEBUG - DVR:Grabber: Ignoring (Silicon Labs Si2168) which is an unsupported tuner device.
Si2168 IS the quad tuner which is listed as supported. How do I force it to support it.
I went with it as it has 4 tuners, so a family of 4 shouldn’t really be able to complain…
the joys of day 1 adoption… it currently doesnt work for shares or managed users either.
Yeah, I got excited when I saw it was using/allowing devices other than the HDHomeRun, which is a bit of non-entity in the UK. One of the two listed distributors for them on their website, doesn’t even sell them, and they are damned expensive compared.
There is no real reason for the implementation of the Hauppauge devices not working… I mean, all the drivers and firmware is there, they’ve just decided to ‘block’ certain devices from working, rather than allow me to enable it on the basis that it might not work correctly.
I think there is a known issue for this card, but support for it should be coming in a forthcoming PMS release (I don’t want to say a version or date, because I’m not 100% sure, but it will be soon!)

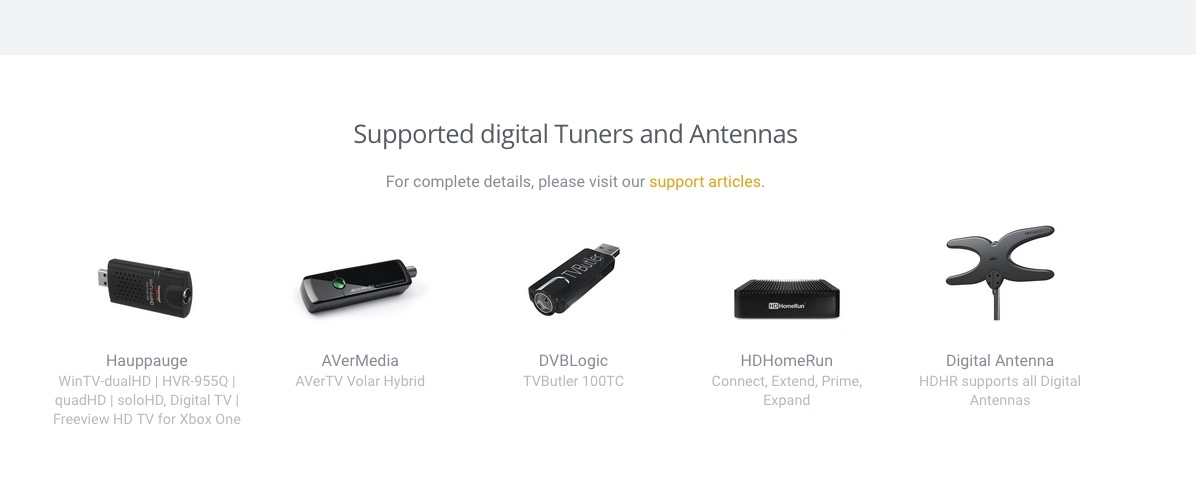

I’d like to hear something from Plex, as it had been listed as supported.
I saw they were aware of a problem with the ATSC (american) card, but maybe they didn’t realise the DVB card for rest of the world, uses a different chip?
It is supported and we’ve done extensive testing with it, in both ATSC and DVB forms.
However, there’s 2 versions of the same card. So two different models for America and two different models for DVB. We only knew about one of them, so we’ve added the second now, and the next server release will have the fix.
For what it’s worth, getting this card working under Linux isn’t the easiest thing to do ever. I have one, and got it working with MythTV a while back - I had to hack in some firmware file and dink around with settings and such in order to get it to work while spewing plenty of errors into my system log on every boot.
I was so fired up when I saw that Plex was going to support this tuner, hope they do it soon!
Any guesses from anyone as to which of these work? (New Zealand Region). I could just get the newer one as a guess, but the older one is actually a lot cheaper for me (I get a discounted price).
Well, I bought the Model 1629 (second link). So will see how that goes, if not I hope Plex are true to their word about it only being a couple of weeks away - they’re pretty good at rolling updates out so good chance I guess!
I went with installing a newer kernel and just adding in the firmware files, as opposed to hacking in the drivers into an older kernel. Seems to work. Discovers it. I don’t really want MythTV as you can’t install it without a GUI (all the setup screens are on the backend but with a gui).
I’m pretty pleased so far, especially as it’s running as a passthrough PCI device on an ESXi running server with CentOS as the VM running Plex.
As and when plex rolls out the next update, I’ll let you know whether I get it running through this virtualised system. I think it’s a pretty interesting setup. Not that I encourage anyone to run plex off a 16 core server… Unless you are using for other things too, as it’s a bit over the top and costs a bomb in electricity.
@ellenby are you saying you got Plex recognising a previously non-supported quad hd card by upgrading the kernel? I thought even if it was all working in Linux, plex still needed to have some changes made?
