Nvidia Shield TV 2019 - Dolby TrueHD not played with Plex native Android TV player

Plex Players Streaming Devices
1

Server Version#: 1.20.4.3517 (Synology DS416play)
Player Version#: 8.9.0.21537 (Nvidia Shield TV 2019)

Audio System : AVR-X1600H (with eARC and full support of Dolby TrueHD / Atmos)
The Shield is directly connected to the audio system.

If I play a TrueHD 7.1 movie, Plex will transcode the movie and I have lags. I I read the same movie with MX Player or VLC, there is no transcode (direct streaming).

I tested with Kodi + Plex add-on and it works like a charm with TrueHD 7.1 with Pass-through enabled.

So, I think TrueHD 7.1 support for Plex Player on Android TV is missing…

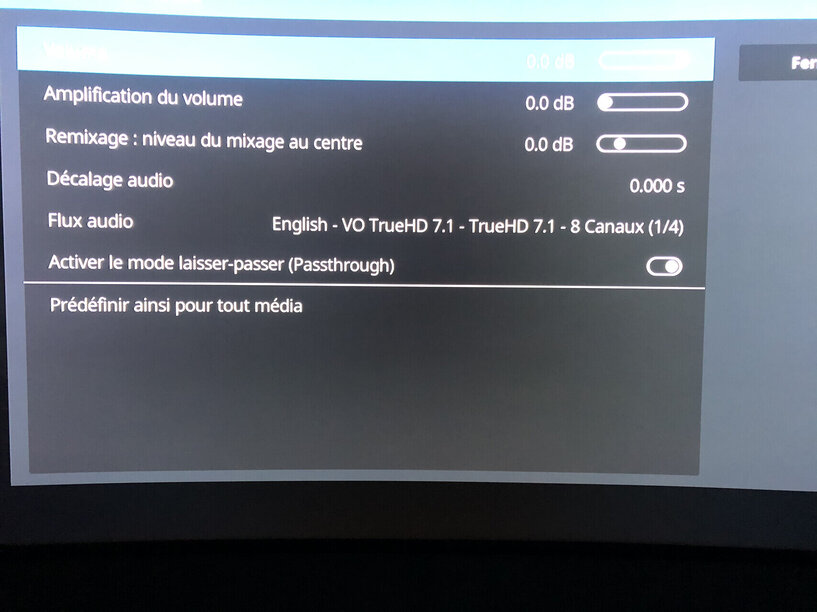

Pass-through supported by Plex add-on in Kodi

IMG_0028
IMG_0028817×612 61.5 KB

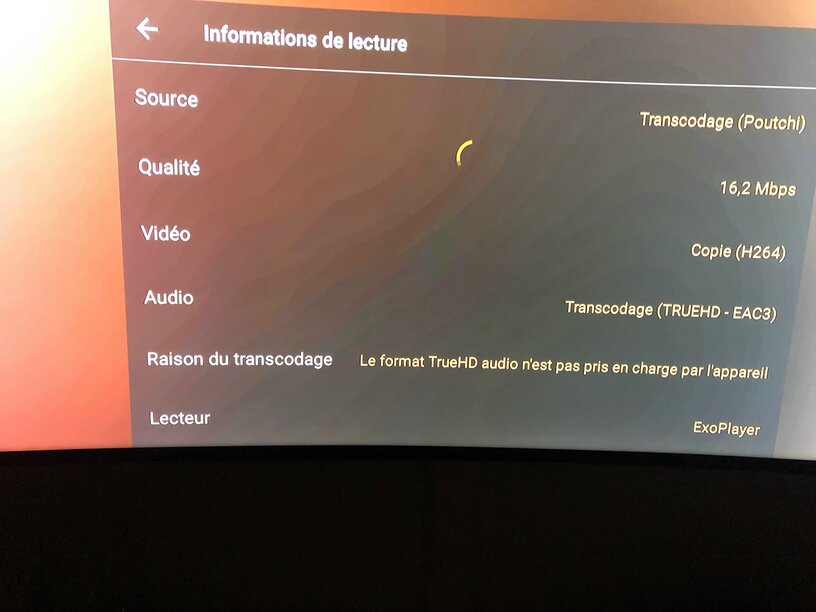

Pass-through not supported by Plex native Android app

IMG_0029
IMG_0029816×612 46.3 KB

2

Set your Plex Media Server to gather debug, not verbose, logs. See Reporting Issues with Plex Media Server for detailed instructions.

Check the audio settings on the Shield:
Device Preferences -> Display & Sound -> Advanced sound settings -> Available Formats = Auto.
Note: Do not change from Auto. Enabling / disabling specific audio codecs results in all audio transcoding.

Check settings in the Plex app on the Shield:

Video Quality
 Adjust automatically = OFF
 Home Streaming = Maximum
 Remote Streaming = Maximum (if Shield is remote to Plex server)

Advanced
 Passthrough = HDMI
 Network Logging = On
 Enable New Player = On

Play a movie with TrueHD audio with subtitles off.

Is the video and/or audio transcoding?

If still transcoding:

  • Let the movie play for ~30 seconds.
  • Stop playback. Wait 1 minute for logs to catch everything.
  • Pull Plex Media Server logs.
  • Pull Plex app logs from Shield. See Android, Android TV, Fire TV Logs. Note 1: Leave Plex app running, otherwise you cannot access the logs. Note 2: Use http, not https, to connect to the Shield to pull logs (http://<shield_ip_address>:32500/logging).
  • Post logs to the thread.
3

Hello,
I followed all your instructions:

  • transcoding with Plex native app is still active
  • transcoding with Kodi / Plex add-on is inactive => direct stream

Here, you cand find the logs.

network_log.txt (58.1 KB) (File removed)

And screenshots of dashboard:

Transcoding with plex native app
Capture

Direct stream with Kodi / Plex
Capture2

4

Issue is still present with the latest versions of player and server…
Why Kodi+Plex allow direct stream and not the native player?
It’s very strange…

It seems to be an issue with Dolby formats (and an old issue of what I can read in this forum…)
With DTS (DTS, DTS-HDMA…) no issue, Plex play with direct stream.
