Ok, that makes sense.
I’ll review that more in detail.
Thanks.
1 Like
Horse Nuggets.
I make ‘Better than source’ DVD material all the time.
(that doesn’t work on HD material… but I make 'em so close to source - it hardly matters - and it absolutely doesn’t matter to me, family or friends - we watch the material - not the bit rate)
NP…

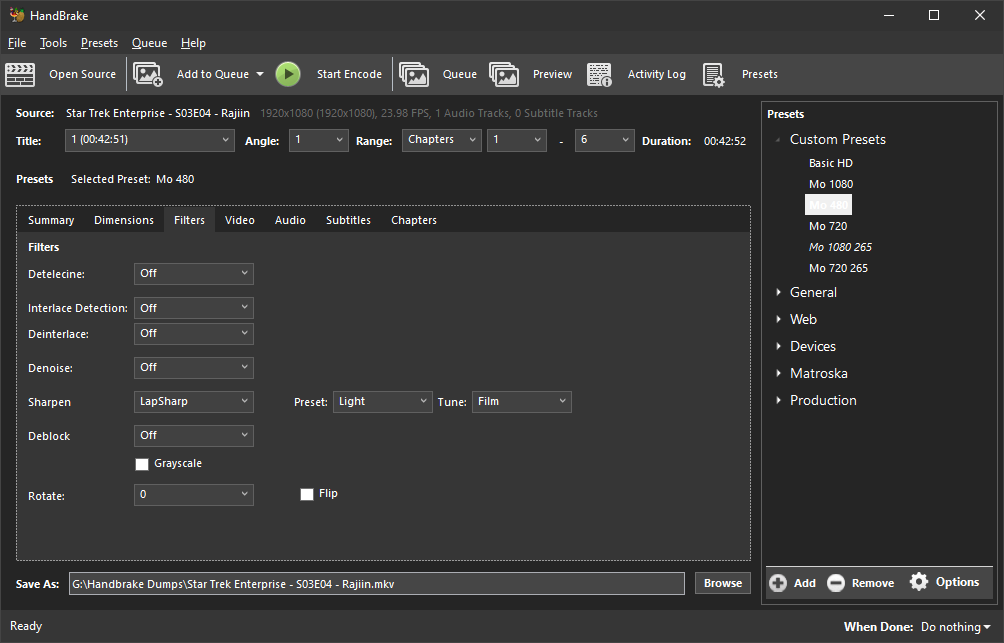

I have made a few adjustments since that guide…
the LapSharp Filter is ‘Light’ with a ‘Film’ tune - unless, of course it’s animation…
I may have raised or lowered the bit rates some - but you should be doing that anyway… I do recommend you try my rates and view honestly - then adjust from there.
1 Like
So I’ve yet to do a single HEVC stream from my old system, and to my old devices.
I processed a DVD rip to h.265.
My first client choked on it. The old Windows 10 App won’t play it. Black screen with audio. I figured as much. It’s old and past due and pulled from the store. Only other option is the web browser. It’s a 32bit system and can’t be upgraded.
1st Gen Chromecast transcodes it back to h.264.
None of the transcodes killed my system thankfully. But that was only on 480 content.
What does MediaInfo look like?
https://mediaarea.net/en/MediaInfo
DVD material to 265 is a waste of time…
You should have converted a DVD using the second part of the guide 'cause it’s very likely you created a file NOTHING can play.
A 265 encode of HD material should look like this:
General
Unique ID : 179768163456714851384189611493570391206 (0x873E16C2785A321B59B1267B45782CA6)
Complete name : D:\Handbrake Dumps\NutDeck\7.15\Attraction (2017) [1080p x265 Dubbed].mkv
Format : Matroska
Format version : Version 4
File size : 2.21 GiB
Duration : 2 h 12 min
Overall bit rate : 2 387 kb/s
Encoded date : UTC 2020-07-14 03:29:37
Writing application : Lavf58.42.100
Writing library : Lavf58.42.100
ErrorDetectionType : Per level 1
Video
ID : 1
Format : HEVC
Format/Info : High Efficiency Video Coding
Format profile : Main 10@L4@Main
Codec ID : V_MPEGH/ISO/HEVC
Duration : 2 h 12 min
Bit rate : 1 956 kb/s
Width : 1 920 pixels
Height : 804 pixels
Display aspect ratio : 2.40:1
Frame rate mode : Variable
Original frame rate : 24.000 FPS
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 10 bits
Stream size : 1.81 GiB (82%)
Writing library : x265 3.3+4-rarbg-30eb4de83092:[Linux][GCC 8.3.1][64 bit] 10bit
Encoding settings : cpuid=1111039 / frame-threads=4 / wpp / no-pmode / no-pme / no-psnr / no-ssim / log-level=2 / input-csp=1 / input-res=1920x804 / interlace=0 / total-frames=0 / level-idc=0 / high-tier=1 / uhd-bd=0 / ref=4 / no-allow-non-conformance / no-repeat-headers / annexb / no-aud / no-hrd / info / hash=0 / no-temporal-layers / open-gop / min-keyint=24 / keyint=250 / gop-lookahead=0 / bframes=4 / b-adapt=2 / b-pyramid / bframe-bias=0 / rc-lookahead=25 / lookahead-slices=4 / scenecut=40 / hist-scenecut=0 / radl=0 / no-splice / no-intra-refresh / ctu=64 / min-cu-size=8 / rect / no-amp / max-tu-size=32 / tu-inter-depth=1 / tu-intra-depth=1 / limit-tu=0 / rdoq-level=2 / dynamic-rd=0.00 / no-ssim-rd / signhide / no-tskip / nr-intra=0 / nr-inter=0 / no-constrained-intra / strong-intra-smoothing / max-merge=3 / limit-refs=3 / limit-modes / me=3 / subme=3 / merange=57 / temporal-mvp / no-frame-dup / no-hme / weightp / no-weightb / no-analyze-src-pics / deblock=0:0 / no-sao / no-sao-non-deblock / rd=4 / selective-sao=0 / no-early-skip / rskip / no-fast-intra / no-tskip-fast / no-cu-lossless / no-b-intra / no-splitrd-skip / rdpenalty=0 / psy-rd=2.00 / psy-rdoq=1.00 / no-rd-refine / no-lossless / cbqpoffs=0 / crqpoffs=0 / rc=abr / bitrate=2000 / qcomp=0.60 / qpstep=4 / stats-write=0 / stats-read=2 / cplxblur=20.0 / qblur=0.5 / ipratio=1.40 / pbratio=1.30 / aq-mode=3 / aq-strength=1.00 / cutree / zone-count=0 / no-strict-cbr / qg-size=32 / no-rc-grain / qpmax=69 / qpmin=0 / no-const-vbv / sar=1 / overscan=0 / videoformat=5 / range=0 / colorprim=2 / transfer=2 / colormatrix=2 / chromaloc=0 / display-window=0 / cll=0,0 / min-luma=0 / max-luma=1023 / log2-max-poc-lsb=8 / vui-timing-info / vui-hrd-info / slices=1 / no-opt-qp-pps / no-opt-ref-list-length-pps / no-multi-pass-opt-rps / scenecut-bias=0.05 / hist-threshold=0.01 / no-opt-cu-delta-qp / no-aq-motion / no-hdr10 / no-hdr10-opt / no-dhdr10-opt / no-idr-recovery-sei / analysis-reuse-level=0 / analysis-save-reuse-level=0 / analysis-load-reuse-level=0 / scale-factor=0 / refine-intra=0 / refine-inter=0 / refine-mv=1 / refine-ctu-distortion=0 / no-limit-sao / ctu-info=0 / no-lowpass-dct / refine-analysis-type=0 / copy-pic=1 / max-ausize-factor=1.0 / no-dynamic-refine / no-single-sei / no-hevc-aq / no-svt / no-field / qp-adaptation-range=1.00 / no-scenecut-aware-qpconformance-window-offsets / right=0 / bottom=0
Language : English
Default : Yes
Forced : No
Color range : Limited
Matrix coefficients : Identity
Audio
ID : 2
Format : AC-3
Format/Info : Audio Coding 3
Commercial name : Dolby Digital
Codec ID : A_AC3
Duration : 2 h 12 min
Bit rate mode : Constant
Bit rate : 384 kb/s
Channel(s) : 6 channels
Channel layout : L R C LFE Ls Rs
Sampling rate : 48.0 kHz
Frame rate : 31.250 FPS (1536 SPF)
Bit depth : 16 bits
Compression mode : Lossy
Stream size : 364 MiB (16%)
Writing library : Lavc58.77.101 ac3_fixed
Language : English
Service kind : Complete Main
Default : Yes
Forced : No
A DVD conversion should look something like this:
General
Unique ID : 104751007406684642662012728849438693650 (0x4ECE4F6869102444CB67955D3B095912)
Complete name : G:\TV - Shows\Billions\Season 05\Billions - S05E01 - The New Decas.mkv
Format : Matroska
Format version : Version 4
File size : 566 MiB
Duration : 59 min 7 s
Overall bit rate : 1 337 kb/s
Encoded date : UTC 2020-05-03 14:02:37
Writing application : Lavf58.42.100
Writing library : Lavf58.42.100
ErrorDetectionType : Per level 1
Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : High@L3
Format settings : CABAC / 4 Ref Frames
Format settings, CABAC : Yes
Format settings, Reference frames : 4 frames
Codec ID : V_MPEG4/ISO/AVC
Duration : 59 min 7 s
Bit rate : 950 kb/s
Width : 720 pixels
Height : 480 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 23.976 (24000/1001) FPS
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.115
Stream size : 392 MiB (69%)
Writing library : x264 core 157 r2935 545de2f
Encoding settings : cabac=1 / ref=3 / deblock=1:0:0 / analyse=0x3:0x113 / me=hex / subme=7 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=12 / lookahead_threads=2 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=2 / b_adapt=1 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=2 / keyint=240 / keyint_min=24 / scenecut=40 / intra_refresh=0 / rc_lookahead=40 / rc=2pass / mbtree=1 / bitrate=950 / ratetol=1.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / cplxblur=20.0 / qblur=0.5 / ip_ratio=1.40 / aq=1:1.00
Language : English
Default : Yes
Forced : No
Color range : Limited
Color primaries : BT.709
Transfer characteristics : BT.709
Matrix coefficients : Identity
matrix_coefficients_Original : BT.709
Audio
ID : 2
Format : AC-3
Format/Info : Audio Coding 3
Commercial name : Dolby Digital
Codec ID : A_AC3
Duration : 59 min 7 s
Bit rate mode : Constant
Bit rate : 384 kb/s
Channel(s) : 6 channels
Channel layout : L R C LFE Ls Rs
Sampling rate : 48.0 kHz
Frame rate : 31.250 FPS (1536 SPF)
Bit depth : 16 bits
Compression mode : Lossy
Delay relative to video : 13 ms
Stream size : 162 MiB (29%)
Title : English
Writing library : Lavc58.77.101 ac3_fixed
Language : English
Service kind : Complete Main
Default : Yes
Forced : No
Text
ID : 3
Format : UTF-8
Codec ID : S_TEXT/UTF8
Codec ID/Info : UTF-8 Plain Text
Duration : 59 min 2 s
Language : English
Default : Yes
Forced : No
Was the material interlaced and if so was it de-interlaced for the encode?
Did you pass through the original audio or did you convert it to a compatible format?
Did you include subs in Handbrake?
Bad idea - Handbrake turns all srt subs into ASS subs - wherein they won’t Direct Play on MANY things… where srt text subs will Direct Play on EVERYTHING (almost).
It took me about 10 years to learn to encode solid material - if this is your maiden voyage and you don’t follow the instructions - good luck and we’ll see ya in about 9 years and 11 months (but it’s very likely I’ll be dead by then…lol)
Maiden voyage, for sure! I set sail on the USS Minnow. It was supposed to be a three hour tour…
I’ll get that info on the mess I created. This should be pretty dang funny.
General
Unique ID : 274415185859694256123053277890656745300 (0xCE72713EC75AD545EB837154CE063754)
Complete name : C:\Users\Administrator\Desktop\DORKNESS_RISING (2008)\DorknessRisking1.mkv
Format : Matroska
Format version : Version 4
File size : 1.04 GiB
Duration : 1 h 45 min
Overall bit rate : 1 415 kb/s
Encoded date : UTC 2020-07-15 15:30:24
Writing application : HandBrake 1.2.2 2019022300
Writing library : Lavf58.20.100
ErrorDetectionType : Per level 1
Video
ID : 1
Format : HEVC
Format/Info : High Efficiency Video Coding
Format profile : Main@L3@Main
Codec ID : V_MPEGH/ISO/HEVC
Duration : 1 h 45 min
Width : 720 pixels
Height : 480 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 23.976 (24000/1001) FPS
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Writing library : x265 2.9:[Windows][GCC 8.2.0][64 bit] 8bit+10bit+12bit
Encoding settings : cpuid=1049071 / frame-threads=3 / numa-pools=8 / wpp / no-pmode / no-pme / no-psnr / no-ssim / log-level=2 / input-csp=1 / input-res=720x480 / interlace=0 / total-frames=0 / level-idc=0 / high-tier=1 / uhd-bd=0 / ref=1 / no-allow-non-conformance / no-repeat-headers / annexb / no-aud / no-hrd / info / hash=0 / no-temporal-layers / open-gop / min-keyint=24 / keyint=240 / gop-lookahead=0 / bframes=3 / b-adapt=0 / b-pyramid / bframe-bias=0 / rc-lookahead=5 / lookahead-slices=0 / scenecut=0 / radl=0 / no-intra-refresh / ctu=32 / min-cu-size=16 / no-rect / no-amp / max-tu-size=32 / tu-inter-depth=1 / tu-intra-depth=1 / limit-tu=0 / rdoq-level=0 / dynamic-rd=0.00 / no-ssim-rd / no-signhide / no-tskip / nr-intra=0 / nr-inter=0 / no-constrained-intra / strong-intra-smoothing / max-merge=2 / limit-refs=0 / no-limit-modes / me=0 / subme=0 / merange=57 / temporal-mvp / no-weightp / no-weightb / no-analyze-src-pics / deblock=0:0 / no-sao / no-sao-non-deblock / rd=2 / early-skip / rskip / fast-intra / no-tskip-fast / no-cu-lossless / no-b-intra / no-splitrd-skip / rdpenalty=0 / psy-rd=2.00 / psy-rdoq=0.00 / no-rd-refine / no-lossless / cbqpoffs=0 / crqpoffs=0 / rc=abr / bitrate=1250 / qcomp=0.60 / qpstep=4 / stats-write=0 / stats-read=2 / cplxblur=20.0 / qblur=0.5 / ipratio=1.40 / pbratio=1.30 / aq-mode=1 / aq-strength=0.00 / cutree / zone-count=0 / no-strict-cbr / qg-size=32 / no-rc-grain / qpmax=69 / qpmin=0 / no-const-vbv / sar=255 / sar-width / : / sar-height=32:27 / overscan=0 / videoformat=5 / range=0 / colorprim=6 / transfer=1 / colormatrix=6 / chromaloc=0 / display-window=0 / max-cll=0,0 / min-luma=0 / max-luma=255 / log2-max-poc-lsb=8 / vui-timing-info / vui-hrd-info / slices=1 / no-opt-qp-pps / no-opt-ref-list-length-pps / no-multi-pass-opt-rps / scenecut-bias=0.05 / no-opt-cu-delta-qp / no-aq-motion / no-hdr / no-hdr-opt / no-dhdr10-opt / no-idr-recovery-sei / analysis-reuse-level=5 / scale-factor=0 / refine-intra=0 / refine-inter=0 / refine-mv=0 / no-limit-sao / ctu-info=0 / no-lowpass-dct / refine-mv-type=0 / copy-pic=1 / max-ausize-factor=1.0 / no-dynamic-refine / no-single-sei
Default : Yes
Forced : No
Color range : Limited
Color primaries : BT.601 NTSC
Transfer characteristics : BT.709
Matrix coefficients : BT.601
Audio
ID : 2
Format : AAC LC
Format/Info : Advanced Audio Codec Low Complexity
Codec ID : A_AAC-2
Duration : 1 h 45 min
Channel(s) : 2 channels
Channel layout : L R
Sampling rate : 48.0 kHz
Frame rate : 46.875 FPS (1024 SPF)
Compression mode : Lossy
Delay relative to video : -21 ms
Title : Stereo
Language : English
Default : Yes
Forced : No
Menu
00:00:00.000 : :Chapter 1
00:08:27.007 : :Chapter 2
00:17:03.523 : :Chapter 3
00:25:16.015 : :Chapter 4
00:34:59.598 : :Chapter 5
00:41:34.993 : :Chapter 6
00:49:44.482 : :Chapter 7
00:57:51.969 : :Chapter 8
01:03:51.328 : :Chapter 9
01:12:19.836 : :Chapter 10
01:20:18.314 : :Chapter 11
01:32:04.019 : :Chapter 12
01:37:34.349 : :Chapter 13
I did this one fast and dirty. Not for archival / replay purpose.
It was not interlaced. Missed that question. Sorry bout that.
Yea, that doesn’t look bad. It’ll play on ‘newer’ stuff - probably.
Get a new Handbrake - the latest is 1.3.1
Now make a proper DVD encode with these settings:
The AAC 2.0 audio is fine - that’s as compatible as it gets.
Interesting that Handbrake didn’t detect that there was a new version. I even checked for updates in the software before I ran all this. Thanks for the tip. I’ll go grab that, and then config HB with those settings and let it tool round the bay for a bit. Back in a bit.
1 Like
That thing should fly through your system (they have wings on mine…lol)
don’t forget the 2 pass with turbo… when bit rate starving - it’s a must and goes a lot faster than you think. <—but worth every minute of it.
1 Like
I’ll be sure to tick that. Thanks.
1 Like
Currently encoding at avg fps of ~160. Rough time of pass one completion from start to completion is 15 minutes. 2nd pass should be roughly the same, so about 30 mins start to finish.
1 Like
Your machine is doing well.
Notice my ‘Dimensions’ tab.
I had to counter HB’s Autocrop a bit to get the ‘853’ back (standard 16:9).
I stick with Auto, but check and fix as required.
HB goes a little crazy if there are dark scenes - so check it - always.
Letterboxed items won’t be ‘853’. They’ll be whatever they need to be, but always maintain the ‘480’ Height. That’s all the resolution you got - so get it all.
Ok. I’ll have to watch that better. I stuck exactly to your numbers. Now I understand it better. Next time…
After a short while you’ll know what the ‘Width’ should be.
4:3 is 640 <— and you can even sneak a bit of Height to get a bit more width, but don’t chop heads - if you know what I mean - and don’t lose that 480.
16:9 is 853
Super Widescreen (you know) is 1152
Super Duper Hateful 8 Widescreen is… whatever it is, but get that 480 - no matter what.
1 Like
Just under 40 minutes to complete. Forgot the 2nd pass isn’t turbo.
General
Unique ID : 62372213598914452923105940300114391273 (0x2EEC738E159E570820B7E63BDDC370E9)
Complete name : C:\Users\Administrator\Videos\DorknessRising2.mkv
Format : Matroska
Format version : Version 4
File size : 840 MiB
Duration : 1 h 45 min
Overall bit rate : 1 114 kb/s
Encoded date : UTC 2020-07-15 19:12:12
Writing application : HandBrake 1.3.3 2020061300
Writing library : Lavf58.29.100
ErrorDetectionType : Per level 1
Video
ID : 1
Format : AVC
Format/Info : Advanced Video Codec
Format profile : High@L3
Format settings : CABAC / 4 Ref Frames
Format settings, CABAC : Yes
Format settings, Reference frames : 4 frames
Codec ID : V_MPEG4/ISO/AVC
Duration : 1 h 45 min
Nominal bit rate : 950 kb/s
Width : 720 pixels
Height : 480 pixels
Display aspect ratio : 16:9
Frame rate mode : Constant
Frame rate : 23.976 (24000/1001) FPS
Color space : YUV
Chroma subsampling : 4:2:0
Bit depth : 8 bits
Scan type : Progressive
Bits/(Pixel*Frame) : 0.115
Writing library : x264 core 157 r2935 545de2f
Encoding settings : cabac=1 / ref=2 / deblock=1:-1:-1 / analyse=0x3:0x113 / me=hex / subme=6 / psy=1 / psy_rd=1.00:0.15 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=1 / 8x8dct=1 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-3 / threads=12 / lookahead_threads=2 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=2 / b_adapt=1 / b_bias=0 / direct=1 / weightb=1 / open_gop=0 / weightp=1 / keyint=240 / keyint_min=24 / scenecut=40 / intra_refresh=0 / rc_lookahead=30 / rc=2pass / mbtree=1 / bitrate=950 / ratetol=1.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / cplxblur=20.0 / qblur=0.5 / ip_ratio=1.40 / aq=1:1.00
Default : Yes
Forced : No
Color range : Limited
Color primaries : BT.601 NTSC
Transfer characteristics : BT.601
Matrix coefficients : BT.601
Audio
ID : 2
Format : AAC LC
Format/Info : Advanced Audio Codec Low Complexity
Codec ID : A_AAC-2
Duration : 1 h 45 min
Channel(s) : 2 channels
Channel layout : L R
Sampling rate : 48.0 kHz
Frame rate : 46.875 FPS (1024 SPF)
Compression mode : Lossy
Delay relative to video : -21 ms
Title : Stereo
Language : English
Default : Yes
Forced : No
Menu
00:00:00.000 : :Chapter 1
00:08:27.173 : :Chapter 2
00:17:03.689 : :Chapter 3
00:25:16.181 : :Chapter 4
00:34:59.764 : :Chapter 5
00:41:35.159 : :Chapter 6
00:49:44.648 : :Chapter 7
00:57:52.135 : :Chapter 8
01:03:51.494 : :Chapter 9
01:12:20.002 : :Chapter 10
01:20:18.480 : :Chapter 11
01:32:04.185 : :Chapter 12
01:37:34.515 : :Chapter 13
Cool… how does it look? <—that’s why we’re here…lol
