DVBLogic 100TC DVB-C/T/T2 - TV Buttler on Qnap TS251+

Live TV & DVR
,
1

Hello,

I am trying to install TV buttler on Qnap TS251+ in Plex media server.
Plex found the TV tunner immedriatelly (connceted on USB), the scan was completed (unsing antenna) - found 6 channels but I am unable to finish the process. The confirmation buton on the last step is gray.

Does anybody have the same issue and what can be the reason ?

Server Version#: Latest
Player Version#: Latest
Tuner Make/Model: DVBLogic 100TC DVB-C/T/T2 - TV Buttler
Guide/Lineup name:
Using XMLTV?: no
Channel number/Name: none

2

You added a screenshot in your other post but not here

I see you are in Bulgaria. Bulgaria is not supported for EPG and you will need to use an xmltv source

See list of supported countries here
https://support.plex.tv/articles/226463767-frequently-asked-questions-dvr-live-tv

For xmltv
https://support.plex.tv/articles/using-an-xmltv-guide/

3

Thank you for the answer. I tried also this one several times but it seems Plex cannot find the file

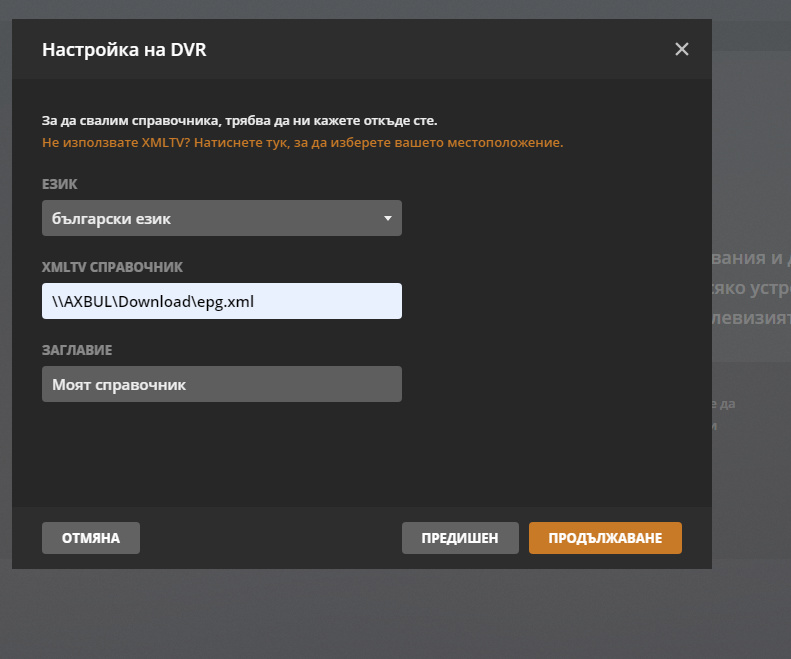

image791×659 68.5 KB

Then I get this error
image808×681 59.2 KB

4

Logs covering the time of the error please

See
https://support.plex.tv/articles/201643703-reporting-issues-with-plex-media-server/

https://support.plex.tv/articles/200250417-plex-media-server-log-files/

Have you tried local file path instead of a network path?

5

I have just tested a UNC Path for an xmltv file and it works ok

Check path and test the path directly
\\AXBUL\Download\epg.xml

and also check permissions to the plex user account

6

Hi,
Selected directory where I put the epg file is the same where plex read a data - so it should have access.
I do not have access to plex service files.
This is the log:

Plex Media Server.log (2.9 MB)

7

The path to the file is going to a zip file

"/share/CACHEDEV1_DATA/Multimedia/Music/epg4.xml.gz

It is not an xmltv file

Apr 02, 2020 13:21:02.207 [0x7f5454855700] ERROR - XML: Entity: line 1:
Apr 02, 2020 13:21:02.207 [0x7f5454855700] ERROR - XML: parser
Apr 02, 2020 13:21:02.207 [0x7f5454855700] ERROR - XML: error :
Apr 02, 2020 13:21:02.207 [0x7f5454855700] ERROR - XML: Start tag expected, '<' not found
Apr 02, 2020 13:21:02.207 [0x7f5454855700] ERROR - XML: ‹
Apr 02, 2020 13:21:02.207 [0x7f5454855700] ERROR - XML: ^
Apr 02, 2020 13:21:02.207 [0x7f5454855700] ERROR - Error parsing content from "/share/CACHEDEV1_DATA/Multimedia/Music/epg4.xml.gz".
Apr 02, 2020 13:21:02.208 [0x7f5454855700] ERROR - Error parsing XML: Error parsing file.
8

This is the file I am trying to upload - https://epg.kodibg.org/dl.php Of course - unarchived - XML verison

9

Thanks for specifying it now as a .xml file path

/share/CACHEDEV1_DATA/Multimedia/Music/epg4.xml"

I will try it out and see why we cannot handle the file . Looks like some large data item

The errors we are logging are:

Apr 02, 2020 15:39:51.597 [0x7f5454e31700] ERROR - XML: Entity: line 245051:
Apr 02, 2020 15:39:51.597 [0x7f5454e31700] ERROR - XML: parser
Apr 02, 2020 15:39:51.597 [0x7f5454e31700] ERROR - XML: error :
Apr 02, 2020 15:39:51.597 [0x7f5454e31700] ERROR - XML: internal error: Huge input lookup
Apr 02, 2020 15:39:51.597 [0x7f5454e31700] ERROR - XML: tre infidèle. Alors que Veronica essaie de comprendre ce qu'il arrive à son ma
Apr 02, 2020 15:39:51.597 [0x7f5454e31700] ERROR - XML:                                                                                ^
Apr 02, 2020 15:39:51.651 [0x7f5427447700] ERROR - XML: Entity: line 245051:
Apr 02, 2020 15:39:51.651 [0x7f5427447700] ERROR - XML: parser
Apr 02, 2020 15:39:51.651 [0x7f5427447700] ERROR - XML: error :
Apr 02, 2020 15:39:51.651 [0x7f5427447700] ERROR - XML: internal error: Huge input lookup
Apr 02, 2020 15:39:51.651 [0x7f5427447700] ERROR - XML: tre infidèle. Alors que Veronica essaie de comprendre ce qu'il arrive à son ma

I will try it

Thanks

10

The error has been reproduced and the issue has been referred to the development team. The underlying XmlUtils error is

XML: internal error: Huge input lookup
11

Thank you!
Waiting for the outcome.

12

Hello,
When and what is suppose to be the outcome from the issue ?

13

A fix is undergoing tests - the fix is for large xmltv files

14

Hello, I installed the new version but seems the problem is still there.
Was it solved in the latest verison ?

15

There were two fixes for xmltv - one in 1.19.2 and the other I expect to be in 1.19.3

16

Plex Media Server 1.19.3 has just been released to beta and has a fix for large xmltv files

See release note

  • (DVR) Server would sometimes fail to consume EPG data from certain XMLTV data files. (#11368)
17

Thank you! now is working fine !

18
