Hardware transcoding not working on DS420+ on PMS Version 1.32.1.6999

Plex Media Server NAS & Devices
1

Server Version#: Version 1.32.1.6999
Player Version#:
<If providing server logs please do NOT turn on verbose logging, only debug logging should be enabled>

Super weird but hardware transcoding no longer seems to be working at all on my Synology DS420+ which has an Intel Celeron J4025 (Geminilake). I knew this is a known issue with the latest versions of PMS but I had rolled back to 6999 a few weeks back and had no issues with hardware transcoding. However, starting this week hardware transcoding seems to have broken again even on 6999 and its killing my CPU usage and making streaming difficult.

Do I need to revert to an even older version? Any assistance or workarounds would be greatly appreciated!

2

1.32.1.6999 should be working for you on GeminiLake

As an alternative, here is 1.31.3.6868 which predates the IMD update in 1.32.0

3

I just reverted to 6868 and am still experiencing no hardware transcoding.

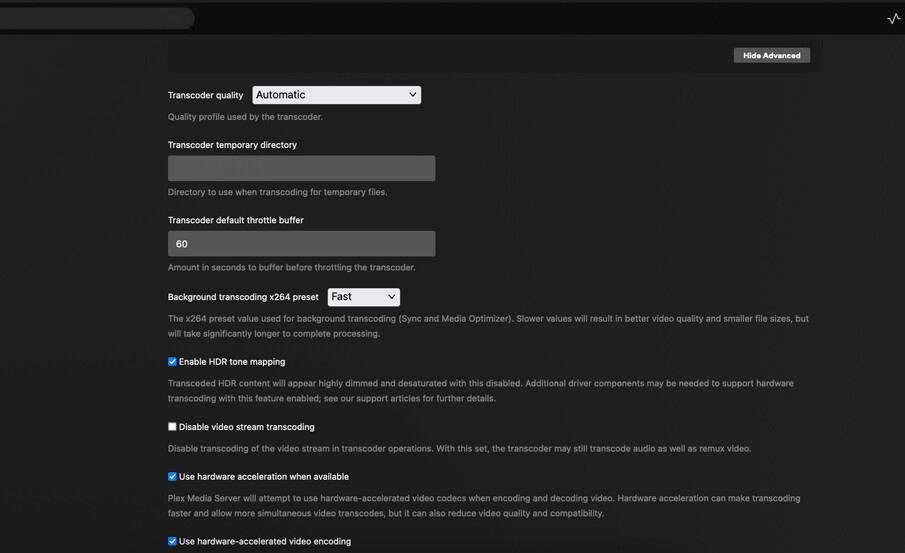

Here are some screenshots.

image624×482 43.1 KB

image905×553 55.9 KB

Would logs be helpful?

4

Server DEBUG logs please which capture the playback session start.

I need to see what’s happening.

5

Log is attached.
Plex Media Server.log (1.3 MB)

6

HW transcoding will not fully engage when subtitle burning is required.

Aug 16, 2023 16:33:08.243 [0x7f6783fffb38] DEBUG - [Req#296/Transcode] MDE: Selected protocol dash; container: mp4
Aug 16, 2023 16:33:08.243 [0x7f6783fffb38] DEBUG - [Req#296/Transcode] MDE: analyzing media item 21406
Aug 16, 2023 16:33:08.243 [0x7f6783fffb38] DEBUG - [Req#296/Transcode] MDE: E17 - Rip In The Universe: Direct Play is disabled
Aug 16, 2023 16:33:08.244 [0x7f6783fffb38] DEBUG - [Req#296/Transcode] MDE: E17 - Rip In The Universe: media must be transcoded in order to use the dash protocol
Aug 16, 2023 16:33:08.244 [0x7f6783fffb38] DEBUG - [Req#296/Transcode] MDE: E17 - Rip In The Universe: selected audio stream is not the first audio stream and direct play stream selection is not enabled
Aug 16, 2023 16:33:08.244 [0x7f6783fffb38] DEBUG - [Req#296/Transcode] MDE: E17 - Rip In The Universe: selected subtitle cannot be converted to a compatible format, burning into video stream
Aug 16, 2023 16:33:08.244 [0x7f6783fffb38] DEBUG - [Req#296/Transcode] MDE: E17 - Rip In The Universe: avoiding video remux due to burned subtitle stream
Aug 16, 2023 16:33:08.244 [0x7f6783fffb38] DEBUG - [Req#296/Transcode] MDE: E17 - Rip In The Universe: no remuxable profile found, so video stream will be transcoded
Aug 16, 2023 16:33:08.246 [0x7f677c358b38] DEBUG - [Req#26a] [Now] User is jfofa (ID: 99624479)
Aug 16, 2023 16:33:08.246 [0x7f677c358b38] DEBUG - [Req#26a] [Now] Device is Tizen (TV 2019).
Aug 16, 2023 16:33:08.246 [0x7f677c358b38] DEBUG - [Req#26a] [Now] Profile is Generic

It will HW decode and HW encode (not displayed) but then use the CPU to burn in the subtitles .

At present, this is how it’s done.

We’re trying to figure out, if possible, a way to leverage the HW for subtitle burning too. (have some ideas, it’s really complex, but making progress )

7

Why doesn’t it display “(hw)” in the dashboard that hardware transcoding is occurring? It used to show that but no longer does. I also haven’t had issues in the past streaming this exact title but it pauses to buffer every few seconds now. Also is using the CPU to burn in subtitles very resource intensive? I’m still clocking around 99% CPU usage when I try to watch this title.

8

@sunizza

Show me the XML ( media info ) for the file you’re playing?

If there are subtitles in the file and subtitles are enabled, it will NOT use HW transcoding.

This is a common misunderstanding about how FFMPEG works.

It starts with HW decode, Software-CPU subtitle burning, HW encode
but because of the subtitle burning, the (hw) is suppressed.

You will still see the huge load (99%) as it burns the subtitles into the image.

We are trying to figure out a way to do more in hardware but don’t have anything reliable yet.

9

I see, thanks for the info. Here is the xml media info for the file in question.
