Issues with EPG in Romania and with the TV Butler tuner

[florinvlaicu]

Server Version#: 1.20.3.3437
Player Version#: irrelevant
Tuner Make/Model: TV Butler
Guide/Lineup name: ?
Using XMLTV?: No
Channel number/Name: ?

Hello,

I had previously given up on using the TV Butler tuner with my plex installation. However recently I decided to give it another go.

I live in Romania and the support for my country is HORRENDOUS. I don’t understand why plex doesn’t support OTA EPG (the one that the cable provider sends - but that’s besides the point now).

I fiddled in the past with adding a new fast_scan transponder profile for Digi Romania:

[SATTYPE]
1=8027
2=DVB-C ROMANIA (Digi, Fast Scan)
3=RO

[DVB]
0=1
1=306000,V,6900,QAM256

However, every time I would try to use it on my rpi3 installation after choosing this profile, the tuner service would crash, leading me to believe that the profile I had created was bad.

I would get this error in the log:

Oct 15, 2020 11:20:59.933 [0x713f8450] INFO - [I] device_manager_t::scan_start. Device dvb#tvbutler#0#1:2
Oct 15, 2020 11:20:59.933 [0x713f8450] INFO - [I] device_reactor_t::create_device dvb#tvbutler#0#1:2
Oct 15, 2020 11:20:59.934 [0x6f3ff450] INFO - [I] channel_scanner_t::scan_thread_function started
Oct 15, 2020 11:20:59.942 [0x723fa450] INFO - [I] web_service_t::process_device_status
Oct 15, 2020 11:20:59.942 [0x723fa450] INFO - [I] onetv_factory::DeviceGetListEx >>
Oct 15, 2020 11:20:59.945 [0x723fa450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 1060:30720
Oct 15, 2020 11:20:59.945 [0x723fa450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 7449:256
Oct 15, 2020 11:20:59.945 [0x6f3ff450] INFO - [I] channel_scanner_t::scan_thread_function. Scanning networks
Oct 15, 2020 11:20:59.945 [0x723fa450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 1060:9492
Oct 15, 2020 11:20:59.945 [0x723fa450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 1060:9492
Oct 15, 2020 11:20:59.945 [0x723fa450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 7531:2
Oct 15, 2020 11:20:59.949 [0x72bfb450] INFO - [I] web_service_t::process_device_status
Oct 15, 2020 11:20:59.949 [0x72bfb450] INFO - [I] onetv_factory::DeviceGetListEx >>
Oct 15, 2020 11:20:59.951 [0x72bfb450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 1060:30720
Oct 15, 2020 11:20:59.951 [0x72bfb450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 7449:256
Oct 15, 2020 11:20:59.951 [0x72bfb450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 1060:9492
Oct 15, 2020 11:20:59.951 [0x72bfb450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 1060:9492
Oct 15, 2020 11:20:59.951 [0x72bfb450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 7531:2
Oct 15, 2020 11:20:59.955 [0x733fc450] INFO - [I] web_service_t::process_get_scanners
Oct 15, 2020 11:20:59.955 [0x733fc450] INFO - [I] onetv_factory::DeviceGetListEx >>
Oct 15, 2020 11:20:59.957 [0x733fc450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 1060:30720
Oct 15, 2020 11:20:59.957 [0x733fc450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 7449:256
Oct 15, 2020 11:20:59.957 [0x733fc450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 1060:9492
Oct 15, 2020 11:20:59.957 [0x733fc450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 1060:9492
Oct 15, 2020 11:20:59.957 [0x733fc450] INFO - [I] onetv_factory::DeviceGetListEx. Found device 7531:2
Oct 15, 2020 11:20:59.995 [0x6e7ff450] INFO - [I] onetv_factory::StartDevice. Found device: 1:2
Oct 15, 2020 11:20:59.995 [0x6e7ff450] INFO - [I] CTVSStreamSource::TuneTransponder. Transponder tuning request: diseqc 0, freq 306000, modulation 0, polarization 0, symbol rate 6900000, LOF 5, LNB selection signal 0, FEC 0
Oct 15, 2020 11:20:59.995 [0x6e7ff450] INFO - [I] onetv_factory::SetTuner. Tuning request. 306000, 5, 6900000
Oct 15, 2020 11:21:00.026 [0x6e7ff450] WARN - [E] Error. Received SIGSEGV: Segmentation Violation.

Please notice the segmentation fault.

For one of my other projects i purchased an XBOX TV Tuner and I tried to see if it worked with linux and plex.
To my surprise this “UNSUPPORTED” tuner got further with my plex setup than the “SUPPORTED” one.

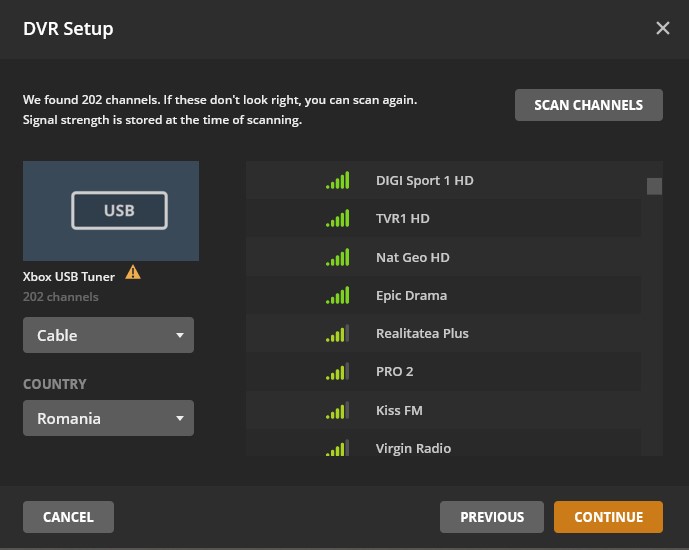

Basically after choosing the same profile with the xbox tuner, plex went ahead and found all the channels with their correct names.

However it got stuck in the next step:

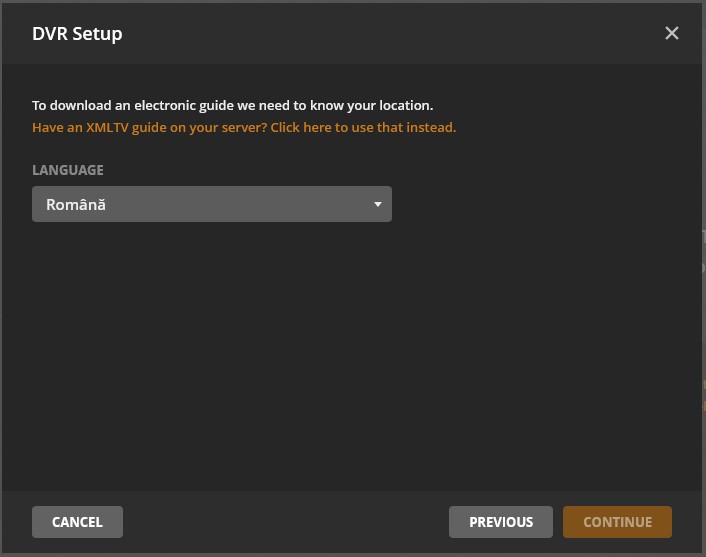

Where it asks for the language for EPG. Whatever I value I chose in the dropdown box I could not add continue to this form:

I think there are 2 issues here:

1. TV Butler driver crashes (and while I’m sympathetic that the company that produces them is no more, it is still a supported device for you)
2. No OTA EPG support

Are there any plans to fix these 2 problems?

Thanks,
Florin
