We can give it a try. But do not have to much hope
What was really wired is after the intervention of Synology the folder and the user PLEX came back with no content. I thought it was because PLEX was installed, but it was not.
After Synology’s intervention, It’s very likely they reset share permissions.
Do you have any media stored in the Plex share?
If you do, I advise you move it out of there into stand alone shares
Then,
Control Panel - Shared Folders.
For each of your shares containing media,
EDIT the share -> Permissions.
Make certain user plex has at least read permission to the share.
For each of your Library sections in Plex, EDIT -> Folders -> make certain they point to the proper /volumeX/share-name folder.
Seeing the log files , captured about 2 minutes after PMS starts, would be very helpful.
Hi, thank your for you tip i worked well!
What do I need to to the show you my log files?
You can perform a normal “Settings - Server - Troubleshooting - Download Logs”"
then attach that ZIP file here.
I am sorry but I do not get it. I need to do that in the NAS? I did not find where I found the settings. Can you be more specific (maybe with screenshot)?
Another question : all my problem started with the last update. I think I saw a new one. Is it really safe to download or if it works as it is, I can stay by my old version?
To download your logs files for me:
(you should probably recreate the problem as the logs will have flushed out by now).

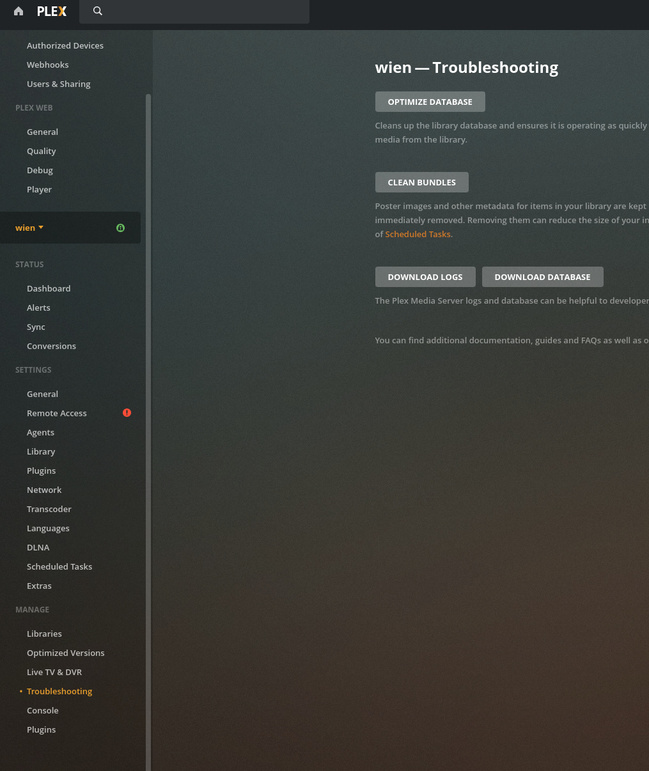

In the Web client, Click Settings -> Server - Troubleshooting (in the left pane) - Download Logs (in the center popup).
It will give you a ZIP file.
Next drag & drop that ZIP file here (let it finish uploading before you click Reply)
I am sorry but I do not find the settings.
I do not want to recreate the problem, I lost a lot of time. Maybe by a next update…
If it to late, I suggest we do not bother any more.
Plex Media Server Logs_2020-02-23_09-25-58.zip (4.5 MB)
et voila
Thank you for the log files.
I can see PMS is busy preparing a lot of thumbnails. This is a lot of work for a Synology to do. Do you use them when viewing movies? These images are only used when seeking from chapter to chapter.
34/34a8a14913863a8e0504251a262fc3228be491fb.jpg].
Feb 23, 2020 09:25:29.767 [0x7f0ae25a1700] DEBUG - Created thumbnail of size 600x1067, has pixels: 1
Feb 23, 2020 09:25:29.808 [0x7f0ae288f700] DEBUG - Created thumbnail of size 600x1059, has pixels: 1
Feb 23, 2020 09:25:29.827 [0x7f0b6a977700] DEBUG - Completed: [178.193.241.2:49618] 200 GET /photo/:/transcode?width=600&height=339&minSize=1&upscale=1&url=%2Flibrary%2Fmetadata%2F772%2Fthumb%2F1582300789%3FX-Plex-Token%3Dxxxxxxxxxxxxxxxxxxxx (26 live) TLS GZIP 334ms 47479 bytes (pipelined: 1)
Feb 23, 2020 09:25:29.835 [0x7f0ae2e6b700] DEBUG - Created thumbnail of size 600x1067, has pixels: 1
Feb 23, 2020 09:25:29.898 [0x7f0b6a689700] DEBUG - Auth: authenticated user 1 as Elwyn1
Feb 23, 2020 09:25:29.898 [0x7f0ae1fc5700] DEBUG - Request: [178.193.241.2:49618 (WAN)] GET /photo/:/transcode?width=240&height=361&minSize=1&upscale=1&url=%2Flibrary%2Fmetadata%2F829%2Fthumb%2F1582301031%3FX-Plex-Token%3Dxxxxxxxxxxxxxxxxxxxx (26 live) TLS GZIP Signed-in Token (Elwyn1)
Feb 23, 2020 09:25:29.899 [0x7f0ae1fc5700] DEBUG - Photo transcoder: Request for url [/library/metadata/829/thumb/1582301031?X-Plex-Token=xxxxxxxxxxxxxxxxxxxx] (is local: 1 upscaled: 1)
Feb 23, 2020 09:25:29.899 [0x7f0ae1fc5700] DEBUG - The cache file did not exist, but the original did [/volume1/Plex/Library/Application Support/Plex Media Server/Cache/PhotoTranscoder/ba/ba225b16a84d85e77e8c1cea30faba838aab060e.jpg].
Feb 23, 2020 09:25:29.982 [0x7f0b6a977700] DEBUG - Completed: [178.193.241.2:49619] 200 GET /photo/:/transcode?width=600&height=339&minSize=1&upscale=1&url=%2Flibrary%2Fmetadata%2F773%2Fthumb%2F1582300789%3FX-Plex-Token%3Dxxxxxxxxxxxxxxxxxxxx (26 live) TLS GZIP 483ms 60335 bytes (pipelined: 1)
Feb 23, 2020 09:25:30.077 [0x7f0b6a689700] DEBUG - Auth: authenticated user 1 as Elwyn1
Feb 23, 2020 09:25:30.077 [0x7f0ae25a1700] DEBUG - Request: [178.193.241.2:49619 (WAN)] GET /photo/:/transcode?width=240&height=361&minSize=1&upscale=1&url=%2Flibrary%2Fmetadata%2F830%2Fthumb%2F1582301033%3FX-Plex-Token%3Dxxxxxxxxxxxxxxxxxxxx (26 live) TLS GZIP Signed-in Token (Elwyn1)
Feb 23, 2020 09:25:30.078 [0x7f0ae25a1700] DEBUG - Photo transcoder: Request for url [/library/metadata/830/thumb/1582301033?X-Plex-Token=xxxxxxxxxxxxxxxxxxxx] (is local: 1 upscaled: 1)
Feb 23, 2020 09:25:30.078 [0x7f0ae25a1700] DEBUG - The cache file did not exist, but the original did [/volume1/Plex/Library/Application Support/Plex Media Server/Cache/PhotoTranscoder/8a/8a0dd4c06746935ff88973245c57b661afc83e1f.jpg].
Feb 23, 2020 09:25:30.201 [0x7f0b6a977700] DEBUG - Completed: [178.193.241.2:49515] 200 GET /photo/:/transcode?width=600&height=339&minSize=1&upscale=1&url=%2Flibrary%2Fmetadata%2F774%2Fthumb%2F1582300789%3FX-Plex-Token%3Dxxxxxxxxxxxxxxxxxxxx (26 live) TLS GZIP 702ms 64916 bytes (pipelined: 11)
Feb 23, 2020 09:25:30.233 [0x7f0ae2b7d700] DEBUG - Created thumbnail of size 241x361, has pixels: 1
Feb 23, 2020 09:25:30.279 [0x7f0b6a977700] DEBUG - Completed: [178.193.241.2:49555] 200 GET /photo/:/transcode?width=240&height=361&minSize=1&upscale=1&url=%2Flibrary%2Fmetadata%2F827%2Fthumb%2F1582301020%3FX-Plex-Token%3Dxxxxxxxxxxxxxxxxxxxx (26 live) TLS GZIP 592ms 32106 bytes (pipelined: 3)
Feb 23, 2020 09:25:30.285 [0x7f0b6a689700] DEBUG - Auth: authenticated user 1 as Elwyn1
Feb 23, 2020 09:25:30.285 [0x7f0ae288f700] DEBUG - Request: [178.193.241.2:49515 (WAN)] GET /photo/:/transcode?width=240&height=361&minSize=1&upscale=1&url=%2Flibrary%2Fmetadata%2F831%2Fthumb%2F1582301046%3FX-Plex-Token%3Dxxxxxxxxxxxxxxxxxxxx (26 live) TLS GZIP Signed-in Token (Elwyn1)
Feb 23, 2020 09:25:30.285 [0x7f0ae288f700] DEBUG - Photo transcoder: Request for url [/library/metadata/831/thumb/1582301046?X-Plex-Token=xxxxxxxxxxxxxxxxxxxx] (is local: 1 upscaled: 1)
Feb 23, 2020 09:25:30.286 [0x7f0ae288f700] DEBUG - The cache file did not exist, but the original did [/volume1/Plex/Library/Application Support/Plex Media Server/Cache/PhotoTranscoder/65/65521e04a44240ec29ada801c26717e51832a030.jpg].
I also see there is a video bit rate limit of 2 Mbps.
Is this intentional?
Feb 23, 2020 09:25:21.444 [0x7f0ae2e6b700] DEBUG - MDE: Liliana 4 ans (2020): no direct play video profile exists for http/mp4/h264
Feb 23, 2020 09:25:21.444 [0x7f0ae2e6b700] DEBUG - MDE: Liliana 4 ans (2020): no direct play video profile exists for http/mp4/h264/aac
Feb 23, 2020 09:25:21.444 [0x7f0ae2e6b700] DEBUG - Liliana 4 ans - video.bitrate limitation applies: 9680 > 2000
Feb 23, 2020 09:25:21.444 [0x7f0ae2e6b700] DEBUG - Liliana 4 ans - video.bitrate limitation applies: 9680 > 2000
Feb 23, 2020 09:25:21.444 [0x7f0ae2e6b700] DEBUG - MDE: Liliana 4 ans (2020): no remuxable profile found, so video stream will be transcoded
Feb 23, 2020 09:25:21.444 [0x7f0ae2e6b700] DEBUG - Liliana 4 ans - video.bitrate limitation applies: 9680 > 2000
Feb 23, 2020 09:25:21.444 [0x7f0ae2e6b700] DEBUG - MDE: Cannot direct stream video stream due to profile or setting limitations
Feb 23, 2020 09:25:21.444 [0x7f0ae2e6b700] DEBUG - Scaled up video bitrate to 14520Kbps based on 1.500000x fudge factor.
Feb 23, 2020 09:25:21.445 [0x7f0ae2e6b700] DEBUG - Scaled maximum bitrate for resolution reduction to 2046Kbps.
Feb 23, 2020 09:25:21.445 [0x7f0ae2e6b700] DEBUG - MDE: Liliana 4 ans (2020): Audio Direct Streaming is disabled, so video's audio stream will be transcoded
Feb 23, 2020 09:25:21.445 [0x7f0ae2e6b700] DEBUG - MDE: Cannot direct stream audio stream due to profile or setting limitations
Feb 23, 2020 09:25:21.445 [0x7f0ae2e6b700] DEBUG - MDE: Liliana 4 ans (2020): selected media 0 / 1830
Feb 23, 2020 09:25:21.445 [0x7f0ae2e6b700] DEBUG - Streaming Resource: Adding session 0x7f0b2034b770:pk2lk0yevm76svt9ta49usy4 which is using 1981kbps of WAN bandwidth. Used is now 1981kbps
Feb 23, 2020 09:25:21.445 [0x7f0ae2e6b700] DEBUG - Streaming Resource: Adding session 0x7f0b2034b770:pk2lk0yevm76svt9ta49usy4 which is using transcoder slot. Used slots is now 1
Feb 23, 2020 09:25:21.445 [0x7f0ae2e6b700] DEBUG - Streaming Resource: Added session 0x7f0b2034b770:pk2lk0yevm76svt9ta49usy4
Feb 23, 2020 09:25:21.445 [0x7f0ae2e6b700] DEBUG - Streaming Resource: Reached Decision id=1034 codes=(General=1001,Direct play not available; Conversion OK. Direct Play=3000,App cannot direct play this item. Direct play is disabled. Transcode=1001,Direct play not available; Conversion OK.) media=(id=1830 part=(id=1830 decision=transcode container=mp4 protocol=dash streams=(Video=(id=3714 decision=transcode bitrate=1724 encoder=libx264 width=720 height=406) Audio=(id=3713 decision=transcode bitrate=162 encoder=aac channels=2 rate=48000))))
Feb 23, 2020 09:25:21.448 [0x7f0b6a689700] DEBUG - Completed: [178.193.241.2:49519] 200 GET /video/:/transcode/universal/decision?hasMDE=1&path=%2Flibrary%2Fmetadata%2F1034&mediaIndex=0&partIndex=0&protocol=dash&fastSeek=1&directPlay=0&directStream=1&subtitleSize=100&audioBoost=100&location=wan&maxVideoBitrate=2000&addDebugOverlay=0&autoAdjustQuality=0&directStreamAudio=1&mediaBufferSize=102400&session=wjjxdwxe8kfi64a4umi4mn4o&subtitles=burn&Accept-Language=fr (21 live) TLS GZIP 24ms 1422 bytes (pipelined: 3)
Thank your for your inputs.
I disable the thumbnails for the videos (“never”). Should I also disable the other two (chapter and sound)?
I stopped the bit rate limit : I fixed it on “maximum” is that correct?
Any other tips?
Thank you very much!
At this point, I suspect you have a lot of unnecessary thumbnails.
You might want to go back into each library section (Advanced tab) and “DELETE” those thumbnails you do not want. It will reclaim space.
OK thank you I did that. I hope it helps. Thank you very much for your support!
