PMS SSL Uses *.plex.direct Let’s Encrypt SSL certificate instead of custom configured certificate

[gringo1er]

Server Version#: 1.41.3.9314

Hello. I have changed my SSL provider, using now Sectigo SSL from Infomaniak.
I have built the pfx file using -certpbe AES-256-CBC -keypbe AES-256-CBC -macalg SHA256 as I do for each renew.
But with Sectigo SSL, PMS ssl uses let’s encrypt *.plex.direct ssl instead of the new one.

I have tested with the native pfx cert provided in the same time (with the native passphrase), and the result is the same.
No issue with other tools (Emby) or Apache servers, only with PMS.

An idea?
Thanx!

[kesawi]

If you connect to PMS using anything other than the domain name specified in the Custom certificate domain setting such as the server’s IP address then it will default back to the plex.direct certificate for the connection.

Your PKCS12 file must also contain the full certificate chain (CA, sub-CA, and site cert) as well as the private key. The top level CA must also be one that’s recognised by PMS and Plex clients.

You do not need to specify anything under Custom server access URLs as the Custom certificate domain is automatically published up to plex.tv.

Unless you have a specific use case that requires it, you’re generally better off just letting Plex manage everything and go via https://app.plex.tv.

[gringo1er]

Hello. PMS offers the possibility to use a personal domain and certificate, I am currently using since years. I dont want to use certificates I don’t master.
As I explained in the pre.vious message I follow the right complete procedure to provide pfx file, with chain, key, cert. Infomaniak offers a p12 file too, with it own passphrase, but at the end it’s the same issue.
A workaround solution is now to use a reverse proxy with quite the same cert /key, it works but it’s not clean.
I don’t understand.
Here are specs of these ssl certs, they seems compliant with PMS needs

Certificats SSL - Toutes les caractéristiques et tarifs

Thank you

[ChuckPa]

My PfSense does the ACME key management (refreshing) of the certificate for my domain.

Using the LE cert (CA), I have this script pull the current cert from the pfsense and then generate a P12 for PMS.

The important part here is the openssl statement which combines my key, my cert, and the LE cert into the output P12

#!/bin/sh

# Get current cert & key

scp admin@pfsense:/conf/acme/mydomain-production.key  ./mydomain-production.key

scp admin@pfsense:/conf/acme/mydomain-production.crt  ./mydomain-production.crt

openssl pkcs12 -export -out mydomain.p12 -inkey mydomain-production.key -in mydomain-production.crt -certfile "Acmecert_+O=Let's+Encrypt,+CN=R3,+C=US.crt"

With this output P12, I put it into PMS where PMS will see it at next restart

I use CloudFlare for DNS. CloudFlare provides a simple DNS alias record to my WAN IP. Connecting inbound as my domain is seen by PMS which then switches to its domain between client and my server. My domain is only used for the initial “Hello” part of the connection.

[gringo1er]

Hello. Your proposal is close to the procedure I use since OpenSSLv3.0, as explained here.

Linux Tips

OpenSSL v3.0.0 and PMS. For those using their own domains and certificates with PMS , PMS 1.32.0.6865 and above updates OpenSSL from v1.1.1 to v3.0.0 . (changed the numbering scheme in the process) The consequence of this is OpenSSL v3 removed several “less secure” encryption methods. The impact on you, if you’re using an older distributions where openssl v3 is not the default, if not already doing so, you will need pay special attention to how your certificates are generated As example,…

But it doesn’t explain why PMS refuses to consider it now, even if it’s compliant to minimum requirements.
Gandi certified the SSL with Digicert, Infomaniak uses Sectigo (Comodo) to certify it. I don’t know if there is a link, but with Gandi it perfectly worked.

But Gandi decided to at least double there prices (for the domain, SSL, mailboxes…) so I decided to change at the global renew.

But now that issue…

[gringo1er]

It seems I am not alone, encountering an issue with Sectigo SSL:

Same novice ... different issue

I was able to do the initial setup of Plex on one of our Synology NAS and we have been testing the playback of videos, photos, etc. We installed the pfx version of the cert using the instructions here → Plex/Synology - Custom domain with HTTPS - Imgur and all was fine. During my first post for another issue, I was told I was running a quite old version of Plex as I installed from Synology Package Center. As novice to Plex and not wanting to damage what we have accomplish, I contacted Synology s…

I will read it to know the end of their story

[kesawi]

Are you testing this from inside or outside of your network?

Try generating a Let’s Encrypt signed certificate and see if that works. If that works then it could be an issue specific to certificates issued by Sectigo SSL. If using acme.sh then ensure you request an RSA rather than ECC certificate (the default for acme.sh is ECC).

Also, if you want Plex clients to only connect via the custom certificate domain then disable remote access in the PMS settings. As long as an appropriate port forward and the corresponding firewall rules are configured on your router it will still be accessible. If you have remote access enabled then PMS will publish your WAN IP address back up to plex.tv and clients will use that before the custom certificate domains.

Local clients will always default to the local plex.direct domain and not the custom certificate domain.

[gringo1er]

I think so it’s something specific to Sectigo.

As explained previously, with another provider it worked, with a reverse proxy also (with these CRT, key, CA) or let’s encrypt (sub domain).

So unless I find a solution (or the reason of the uncompatibility) I will remain like this. But it’s not clean. The cert works with all other uses. Only pms doesn’t.

[gringo1er]

Hello

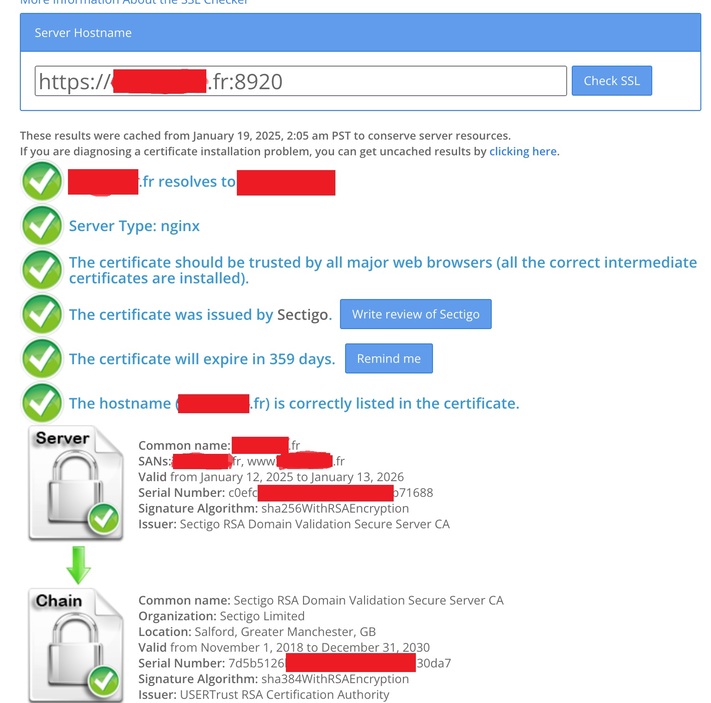

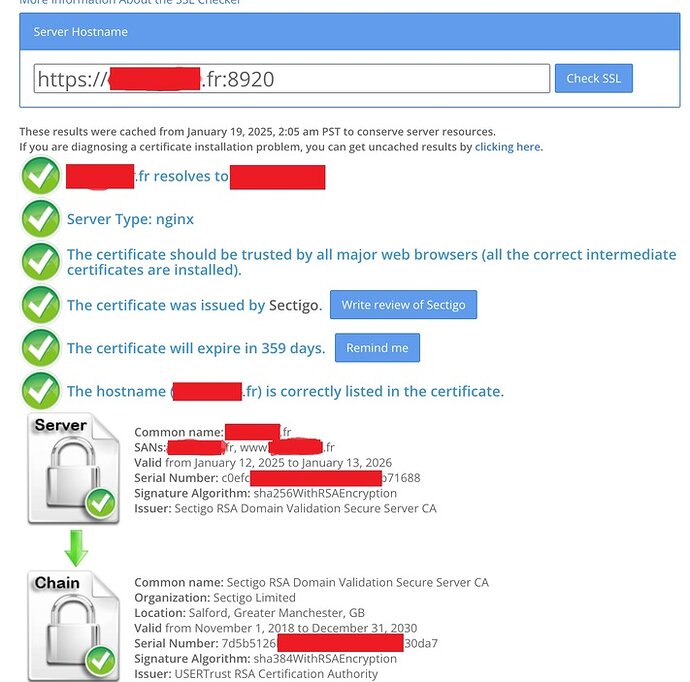

My pfx generated cert file is also used with Emby (I know, I crossed some lines), and I checked my SSL access. Here is the result

As you can see, the cert, chain files are ok and active. So I really don’t understand why Sectigo Cert files don’t work with Plex

Unless I may change the CA cert file?

Comodo Knowledge Base

Thanks

[uWaver_Ltd]

Issue Identified and Resolved

I have identified and resolved the issue. It appears that the Sectigo .PFX file did not contain the certificate chain. The following steps were taken:

1. Verify if the chain is present in the PFX file:

openssl pkcs12 -in yourfile.pfx -clcerts -nokeys -out site_cert.pem
openssl pkcs12 -in yourfile.pfx -cacerts -nokeys -out chain.pem

In my case, chain.pem was 0 KB (empty), indicating that the chain was missing.

2. Create a new valid PFX file:

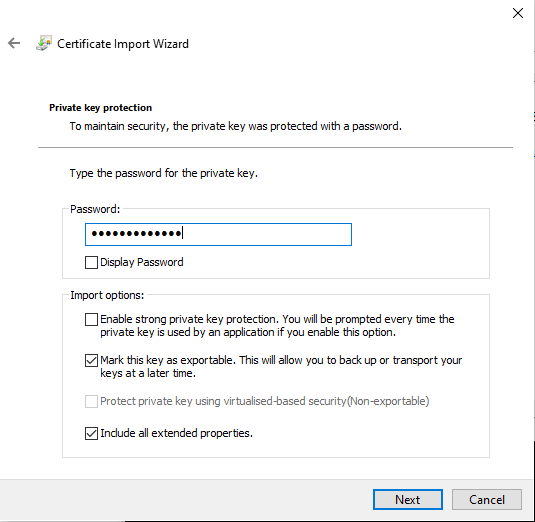

a. Import the existing PFX into the Windows Certificate Store
b. Using certmgr.msc (C:\Windows\System32\certmgr.msc), import the existing PFX file.
c. During the import, ensure the following options are selected:

• Mark this key as exportable
• Include all extended properties

3. Export a new PFX from the Certificate Store

a. Still using certmgr.msc, select the following options during export:

• Include all certificates in the certification path if possible
• Export all extended properties
• Enable certificate privacy

b. Set a password and use the encryption method “TripleDES-SHA1”
Note: Using “AES256-SHA256” encryption did not work with Plex.

[gringo1er]

Hello.
As I explained in a previous message, and as you can see, the PFX file contains the chain cert. It’s specific to Certigo ssl files. I have found a contingency procedure: I use a reverse proxy with the SSL file, and linked the reverse proxy to the local PMS server through http link. Like this, the connection is secured with the reverse proxy, the right ssl file, Of course I would have prefered a direct ssl connexion without reverse, but it’s like that.
