Verizon Port number when there are more than one server

[xjonx1]

Server Version#: Version 4.54.5
Player Version#:N/A
Verizon FiOS: 02.03.00.09

I followed the guide to access both my Plex servers on Synology NAS devices outside my home network.

It said I can have more than one and I should set the port numbers to 32401 and 32402 and 32400 for both in the internal side.

When I try to do this on my Verizon router one works fine but the other will not let me set it and says “Conflicting Port Forwarding Rules: The Destination Ports 32400 service conflict with an existing port forwarding rule offering Destination Ports 32400 service.”

How do I set up Verizon so that I can see both the TV and Movie servers when I am not at home?

Networked Computer / Device	Applications & Ports Forwarded	Status	Delete
localhost
127.0.0.1	Verizon Fios Service

TCP Any → 4567|Active||
|new-host-4

192.168.1.231|Destination Ports 32400

TCP 32401 → 32400|Active||

[CostaHT]

First option: (Preferred)
You can set up port forwarding for both servers automatically using UPNP.

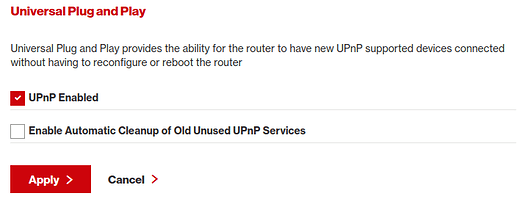

On your router, go to Advanced → Universal Plug and Play and set it up as below:

Do not leave the second option enabled
Once this configuration is applied, disable and enable remote access on Plex and it will configure everything by itself.

Second option:
Manual configuration. Create the port forwading as below, changing ONLY the fields 1 and 2.

Plex Server 1 - Destination port 32401 - Forward to port 32400
Plex Server 2 - Destination port 32402 - Forward to port 32400

Once that’s done. Go to Plex Server 1 and on Remote Access, enable Manually specify public port and set it to 32401. On Plex Server 2, 32402.
Apply. Save.

[xjonx1]

I did have UPNP on. I had noticed that the connection test in Plex would sometimes fail and that either server might show up in the hotel and maybe not.

I followed the instructions, above and did not get the error message this time so I think it will work. Now I just need to try it when I’m on the road again.

Thanks!

[CostaHT]

Or you can just disconnected your phone from your wifi and play something over 4G. If it works, then it will work anywhere

[xjonx1]

That’s an idea, but I am capped so streaming media over it is kinda a non-starter.

PS Oh, and I forgot to mention. In the room I use a roku stick.

[CostaHT]

I don’t mean stream a whole thing, just 10 seconds. If it works, you’re all set.

[xjonx1]

I didn’t think of that. Thanks for the suggestion.
