Correctly identify & display Dolby Atmos, dts:X, and dts-HD MA audio tracks in Plex clients

Feature Suggestions
1

Note to moderators: Before opening this request, I did find an existing request. That request is closed as a duplicate with a link to a request that no longer exists. So, since I could not find an open request, I’m submitting this one.

–

Request: Correctly identify & display Dolby Atmos, dts:X, and dts-HD MA audio tracks in Plex clients.

Plex clients currently show Dolby Atmos as TrueHD audio and dts:x/dts-HD MA as simply dts. Using the information provided by MediaArea’s MediaInfo as a guide, it seems Plex needs to look at the Audio Format Profile field in addition to the Audio Format field.

For dts-HD MA and dts:X audio, Plex already scans the audio profile, identifying both as audioProfile=“ma.” This can be seen by viewing the XML data for the movie. “audioprofile” is not listed in the XML data for movies with Dolby Atmos audio.

Movies with dts-HD MA audio also contain standard dts audio tracks. Fully identifying the available audio track types will make it easier for the user to pick the “best” audio track for their listening environment.

See below for examples.

Thank you for considering this request.

Dolby Atmos Example

Dolby Amaze is a Dolby Atmos demo video from Dolby.

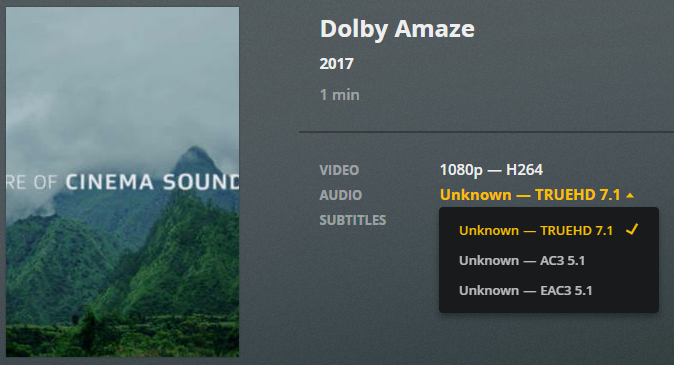

Screenshot from Plex Client:

674×365 233 KB

MediaInfo data for the Atmos audio track:
Audio #1
ID : 2
Format : TrueHD
Format profile : TrueHD+Atmos / TrueHD
Codec ID : A_TRUEHD
Duration : 1 min 3 s
Bit rate mode : Variable
Bit rate : 6 694 kb/s
Maximum bit rate : 9 096 kb/s
Channel(s) : Object Based / 8 channels
Channel positions : Object Based / Front: L C R, Side: L R, Back: L R, LFE
Sampling rate : / 48.0 kHz
Frame rate : 1 200.000 FPS (40 SPF)
Compression mode : Lossless
Stream size : 50.7 MiB (32%)
Default : Yes
Forced : No

dts:x Example

Out of the Box is a demo video from dts

Screenshot from Plex client:

656×366 197 KB

MediaInfo data for the dts:X audio track:
Audio
ID : 2
Format : DTS
Format/Info : Digital Theater Systems
Format profile : X / MA / Core
Mode : 16
Format settings, Endianness : Big
Codec ID : A_DTS
Duration : 59 s 979 ms
Bit rate mode : Variable / Variable / Constant
Bit rate : 6 367 kb/s / 6 367 kb/s / 1 509 kb/s
Channel(s) : Object Based / 8 channels / 6 channels
Channel positions : Object Based / Front: L C R, Side: L R, Back: L R, LFE / Front: L C R, Side: L R, LFE
Sampling rate : / 48.0 kHz / 48.0 kHz
Frame rate : 93.750 FPS (512 SPF)
Bit depth : / 24 bits / 24 bits
Compression mode : / Lossless / Lossy
Stream size : 45.5 MiB (41%)
Language : English
Default : Yes
Forced : No

dts-HD MA 7.1 Example

This is a dts-HD MA Sound Check video from dts.

Screenshot from Plex client:

673×360 239 KB

MediaInfo data for the dts-HD MA 7.1 and dts 5.1 audio tracks:

Audio #1
ID : 2
ID in the original source medium : 4352 (0x1100)
Format : DTS
Format/Info : Digital Theater Systems
Format profile : MA / Core
Mode : 16
Format settings, Endianness : Big
Codec ID : A_DTS
Duration : 4 min 18 s
Bit rate mode : Variable / Constant
Bit rate : 2 399 kb/s / 1 509 kb/s
Channel(s) : 8 channels / 6 channels
Channel positions : Front: L C R, Side: L R, Back: L R, LFE / Front: L C R, Side: L R, LFE
Sampling rate : 48.0 kHz
Frame rate : 93.750 FPS (512 SPF)
Bit depth : 24 bits
Compression mode : Lossless / Lossy
Stream size : 73.9 MiB (7%)
Title : Surround 7.1
Language : English
Default : Yes
Forced : No
Original source medium : Blu-ray

Audio #2
ID : 3
ID in the original source medium : 4352 (0x1100)
Format : DTS
Format/Info : Digital Theater Systems
Mode : 16
Format settings, Endianness : Big
Codec ID : A_DTS
Duration : 4 min 18 s
Bit rate mode : Constant
Bit rate : 1 509 kb/s
Channel(s) : 6 channels
Channel positions : Front: L C R, Side: L R, LFE
Sampling rate : 48.0 kHz
Frame rate : 93.750 FPS (512 SPF)
Bit depth : 24 bits
Compression mode : Lossy
Stream size : 46.5 MiB (5%)
Title : Surround 5.1
Language : English
Default : No
Forced : No
Original source medium : Blu-ray

2

This is a must so users can have movies labeled correctly!

7 Likes
3

Please add hdr as well.

8 Likes
4

That would be nice! And HDR / Dolby Vision too please!

9 Likes
5

I definitely hope this gets some attention. After a couple hours of testing I determined that the issue isn’t with my source files, AVR, or client. Interestingly enough, when I play the Dolby Amaze and Leaf test files I get Atmos to show up on my Denon receiver. But when I try to play Mad Max Fury Road (which has the TrueHD audio) it shows up as Dolby Digital+

1 Like
6

Even Dolby Digital and Dolby Digital Plus should be labeled correctly, currently appears as AC3 5.1 or EAC3 5.1, I know AC3 is the technical name, but I would like to see something like “Dolby Digital 5.1” or “Dolby Digital EX 5.1” (when the flag is active inside the codec) or “Dolby Digital Plus 5.1”, or Dolby Digital+ 5.1"…

2 Likes
7

I also would prefer readable name instead of technical names.

3 Likes
8

Please please please please give this some love. The fact that Plex has lost features like this is embarrassing.

1 Like
9

absolutely must have feature, no question. aplies for 3D sound formats as well as HDR & Dolby Vision

1 Like
10

+1. I name my files with the audio codec, but I’d LOVE to see it in the movie info in Plex clients so I can decide whether to switch to a client that supports Atmos or dts:X. (ATV4 is my main streamer and supports 4K and HDR/Dolby Vision but NOT Atmos/dts:X, so for Atmos or dts:X movies, either I switch to a Shield TV (considering) or simply pop the UHD Blu-ray in the UHD Blu-ray player (GASP! Physical media?!?) if I really want the complete trifecta of 4K, HDR, and object-based surround effects.

1 Like
11

Trying to bring this thread back alive - it’s still a feature that is sorely needed but doesn’t appear to show up on the new forum as an active feature request.

3 Likes
12

Yeah this is becoming a big problem now as I try and update my library determining what does and doesn’t have atmos audio already

1 Like
13

+1. Really would love to see this implemented!

1 Like
14

I would totally vote for this but I’m out of votes. So just a +1 from me unfortunately…

2 Likes
15

+1 here…Totally agree with everyone. This is becoming more and more critical with all of the newer object based audio formats that are in existence.

1 Like
16

+1 still.

This is even more important to me than say, Dolby Vision support. Dolby Vision is easy to strip down to just HDR, but to know whether a track has Atmos or DTS:X. Yeah, we can guess at it, or know it, or label ourselves… But for people like me with mass content, it sure would be nice to just have a label. That’s all.

1 Like
17

Seconding this. Atmos still showing as trueHD 7.1.
Has there been no official reply from plex?

1 Like
18

Still no feedback :frowning:

1 Like
19

?? Plex rarely comments on feature requests and even more rarely posts timelines for upcoming features…

3 Likes
20

Same issue here, it’s driving me nuts. I can’t tell what’s 7.1 and what is actually Atmos or DTS:X. Devs?

1 Like
