Philips Android TV | Plex and portrait videos

(Synology) Server Version#: 1.19.1.2645
(TV) Player Version#: 7.30.2.16712

Plex ISSUE

I’ve red all the related topics but I’m not sure if this problem has been fixed or not. I have a couple of portrait videos (shot vertically on Samsung mobiles) and when I try to play them on my Philips Android TV, they do play but image is distorted and looks like Plex is trying to rotate the video, only the video not the container itself (don’t know how to explain it better). I mean the black edges are still there, the size is still there but the content is rotated.

Not sure at this point if it’s a settings issue or just an unsolved bug still present.

Thank you for your help!

To add to Trumpy81,

I checked with devs on this. They playback using the orientation tag.

Therefore: If oriented incorrectly, the phone tagged it wrong. It was locked in an orientation or hadn’t detected the flip.

1 Like

Hi everyone thank you very much for your answers. I’ve done a little test today by shooting 2 videos with my Samsung Galaxy S9+ with unlocked orientation (just in case). I still don’t understand where the problem is, I have no backgroung on all this, but on my windows 10 PC with the Plex desktop client it works correctly. On my mobile with Plex Android client it works correctly. Everywhere else It looks fine, just not on my TV via Plex. :thinking:

Not sure if of any importance but I disabled transcoding on server with the new option you guys implemented not long ago.

So how does Windows and Samsung players know how to play it ? Maybe aspect ratio ?

portrait (9:16) - exif information


image is from Plex on Windows 10 client

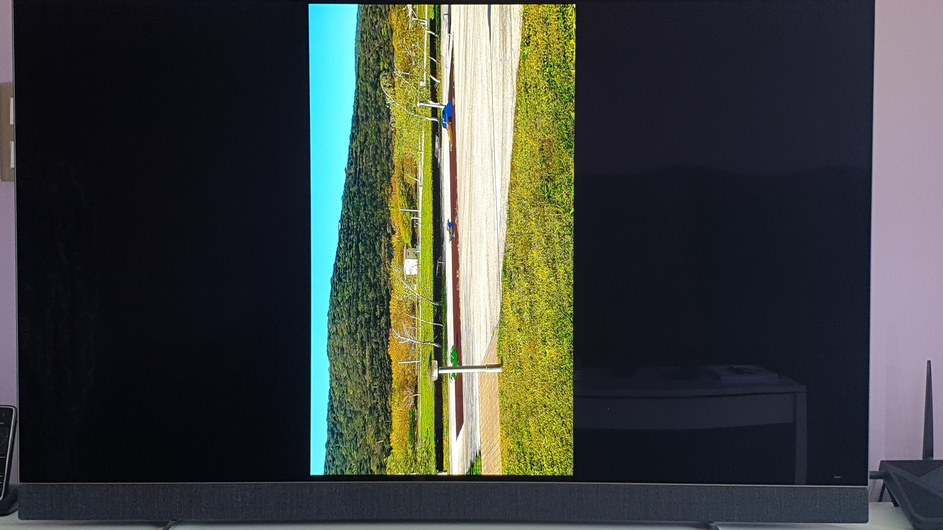

how it plays on TV (teamviewer did not let me take a screenshot :sweat_smile:)

ExifTool Version Number         : 11.93
File Name                       : portrait.mp4
Directory                       : //NAS/Fotografii/Cu Familia/Test
File Size                       : 14 MB
File Modification Date/Time     : 2020:04:11 09:52:55+02:00
File Access Date/Time           : 2020:04:11 10:10:59+02:00
File Creation Date/Time         : 2020:04:11 09:54:45+02:00
File Permissions                : rw-rw-rw-
File Type                       : MP4
File Type Extension             : mp4
MIME Type                       : video/mp4
Major Brand                     : MP4 v2 [ISO 14496-14]
Minor Version                   : 0.0.0
Compatible Brands               : isom, mp42
Media Data Size                 : 14792993
Media Data Offset               : 32
Movie Header Version            : 0
Create Date                     : 2020:04:11 07:52:55
Modify Date                     : 2020:04:11 07:52:55
Time Scale                      : 1000
Duration                        : 8.15 s
Preferred Rate                  : 1
Preferred Volume                : 100.00%
Preview Time                    : 0 s
Preview Duration                : 0 s
Poster Time                     : 0 s
Selection Time                  : 0 s
Selection Duration              : 0 s
Current Time                    : 0 s
Next Track ID                   : 3
Play Mode                       : SEQ_PLAY
Android Version                 : 10
Com Android Capture Fps         : 30
Track Header Version            : 0
Track Create Date               : 2020:04:11 07:52:55
Track Modify Date               : 2020:04:11 07:52:55
Track ID                        : 1
Track Duration                  : 8.15 s
Track Layer                     : 0
Track Volume                    : 0.00%
Image Width                     : 1920
Image Height                    : 1080
Graphics Mode                   : srcCopy
Op Color                        : 0 0 0
Compressor ID                   : avc1
Source Image Width              : 1920
Source Image Height             : 1080
X Resolution                    : 72
Y Resolution                    : 72
Bit Depth                       : 24
Pixel Aspect Ratio              : 65536:65536
Color Representation            : nclx 1 1 1
Video Frame Rate                : 29.953
Matrix Structure                : 1 0 0 0 1 0 0 0 1
Media Header Version            : 0
Media Create Date               : 2020:04:11 07:52:55
Media Modify Date               : 2020:04:11 07:52:55
Media Time Scale                : 48000
Media Duration                  : 8.11 s
Handler Type                    : Audio Track
Handler Description             : SoundHandle
Balance                         : 0
Audio Format                    : mp4a
Audio Channels                  : 2
Audio Bits Per Sample           : 16
Audio Sample Rate               : 48000
Image Size                      : 1920x1080
Megapixels                      : 2.1
Avg Bitrate                     : 14.5 Mbps
Rotation                        : 90

landscape (16:9) - exif information

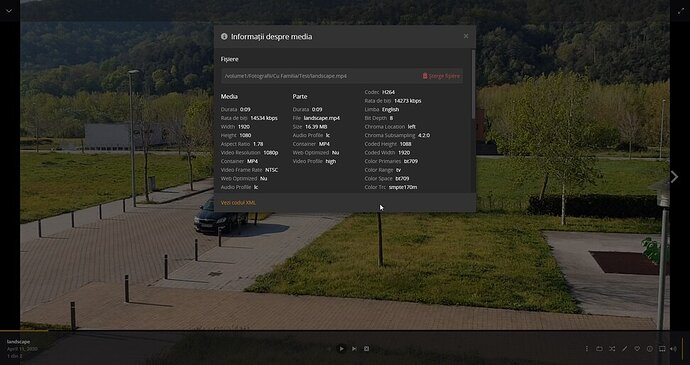

image is from Plex on Windows 10 client

ExifTool Version Number         : 11.93
File Name                       : landscape.mp4
Directory                       : //NAS/Fotografii/Cu Familia/Test
File Size                       : 16 MB
File Modification Date/Time     : 2020:04:11 09:53:13+02:00
File Access Date/Time           : 2020:04:11 10:09:49+02:00
File Creation Date/Time         : 2020:04:11 09:54:45+02:00
File Permissions                : rw-rw-rw-
File Type                       : MP4
File Type Extension             : mp4
MIME Type                       : video/mp4
Major Brand                     : MP4 v2 [ISO 14496-14]
Minor Version                   : 0.0.0
Compatible Brands               : isom, mp42
Media Data Size                 : 17182254
Media Data Offset               : 32
Movie Header Version            : 0
Create Date                     : 2020:04:11 07:53:13
Modify Date                     : 2020:04:11 07:53:13
Time Scale                      : 1000
Duration                        : 9.46 s
Preferred Rate                  : 1
Preferred Volume                : 100.00%
Preview Time                    : 0 s
Preview Duration                : 0 s
Poster Time                     : 0 s
Selection Time                  : 0 s
Selection Duration              : 0 s
Current Time                    : 0 s
Next Track ID                   : 3
Play Mode                       : SEQ_PLAY
Android Version                 : 10
Com Android Capture Fps         : 30
Track Header Version            : 0
Track Create Date               : 2020:04:11 07:53:13
Track Modify Date               : 2020:04:11 07:53:13
Track ID                        : 1
Track Duration                  : 9.46 s
Track Layer                     : 0
Track Volume                    : 0.00%
Image Width                     : 1920
Image Height                    : 1080
Graphics Mode                   : srcCopy
Op Color                        : 0 0 0
Compressor ID                   : avc1
Source Image Width              : 1920
Source Image Height             : 1080
X Resolution                    : 72
Y Resolution                    : 72
Bit Depth                       : 24
Pixel Aspect Ratio              : 65536:65536
Color Representation            : nclx 1 1 1
Video Frame Rate                : 30.017
Matrix Structure                : 1 0 0 0 1 0 0 0 1
Media Header Version            : 0
Media Create Date               : 2020:04:11 07:53:13
Media Modify Date               : 2020:04:11 07:53:13
Media Time Scale                : 48000
Media Duration                  : 9.43 s
Handler Type                    : Audio Track
Handler Description             : SoundHandle
Balance                         : 0
Audio Format                    : mp4a
Audio Channels                  : 2
Audio Bits Per Sample           : 16
Audio Sample Rate               : 48000
Image Size                      : 1920x1080
Megapixels                      : 2.1
Avg Bitrate                     : 14.5 Mbps
Rotation                        : 0

Hi again, I did some testing on this:
https://exiftool.org/
https://ffmpeg.org/ffmpeg.html

  • The problem really is with the TV or Android TV not sure yet (My family has the same playback problems from my Plex server and they all use this OS-type TVs, diferent brands). I used the same videos and played directly from USB with the same result so no blame to PLEX this time :slight_smile:
  • I tried to change the orientation metadata (exif) by using exiftool and ffmpeg command line with no result/improvement
  • I re-encoded the videos using the Windows 10 default video editing tools and then the video played correctly (yes VLC shows diferent orientation matrix now)

So I believe there is more than this orientation tag/information that some players use to correct and display the video correctly.

The question is, can I make a request to have some more playback options/settings when playing a video/photo ? Change the orientation ourselves ? etc. Otherwise is a real pain to re-encode all these videos and the future ones. You give recomendations to people but they still do what they want :slight_smile:

Hi I’m having exactly the same problem with my Sony Bravia TV, see my post in this thread. [BUG] Plex Photos Android TV beta - Video Orientation Issue

Seems to be an Android TV issue as it’s across multiple TV brands and as I say in the other thread it persists even when I use othe media players like the native app and VLC, so not caused by Plex but it would be great if you could fix it!
