Plex Media Server not starting on Synology DS1019+ "Failed to run the package service"

Plex Media Server NAS & Devices
1

Server Version#:1.20.1.3525-a78fef9a9
Player Version#:1.16.0.1364-da192ff7
OS Version#: 6.2.3-25426 Update 2

I’ve gone through the entirety of the troubleshooting in this thread.

It still doesn’t run! ANY help will be gratefully appreciated.

2020-09-02T20:03:52+01:00 Gravitas synoscgi_SYNO.Core.Package.Uninstallation_1_uninstall[3218]: resource_api.cpp:289 Release service-cfg for Plex Media Server when 0x0004 (done)
2020-09-02T20:04:27+01:00 Gravitas synoscgi_SYNO.Core.Package.Installation_1_install[4349]: resource_api.cpp:190 Acquire service-cfg for Plex Media Server when 0x0001 (done)
2020-09-02T21:19:50+01:00 Gravitas [ 5968.055527] init: pkgctl-Plex Media Server pre-start process (16659) terminated with status 1
2020-09-02T21:19:50+01:00 Gravitas synoscgi_SYNO.Core.Package.Control_1_start[16525]: servicecfg_internal_lib.c:22 Failed to start job [pkgctl-Plex Media Server][0xD900 manager.cpp:204]
2020-09-02T21:19:51+01:00 Gravitas synoscgi_SYNO.Core.Package.Control_1_start[16525]: pkgstartstop.cpp:371 Failed to start pkgctl-Plex Media Server (err=-1) [0xD900 manager.cpp:204]
2020-09-02T21:28:29+01:00 Gravitas [ 6487.081982] init: pkgctl-Plex Media Server pre-start process (23469) terminated with status 1
2020-09-02T21:28:29+01:00 Gravitas synoscgi_SYNO.Core.Package.Control_1_start[23327]: servicecfg_internal_lib.c:22 Failed to start job [pkgctl-Plex Media Server][0xD900 manager.cpp:204]
2020-09-02T21:28:30+01:00 Gravitas synoscgi_SYNO.Core.Package.Control_1_start[23327]: pkgstartstop.cpp:371 Failed to start pkgctl-Plex Media Server (err=-1) [0xD900 manager.cpp:204]
sh-4.3#

Here are part of the error logs I can’t seem to upload the text file of them

2

are you able to SSH into the Synology?

3

Yes I can SSH in to the synology.

4

SSH into it.

  1. su - or sudo -su root (whichever is easier for you) to get to the root prompt
  2. cd /var/packages/Plex*/scripts (the * saves typing)
  3. ./start-stop-status start

See what the console returns.

5

I did and this is what I got.

sh-4.3# ./start-stop-status start
Starting Plex ...
sh-4.3#

Plex is still not running.

6

I didn’t expect it to run.
I was hoping it would print out errors but none showed.

Please go back to File Station.
Open the Plex share
Drill down into Library -> until you see Logs
Right-click Logs and Compress to Logs.zip

download and attach that please.

7

logs.zip (2.0 MB)

file attached as requested

8

Thanks, that is explicit. The database became corrupted.

Sep 03, 2020 00:26:58.543 [0x7fa4330de700] INFO - Plex Media Server v1.20.1.3252-a78fef9a9 - Synology DS1019+ x86_64 - build: linux-x86_64 synology - GMT 01:00
Sep 03, 2020 00:26:58.543 [0x7fa4330de700] INFO - Linux version: DSM 6.2.3.25426-2, language: en-US
Sep 03, 2020 00:26:58.543 [0x7fa4330de700] INFO - Processor Intel(R) Celeron(R) CPU J3455 @ 1.50GHz
Sep 03, 2020 00:26:58.543 [0x7fa4330de700] INFO - /var/packages/Plex Media Server/target/Plex Media Server
Sep 03, 2020 00:26:58.838 [0x7fa43d074740] INFO - SQLITE3:(nil), 283, recovered 94 frames from WAL file /volume1/Plex/Library/Application Support/Plex Media Server/Plug-in Support/Databases/com.plexapp.plugins.library.db-wal
Sep 03, 2020 00:26:58.838 [0x7fa43d074740] ERROR - SQLITE3:(nil), 11, database corruption at line 66053 of [bf8c1b2b7a]
Sep 03, 2020 00:26:58.838 [0x7fa43d074740] ERROR - SQLITE3:(nil), 11, database disk image is malformed in "PRAGMA cache_size=2000"
Sep 03, 2020 00:26:58.839 [0x7fa43d074740] ERROR - Database corruption: sqlite3_statement_backend::prepare: database disk image is malformed for SQL: PRAGMA cache_size=2000
Sep 03, 2020 00:26:58.839 [0x7fa43d074740] ERROR - Error: Unable to set up server: sqlite3_statement_backend::prepare: database disk image is malformed for SQL: PRAGMA cache_size=2000 (N4soci10soci_errorE)

Please read through here carefully.

As you replace the com.plexapp.plugins.library.db, remember to delete the WAL and SHM file which are matched to it if they exist.

Ask if any questions.

9

Thank you! That fixed it perfectly! I am taking all the steps as laid out now to rescan all the libraries. Thank you for your help.

10

Glad I could help

11

today i updated the Plex application and when i went to run it, i received the message “failed to run the package service”. i have tried to uninstall PMS and re-install with no luck. how can I get plex running again. DS920+

12

Please go to the Logs directory,

Right-Click Logs then Compress to Logs.zip

download and attach that ZIP file please.

13

I think this is the log directory. sorry, I a new to NAS and relatively new to Plex I hope this is it.

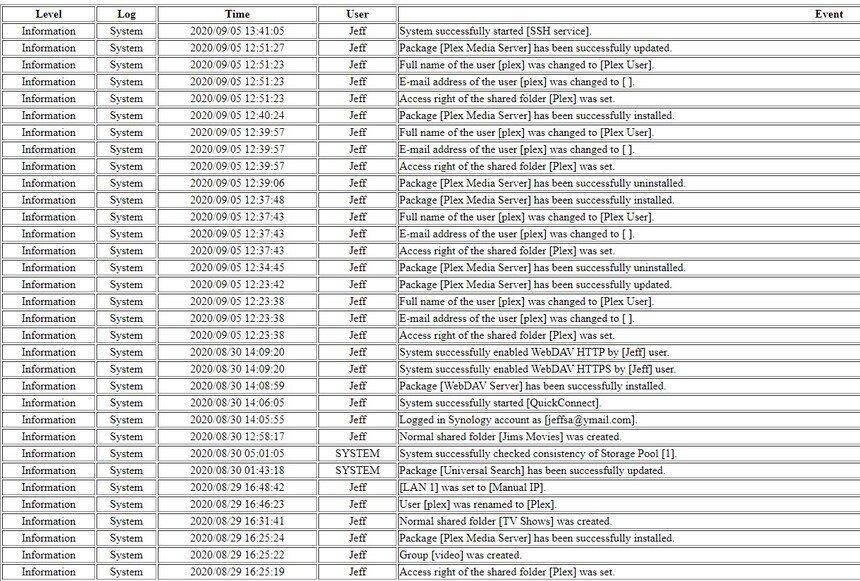

Synology Log
Synology Log860×581 197 KB

14

Sorry, that’s not what I was hoping for.

File Station -> Plex share -> Library - Application Support - Plex Media Server -> Logs

Make a ZIP of this folder please.

16

Thank you for the path steps. I found “logs” and right click on the folder and download. It creates a zip file but it error out when i try to upload it. The file size is 119,500KB. Maybe this is too large?

17

That’s the wrong file then.. your logs should be 25-50 MB maximum before compressing.

It seems like you compressed the entire Plex share.

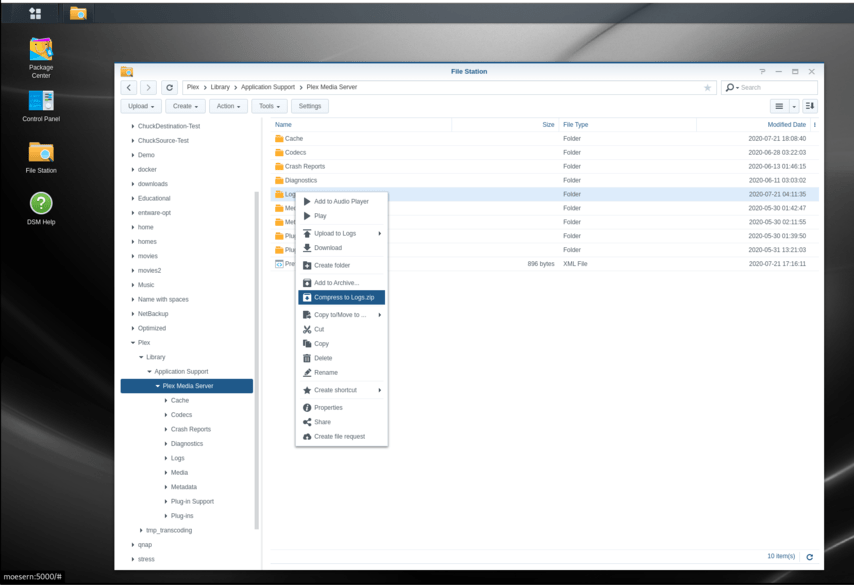

Untitled
Untitled854×585 54.5 KB

18

ok trying again

19

Logs.zip (8.5 MB)

Got, i hope.

also here is a screen shot of my directory file. My plex data (movies etc) are stored in the folder above Plex (Movies, Music, Pictures) Not sure if this makes a difference

Logs file structure
Logs file structure995×503 102 KB

20

That’s it.

Analyzing now.

21

Your logs show the server was commanded to shut down

Sep 05, 2020 12:15:24.670 [0x7f102f447700] DEBUG - [CompanionProxy] player n7c49f08abg15pdmewdapwdh was last refreshed 30 seconds ago
Sep 05, 2020 12:15:25.596 [0x7f10b75da700] DEBUG - Shutting down with signal 15 (Terminated)
Sep 05, 2020 12:15:25.596 [0x7f10b75da700] DEBUG - Ordered to stop server.
Sep 05, 2020 12:15:25.596 [0x7f10b75da700] WARN - Timed out waiting for server to finish.
Sep 05, 2020 12:15:25.596 [0x7f10c185d740] DEBUG - Stopping server...
Sep 05, 2020 12:15:25.596 [0x7f10c185d740] DEBUG - HttpServer: Stopping server.
Sep 05, 2020 12:15:25.596 [0x7f10b4f75700] DEBUG - TranscodeJobManager: [Running] onServerShutdown
Sep 05, 2020 12:15:25.596 [0x7f10b4f75700] DEBUG - TranscodeJobManager: [Running] -> [Shutdown]
Sep 05, 2020 12:15:25.596 [0x7f10b4f75700] DEBUG - MetadataItemClusterRequestHandler: a shutdown event has been received
Sep 05, 2020 12:15:25.596 [0x7f10c185d740] DEBUG - Server stopped.
Sep 05, 2020 12:15:25.596 [0x7f10c185d740] DEBUG - NetworkService: Stopping advertisement.
Sep 05, 2020 12:15:25.596 [0x7f10c185d740] DEBUG - Killing plug-ins.
Sep 05, 2020 12:15:25.596 [0x7f10c185d740] DEBUG - [com.plexapp.system] Killing.
Sep 05, 2020 12:15:25.597 [0x7f10c185d740] DEBUG - Waiting for Plex Tuner Service to exit.
Sep 05, 2020 12:15:25.618 [0x7f10b75da700] WARN - JobManager: Could not find job for handle 6743
Sep 05, 2020 12:15:25.666 [0x7f10b75da700] DEBUG - Jobs: '/volume1/@appstore/Plex Media Server/Plex Tuner Service' exit code for process 5351 is 0 (success)
Sep 05, 2020 12:15:25.667 [0x7f10b5263700] DEBUG - Plex Tuner Service exited.
Sep 05, 2020 12:15:25.671 [0x7f10c185d740] DEBUG - Killing job.
Sep 05, 2020 12:15:25.671 [0x7f10c185d740] DEBUG - Signalling job ID 29674 with 9
Sep 05, 2020 12:15:25.671 [0x7f10c185d740] DEBUG - Database: Shutting down.
Sep 05, 2020 12:15:25.671 [0x7f10c185d740] DEBUG - Captured session 0.
Sep 05, 2020 12:15:25.671 [0x7f10c185d740] DEBUG - Captured session 1.
Sep 05, 2020 12:15:25.671 [0x7f10c185d740] DEBUG - Captured session 2.
Sep 05, 2020 12:15:25.671 [0x7f10c185d740] DEBUG - Captured session 3.

Which version did you install?

From what I can discern, this is PMS 1.19.5.

Sep 05, 2020 11:53:48.706 [0x7f10b78c8700] INFO - Plex Media Server v1.19.5.3112-b23ab3896 - Synology DS920+ x86_64 - build: linux-x86_64 synology - GMT -05:00
Sep 05, 2020 11:53:48.707 [0x7f10b78c8700] INFO - Linux version: DSM 6.2.3.25426-2, language: en-US
