Plex will not show TV Guide and has stopped recording

[dzeff]

Server Version#: Version 1.25.8.5663
Player Version#:
Tuner Make/Model: WinTV-dualHD
Guide/Lineup name:
Using XMLTV?:
Channel number/Name:

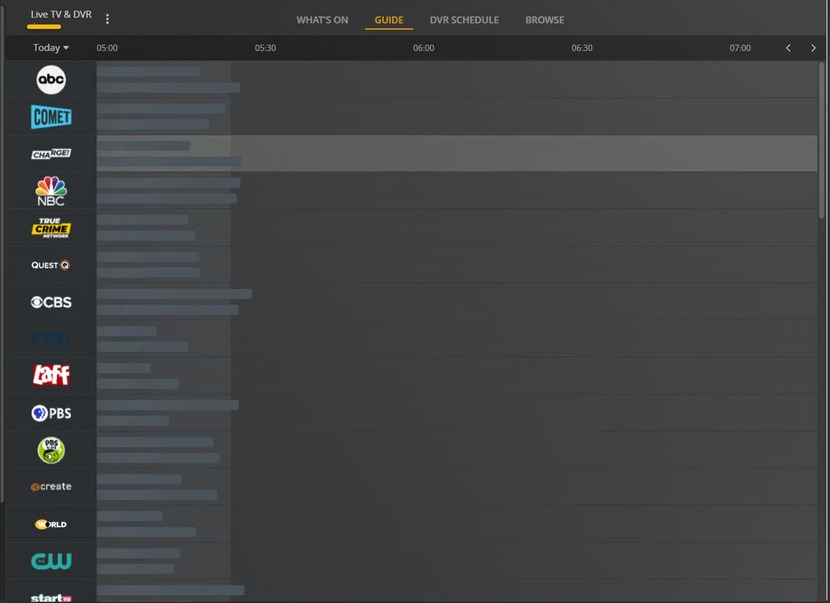

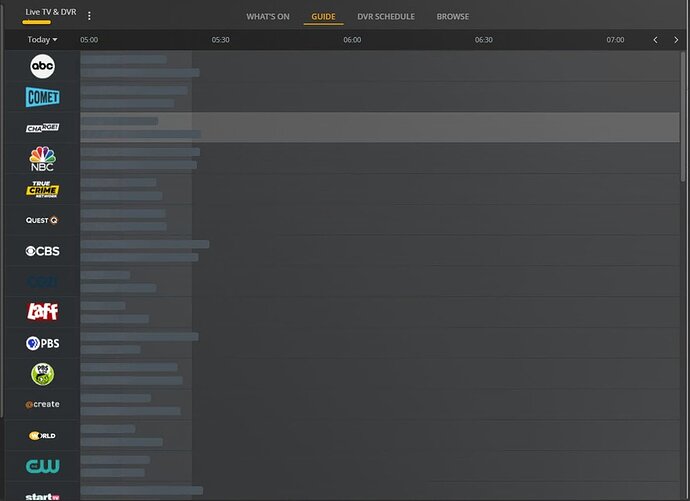

My DVR on Windows 10 stopped recording a couple of days ago and when I try to look at the guide, on the local box or another computer this is what I see:

I have tried the following:

• Refresh guide.
• Remove the WinTV tuner and re-add it.
• I have rebuilt the db because the attached log files should show corruption.

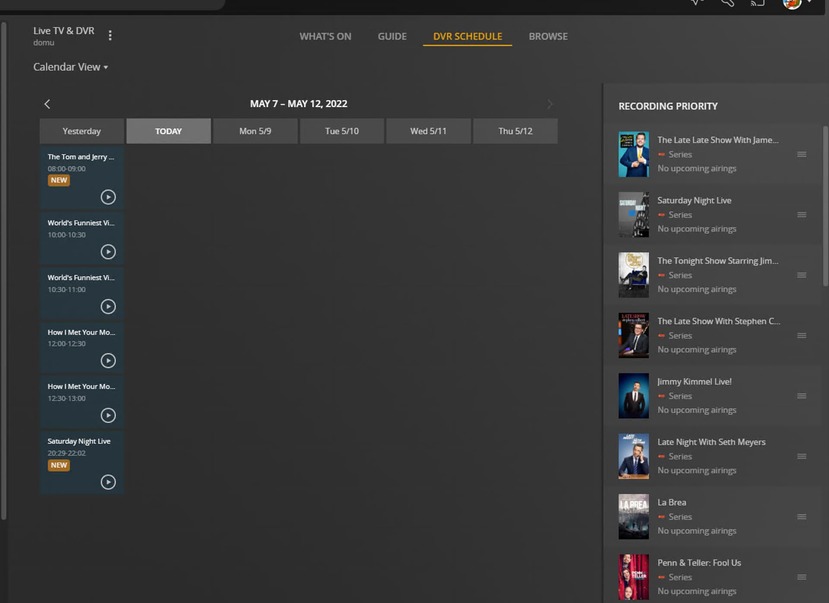

What else do I have to do to get the DVR to show me what is on the channels and to start recording shows agin. This next image shows that there are no ‘upcoming’ recordings

But you can see that my NVidia Shield shows that the Tonight Show and Colbert have an upcoming episode

Plex Media Server Logs_2022-05-06_10-37-33.zip (4.2 MB)

[dzeff]

Here is the entry from when I tried to record Little House on the Prairie.

Plex Media Server Logs_2022-05-06_10-55-56.zip (3.4 MB)

ay 06, 2022 10:55:32.510 [9608] DEBUG - Request: [192.168.0.108:49538 (Subnet)] GET /library/sections (9 live) TLS GZIP Signed-in Token (Dzeff) (Chrome)
May 06, 2022 10:55:32.510 [14320] DEBUG - Request: [192.168.0.108:49551 (Subnet)] GET /media/subscriptions/template?guid=plex%3A%2F%2Fepisode%2F5fc703dda62668002dce5e32 (9 live) TLS GZIP Signed-in Token (Dzeff) (Chrome)
May 06, 2022 10:55:32.510 [14320] DEBUG - Downloading document http://127.0.0.1:32400/tv.plex.providers.epg.cloud:12/metadata/plex%3A%2F%2Fepisode%2F5fc703dda62668002dce5e32/subscription/modes?includeMarkers=1&includeParentKey=1&includePreferences=1
May 06, 2022 10:55:32.517 [6592] DEBUG - Completed: [192.168.0.108:49538] 200 GET /library/sections (9 live) TLS GZIP 7ms 3038 bytes (pipelined: 16)
May 06, 2022 10:55:32.528 [14320] DEBUG - Subscription: No existing library item show ‘guid: plex://show/5fc6ae1ff21710002d6c2796 ratingKey: plex%3A%2F%2Fshow%2F5fc6ae1ff21710002d6c2796 thumb: https://metadata-static.plex.tv/e/gracenote/e2a12b73fc228310c2c3b7a01ad1fbc9.jpg title: Little House on the Prairie type: show year: 1974’
May 06, 2022 10:55:32.533 [6592] DEBUG - Completed: [192.168.0.108:49551] 200 GET /media/subscriptions/template?guid=plex%3A%2F%2Fepisode%2F5fc703dda62668002dce5e32 (9 live) TLS GZIP 23ms 2465 bytes (pipelined: 9)
May 06, 2022 10:55:32.636 [14320] DEBUG - Request: [192.168.0.108:49551 (Subnet)] GET /photo/:/transcode?width=240&height=360&minSize=1&upscale=1&url=https%3A%2F%2Fmetadata-static.plex.tv%2Fe%2Fgracenote%2Fe2a12b73fc228310c2c3b7a01ad1fbc9.jpg (9 live) TLS GZIP Signed-in Token (Dzeff) (Chrome)
May 06, 2022 10:55:32.648 [14320] DEBUG - Photo transcoder: Request for url [https://metadata-static.plex.tv/e/gracenote/e2a12b73fc228310c2c3b7a01ad1fbc9.jpg] (is local: 0 upscaled: 1)
May 06, 2022 10:55:32.650 [14320] DEBUG - The cache file did not exist, but the original did [C:\Users\jeff\AppData\Local\Plex Media Server\Cache\PhotoTranscoder\30\3088151c0da2000bf59d21327d5d427e5c82905a.jpg].
May 06, 2022 10:55:32.735 [14320] DEBUG - Created thumbnail of size 240x360, has pixels: 1
May 06, 2022 10:55:32.747 [6592] DEBUG - Completed: [192.168.0.108:49551] 200 GET /photo/:/transcode?width=240&height=360&minSize=1&upscale=1&url=https%3A%2F%2Fmetadata-static.plex.tv%2Fe%2Fgracenote%2Fe2a12b73fc228310c2c3b7a01ad1fbc9.jpg (9 live) TLS GZIP 110ms 23743 bytes (pipelined: 10)
May 06, 2022 10:55:34.382 [14172] DEBUG - PublicAddressManager: Obtaining public address and mapping port.
May 06, 2022 10:55:34.382 [14848] DEBUG - PublicAddressManager: Obtaining public IP.
May 06, 2022 10:55:34.383 [14848] DEBUG - HTTP requesting GET http://plex.tv/pms/:/ip
May 06, 2022 10:55:34.455 [0424] DEBUG - Request: [192.168.0.108:49551 (Subnet)] POST /media/subscriptions?prefs%5BminVideoQuality%5D=0&prefs%5BreplaceLowerQuality%5D=false&prefs%5BrecordPartials%5D=false&prefs%5BstartOffsetMinutes%5D=0&prefs%5BendOffsetMinutes%5D=0&prefs%5BlineupChannel%5D=&prefs%5BstartTimeslot%5D=-1&prefs%5BcomskipEnabled%5D=-1&prefs%5BcomskipMethod%5D=1&prefs%5BoneShot%5D=true&prefs%5BremoteMedia%5D=false&targetLibrarySectionID=22&targetSectionLocationID=&includeGrabs=1&hints%5BgrandparentGuid%5D=plex%3A%2F%2Fshow%2F5fc6ae1ff21710002d6c2796&hints%5BgrandparentThumb%5D=https%3A%2F%2Fmetadata-static%2Eplex%2Etv%2Fe%2Fgracenote%2Fe2a12b73fc228310c2c3b7a01ad1fbc9%2Ejpg&hints%5BgrandparentTitle%5D=Little%20House%20on%20the%20Prairie&hints%5BgrandparentYear%5D=1974&hints%5Bguid%5D=plex%3A%2F%2Fepisode%2F5fc703dda62668002dce5e32&hints%5Bindex%5D=17&hints%5BoriginallyAvailableAt%5D=1975-01-21&hints%5BparentGuid%5D=plex%3A%2F%2Fseason%2F5fc6ae1ff21710002d6c2796%2F1&hints%5BparentIndex%5D=1&hints%5BparentTitle%5D=Season%201&hints%5BratingKey%5D=plex%253A%252F%252Fepisode%252F5fc703dda62668002dce5e32&hints%5Bthumb%5D=https%3A%2F%2Fmetadata-static%2Eplex%2Etv%2F7%2Fgracenote%2F7bc0aa8b2068ee8409a776bcadfb30f6%2Ejpg&hints%5Btitle%5D=Doctor%27s%20Lady&hints%5Btype%5D=4&hints%5Byear%5D=1975&params%5BairingChannels%5D=5fc76b83a05ef8002e7a77fe-5fc705f4a62668002dcefd04%253D7%25252E2%252520K17IZD2%252520%252528COZI%252520TV%252529&params%5BairingTimes%5D=1651860000&params%5BlibraryType%5D=2&params%5BmediaProviderID%5D=13&type=4 (9 live) TLS GZIP Signed-in Token (Dzeff) (Chrome)
May 06, 2022 10:55:34.485 [13112] DEBUG - Request: [192.168.0.108:49538 (Subnet)] GET /tv.plex.providers.epg.cloud:12/grid?channelGridKey=5fc76b83a05ef8002e7a77fe-5fc705f4a62668002dcefd04&date=2022-05-06 (9 live) TLS GZIP Signed-in Token (Dzeff) (Chrome)
May 06, 2022 10:55:34.492 [0424] DEBUG - Subscription: No existing library item episode ‘grandparentGuid: plex://show/5fc6ae1ff21710002d6c2796 grandparentThumb: https://metadata-static.plex.tv/e/gracenote/e2a12b73fc228310c2c3b7a01ad1fbc9.jpg grandparentTitle: Little House on the Prairie grandparentYear: 1974 guid: plex://episode/5fc703dda62668002dce5e32 index: 17 originallyAvailableAt: 1975-01-21 parentGuid: plex://season/5fc6ae1ff21710002d6c2796/1 parentIndex: 1 parentTitle: Season 1 ratingKey: plex%3A%2F%2Fepisode%2F5fc703dda62668002dce5e32 thumb: https://metadata-static.plex.tv/7/gracenote/7bc0aa8b2068ee8409a776bcadfb30f6.jpg title: Doctor’s Lady type: 4 year: 1975’
May 06, 2022 10:55:34.496 [13112] ERROR - SQLITE3:0xeee01b37, 11, database corruption at line 67183 of [1b256d97b5]
May 06, 2022 10:55:34.496 [13112] ERROR - SQLITE3:0xeee01b37, 11, statement aborts at 142: [select distinct grandparents.id as metadata_items_grandparents_id,grandparents.title as metadata_items_grandparents_title,grandparents.user_thumb_url as metadata_items_grandparents_us
May 06, 2022 10:55:34.497 [13112] ERROR - Soci Exception handled: sqlite3_statement_backend::loadRS: database disk image is malformed
May 06, 2022 10:55:34.497 [6588] DEBUG - Completed: [192.168.0.108:49538] 500 GET /tv.plex.providers.epg.cloud:12/grid?channelGridKey=5fc76b83a05ef8002e7a77fe-5fc705f4a62668002dcefd04&date=2022-05-06 (9 live) TLS GZIP 12ms 530 bytes (pipelined: 17)
May 06, 2022 10:55:34.500 [0424] ERROR - SQLITE3:0xeee01b37, 11, database corruption at line 67183 of [1b256d97b5]
May 06, 2022 10:55:34.500 [0424] ERROR - SQLITE3:0xeee01b37, 11, statement aborts at 14: [SELECT level, idx, end_block FROM ‘main’.‘fts4_metadata_titles_icu_segdir’ WHERE level BETWEEN ? AND ? ORDER BY level DESC, idx ASC] database disk image is malformed
May 06, 2022 10:55:34.501 [0424] ERROR - Failed to commit transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127) (tries=1): Cannot commit transaction. database disk image is malformed
May 06, 2022 10:55:34.755 [0424] ERROR - SQLITE3:0xeee01b37, 1, statement aborts at 1: [COMMIT] cannot commit - no transaction is active
May 06, 2022 10:55:34.755 [0424] ERROR - Failed to commit transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127) (tries=2): Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:34.850 [6252] DEBUG - TrayIcon::WindowProc received DisplayIcon timer message
May 06, 2022 10:55:34.850 [6252] WARN - Shell_NotifyIcon(NIM_ADD) failed: 0x80004005
May 06, 2022 10:55:35.020 [0424] ERROR - SQLITE3:0xeee01b37, 1, statement aborts at 1: [COMMIT] cannot commit - no transaction is active
May 06, 2022 10:55:35.020 [0424] ERROR - Failed to commit transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127) (tries=3): Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:35.143 [6616] DEBUG - [HttpClient] HTTP/2.0 (0.8s) 200 response from GET http://plex.tv/pms/:/ip
May 06, 2022 10:55:35.147 [14848] DEBUG - PublicAddressManager: Got public IP from http://plex.tv: 50.35.115.7
May 06, 2022 10:55:35.285 [0424] ERROR - SQLITE3:0xeee01b37, 1, statement aborts at 1: [COMMIT] cannot commit - no transaction is active
May 06, 2022 10:55:35.285 [0424] ERROR - Failed to commit transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127) (tries=4): Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:35.549 [0424] ERROR - SQLITE3:0xeee01b37, 1, statement aborts at 1: [COMMIT] cannot commit - no transaction is active
May 06, 2022 10:55:35.549 [0424] ERROR - Failed to commit transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127) (tries=5): Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:35.810 [0424] ERROR - SQLITE3:0xeee01b37, 1, statement aborts at 1: [COMMIT] cannot commit - no transaction is active
May 06, 2022 10:55:35.810 [0424] ERROR - Failed to commit transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127) (tries=6): Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:36.078 [0424] ERROR - SQLITE3:0xeee01b37, 1, statement aborts at 1: [COMMIT] cannot commit - no transaction is active
May 06, 2022 10:55:36.079 [0424] ERROR - Failed to commit transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127) (tries=7): Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:36.338 [0424] ERROR - SQLITE3:0xeee01b37, 1, statement aborts at 1: [COMMIT] cannot commit - no transaction is active
May 06, 2022 10:55:36.338 [0424] ERROR - Failed to commit transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127) (tries=8): Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:36.601 [0424] ERROR - SQLITE3:0xeee01b37, 1, statement aborts at 1: [COMMIT] cannot commit - no transaction is active
May 06, 2022 10:55:36.601 [0424] ERROR - Failed to commit transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127) (tries=9): Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:36.864 [0424] ERROR - SQLITE3:0xeee01b37, 1, statement aborts at 1: [COMMIT] cannot commit - no transaction is active
May 06, 2022 10:55:36.864 [0424] ERROR - Failed to commit transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127) (tries=10): Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:36.864 [0424] ERROR - Exception inside transaction (inside=1) (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1127): Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:36.864 [0424] ERROR - SQLITE3:0xeee01b37, 1, statement aborts at 1: [ROLLBACK] cannot rollback - no transaction is active
May 06, 2022 10:55:36.864 [0424] ERROR - Failed to roll back transaction (E:\jenkins\server\3587903764\Library\MetadataItem.cpp:1125): Cannot rollback transaction. cannot rollback - no transaction is active
May 06, 2022 10:55:36.865 [0424] ERROR - Soci Exception handled: Cannot commit transaction. cannot commit - no transaction is active
May 06, 2022 10:55:36.865 [6588] DEBUG - Completed: [192.168.0.108:49551] 500 POST /media/subscriptions?prefs%5BminVideoQuality%5D=0&prefs%5BreplaceLowerQuality%5D=false&prefs%5BrecordPartials%5D=false&prefs%5BstartOffsetMinutes%5D=0&prefs%5BendOffsetMinutes%5D=0&prefs%5BlineupChannel%5D=&prefs%5BstartTimeslot%5D=-1&prefs%5BcomskipEnabled%5D=-1&prefs%5BcomskipMethod%5D=1&prefs%5BoneShot%5D=true&prefs%5BremoteMedia%5D=false&targetLibrarySectionID=22&targetSectionLocationID=&includeGrabs=1&hints%5BgrandparentGuid%5D=plex%3A%2F%2Fshow%2F5fc6ae1ff21710002d6c2796&hints%5BgrandparentThumb%5D=https%3A%2F%2Fmetadata-static%2Eplex%2Etv%2Fe%2Fgracenote%2Fe2a12b73fc228310c2c3b7a01ad1fbc9%2Ejpg&hints%5BgrandparentTitle%5D=Little%20House%20on%20the%20Prairie&hints%5BgrandparentYear%5D=1974&hints%5Bguid%5D=plex%3A%2F%2Fepisode%2F5fc703dda62668002dce5e32&hints%5Bindex%5D=17&hints%5BoriginallyAvailableAt%5D=1975-01-21&hints%5BparentGuid%5D=plex%3A%2F%2Fseason%2F5fc6ae1ff21710002d6c2796%2F1&hints%5BparentIndex%5D=1&hints%5BparentTitle%5D=Season%201&hints%5BratingKey%5D=plex%253A%252F%252Fepisode%252F5fc703dda62668002dce5e32&hints%5Bthumb%5D=https%3A%2F%2Fmetadata-static%2Eplex%2Etv%2F7%2Fgracenote%2F7bc0aa8b2068ee8409a776bcadfb30f6%2Ejpg&hints%5Btitle%5D=Doctor%27s%20Lady&hints%5Btype%5D=4&hints%5Byear%5D=1975&params%5BairingChannels%5D=5fc76b83a05ef8002e7a77fe-5fc705f4a62668002dcefd04%253D7%25252E2%252520K17IZD2%252520%252528COZI%252520TV%252529&params%5BairingTimes%5D=1651860000&params%5BlibraryType%5D=2&params%5BmediaProviderID%5D=13&type=4 (9 live) TLS GZIP 2410ms 530 bytes (pipelined: 11)

[dzeff]

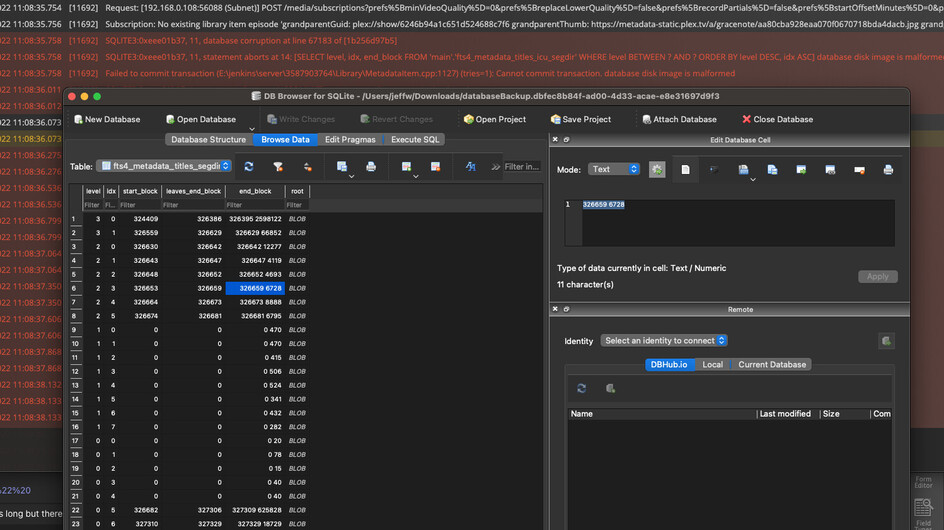

i downloaded a sql lite db ‘browser’ for a quick peak. This is what is in the table that appears to be in question.

Is there a ‘reset’ / ‘clean’ option I can do, since ‘optimize database’ didn’t seem to fix anything?

[hokierulz]

@dzeff

May 06, 2022 10:55:34.496 [13112] ERROR - SQLITE3:0xeee01b37, 11, database corruption at line 67183 of [1b256d97b5]

It appears your database is corrupted. I found an article on repairing a corrupt database, or you could restore a backup.

[dzeff]

Thanks @hokierulz I was just trying that and the automatic process did not fix it. Next step would be to try a manual repair.

The rest of my server is OK, it is just the DVR aspect of it so I’d rather not have to delete server and start again because about 1/3 of all my assets need manual help to identify the correct media.

[hokierulz]

It may be worth trying a delete of the EPG databases while you have your Plex server shut down (I’d suggest moving them elsewhere as a backup.) There should be three files with names starting with “tv.plex.providers.epg.cloud”. You will need to find the Plex data directory and then they are under “(Data Directory)/Plug-in Support/Databases”. Start Plex server after moving them out of this folder and then do an EPG refresh.

This is just a shot since it is hard to know the extent of the database corruption.

[dzeff]

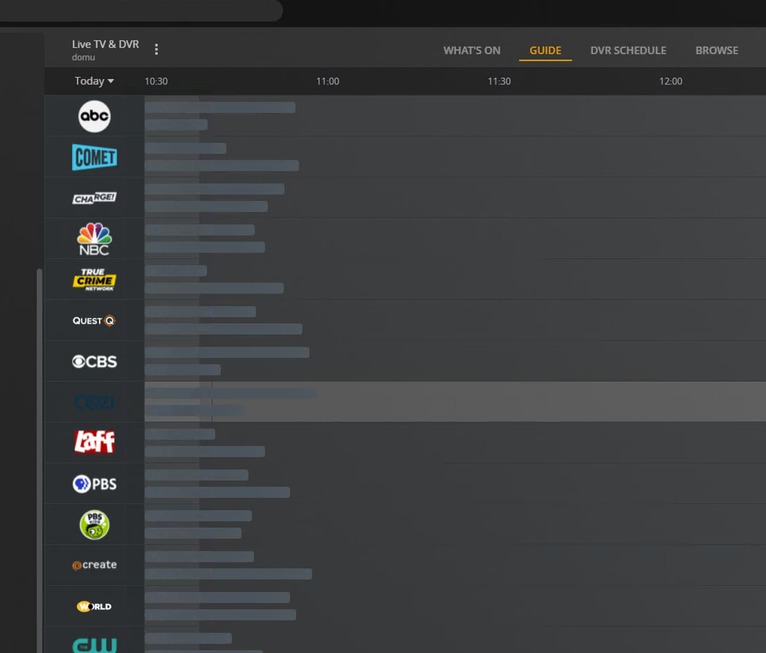

Thanks @hokierulz , I was on a similar track and it appears to have been fixed. You can see from this screen shot that whatever want awry it looks like it was inserting duplicate info so it might have been violating a PK constraint on the db.

For any future people who have a similar issue (on Windows) I:

• Deleted the DVR.
• Exited the Server app in the Windows toolbar.
• Ran ‘repair’ a couple of times.
  ** Problem is, it looks like the repair initialized tables and applied permissions. Didn’t actually ‘repair’ any unexpected (bad) data.
• Started the server application and gave it a minute to warm up.
• Add the DVR and let the guide fully refresh. Even gave it a couple of minutes after it started showing items in the guide.

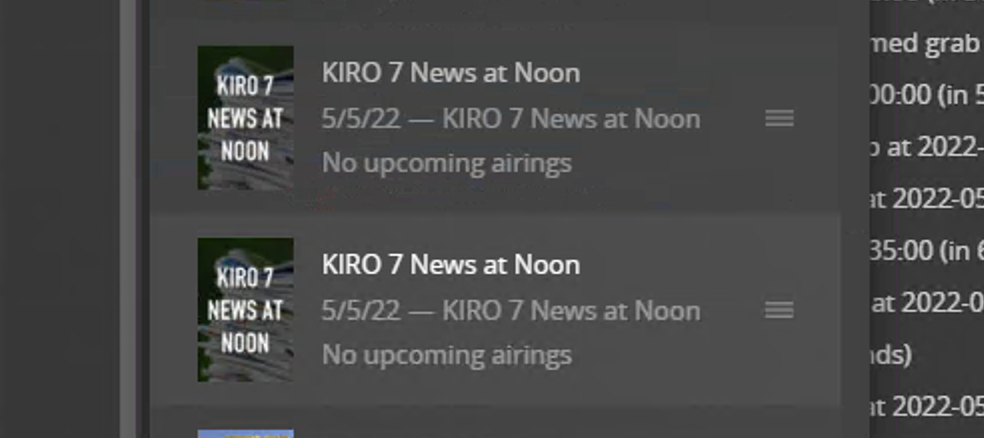

• Clicked to the DVR SCHEDULE and noticed duplicate entries; I deleted the entry showing ‘no upcoming airings’
• Scheduled a couple of new recordings - 1 ‘now’ or within the next 15 min and also one with an ‘All Episodes’ selected, starting somewhat soon.

… so far, everything seems to be OK.

Thanks again for the trouble shooting hokierulz.

[dzeff]

It looks like the problem was not solved with my song and dance because I am right back to no longer recording and it looks like the computer is back to not seeing any recordings in the downloaded guide.

I can use my Shield in the short term but it has the problem of needing to be rebooted every few days or it looses the TV hardware - Recording failed. Please check your tuner or antenna
