Missing media for movies

Although there are other topics about the same issue, I couldn’t manage to solve mine with the provided solutions.

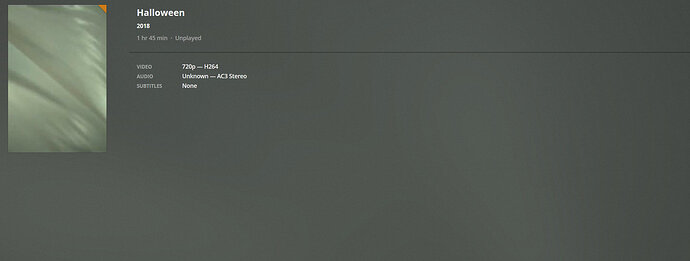

My issue is that PMS doesn’t display posters and actor’s portraits of newly added movies:

The XML of the file:

<MediaContainer size="1" allowSync="1" identifier="com.plexapp.plugins.library" librarySectionID="1" librarySectionTitle="Movies" librarySectionUUID="e1d8bdea-de1f-4cbb-ab9b-984df3c3251f" mediaTagPrefix="/system/bundle/media/flags/" mediaTagVersion="1542980780">
<Video ratingKey="11994" key="/library/metadata/11994" guid="com.plexapp.agents.imdb://tt1270797?lang=en" librarySectionTitle="Movies" librarySectionID="1" librarySectionKey="/library/sections/1" type="movie" title="Venom" contentRating="PG-13" summary="When Eddie Brock acquires the powers of a symbiote, he will have to release his alter-ego "Venom" to save his life." rating="7.0" year="2018" thumb="/library/metadata/11994/thumb/1543714142" art="/library/metadata/11994/art/1543714142" duration="6430486" originallyAvailableAt="2018-10-03" addedAt="1543432242" updatedAt="1543714142" primaryExtraKey="/library/metadata/11995" ratingImage="imdb://image.rating">
<Media videoResolution="720" id="11349" duration="6430486" bitrate="1185" width="1280" height="534" aspectRatio="2.35" audioChannels="2" audioCodec="aac" videoCodec="h264" container="mp4" videoFrameRate="24p" optimizedForStreaming="1" audioProfile="lc" has64bitOffsets="0" videoProfile="high">
<Part accessible="1" exists="1" id="11407" key="/library/parts/11407/1543428573/file.mp4" duration="6430486" file="/volume1/Media/Movies/Venom (2018).mp4" size="952673611" audioProfile="lc" container="mp4" deepAnalysisVersion="2" has64bitOffsets="0" optimizedForStreaming="1" requiredBandwidths="2329,2158,1693,1359,1359,1359,1359,1359" videoProfile="high">
<Stream id="17288" streamType="1" default="1" codec="h264" index="0" bitrate="1050" anamorphic="0" bitDepth="8" chromaLocation="left" chromaSubsampling="4:2:0" frameRate="23.976" hasScalingMatrix="0" height="534" level="41" pixelAspectRatio="801:800" profile="high" refFrames="4" requiredBandwidths="2196,2030,1565,1252,1252,1252,1252,1252" streamIdentifier="1" width="1280" displayTitle="720p (H.264)"/>
<Stream id="17289" streamType="2" selected="1" default="1" codec="aac" index="1" channels="2" bitrate="135" audioChannelLayout="stereo" profile="lc" requiredBandwidths="131,131,131,131,131,131,131,131" samplingRate="48000" streamIdentifier="2" displayTitle="Unbekannt (AAC Stereo)"/>
</Part>
</Media>
<Genre id="136" filter="genre=136" tag="Action"/>
<Genre id="427" filter="genre=427" tag="Sci-Fi"/>
<Director id="7042" filter="director=7042" tag="Ruben Fleischer"/>
<Country id="54" filter="country=54" tag="USA"/>
<Role id="3373" filter="actor=3373" tag="Tom Hardy" role="Eddie Brock"/>
<Role id="3993" filter="actor=3993" tag="Michelle Williams" role="Anne Weying"/>
<Role id="6811" filter="actor=6811" tag="Riz Ahmed" role="Carlton Drake"/>
<Role id="28004" filter="actor=28004" tag="Scott Haze" role="Security Chief Roland Treece"/>
<Role id="28003" filter="actor=28003" tag="Reid Scott" role="Dr. Dan Lewis"/>
<Role id="5487" filter="actor=5487" tag="Jenny Slate" role="Dr. Dora Skirth"/>
<Role id="15320" filter="actor=15320" tag="Melora Walters" role="Homeless Woman Maria"/>
<Role id="425" filter="actor=425" tag="Woody Harrelson" role="Cletus Kasady" thumb="http://image.tmdb.org/t/p/original/1ecdooAHICUhCZKKEKlFtccEmTU.jpg"/>
<Role id="28002" filter="actor=28002" tag="Peggy Lu" role="Mrs. Chen"/>
<Role id="28001" filter="actor=28001" tag="Malcolm C. Murray" role="Lewis Donate"/>
<Extras size="1">
<Video ratingKey="11995" key="/library/metadata/11995" guid="iva://api.internetvideoarchive.com/2.0/DataService/VideoAssets(95255)?lang=en&bitrates=80,212,450,750,1500,2500,5000,8000&duration=171&adaptive=1&dts=0" type="clip" title="Venom (New Zealand Trailer 2)" summary="" index="1" year="2018" thumb="/library/metadata/11995/thumb/1543432351" subtype="trailer" duration="171000" originallyAvailableAt="2018-07-31" addedAt="1543432351" extraType="1">
<Media videoResolution="1080" id="11350" duration="171000" bitrate="2500" width="1920" height="1080" aspectRatio="1.78" audioCodec="aac" videoCodec="h264" container="mp4" premium="1">
<Part id="11408" duration="171000" container="mp4" key="/services/iva/assets/95255/video.mp4?bitrate=2500" optimizedForStreaming="1">
<Stream id="17290" streamType="1" codec="h264" index="0" bitrate="2500" height="1080" width="1920" displayTitle="1080p (H.264)"/>
<Stream id="17291" streamType="2" selected="1" codec="aac" index="1" channels="2" language="English" languageCode="eng" displayTitle="English (AAC Stereo)"/>
</Part>
</Media>
<Media videoResolution="720" id="11351" duration="171000" bitrate="1500" width="1280" height="720" aspectRatio="1.78" audioCodec="aac" videoCodec="h264" container="mp4" premium="1">
<Part id="11409" duration="171000" container="mp4" key="/services/iva/assets/95255/video.mp4?bitrate=1500" optimizedForStreaming="1">
<Stream id="17292" streamType="1" codec="h264" index="0" bitrate="1500" height="720" width="1280" displayTitle="720p (H.264)"/>
<Stream id="17293" streamType="2" selected="1" codec="aac" index="1" channels="2" language="English" languageCode="eng" displayTitle="English (AAC Stereo)"/>
</Part>
</Media>
<Media videoResolution="480" id="11352" duration="171000" bitrate="450" width="640" height="480" aspectRatio="1.33" audioCodec="aac" videoCodec="h264" container="mp4" premium="1">
<Part id="11410" duration="171000" container="mp4" key="/services/iva/assets/95255/video.mp4?bitrate=450" optimizedForStreaming="1">
<Stream id="17294" streamType="1" codec="h264" index="0" bitrate="450" height="480" width="640" displayTitle="480p (H.264)"/>
<Stream id="17295" streamType="2" selected="1" codec="aac" index="1" channels="2" language="English" languageCode="eng" displayTitle="English (AAC Stereo)"/>
</Part>
</Media>
</Video>
</Extras>
</Video>
</MediaContainer>

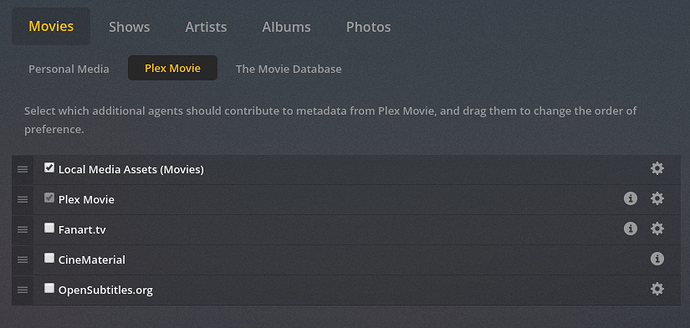

Agent’s configuration:

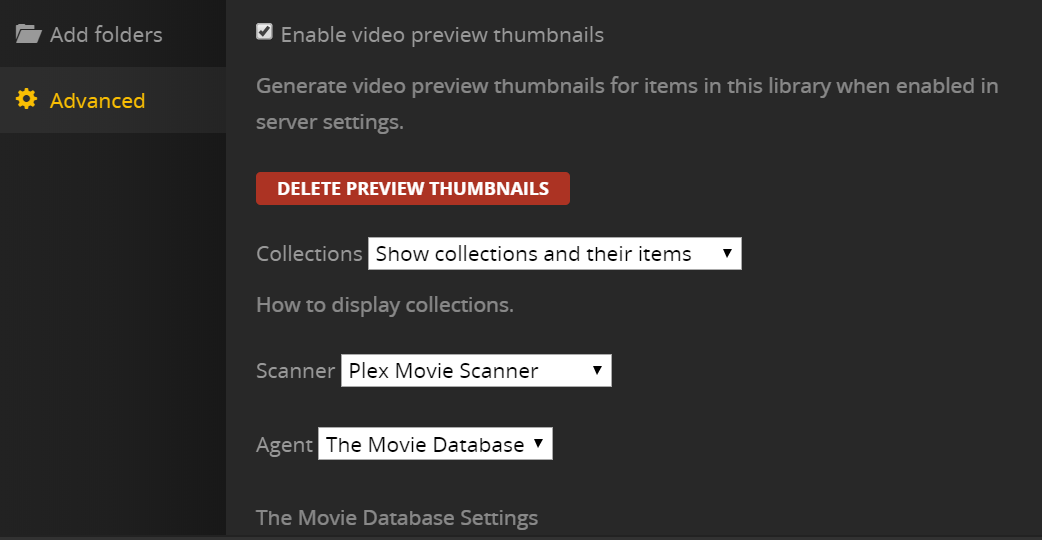

Library’s config:

Server Version#: 1.14.0.5470

Any hints why it isn’t working? Which log can I provide to see what’s going on?

Thank you very much

Thank you for your help, unfortunately the mentioned steps didn’t have the desired effect on the issue. These are the settings:

Synology:

Plex:
plexv6

After deleting the cache, restarting Plex and clicking Refresh Metadata, the icon keeps spinning for 90 seconds but won’t update any artwork afterwards.

Any more ideas?

The same game again with proof :slight_smile:

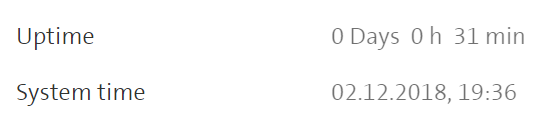

Router:
router

Synology:

Additionally, I installed WebTools and would like to skim the logs but I’m not sure which file could point to a possible error message.

created a fresh dummy/test file

Agent settings:

This file has been “Plex Dance” 'd ?

I followed the steps here to perform a Plex Dance: The Plex Dance ™
Now even less information is gathered and displayed:

In other threads I read that Local Media Assets should have a low priority (or even be unchecked) to avoid issues with .mp4 files and embedded properties. Isn’t that correct?

There must be something in your MP4 causing this.

I use MKV. PMS does not use any metadata in a MKV. It does read from MP4, even if incorrect

Thanks for your replies and the clarification about LMA. I reset the configuration according to your suggestion. Just to note: In this particular case the file is an mkv.

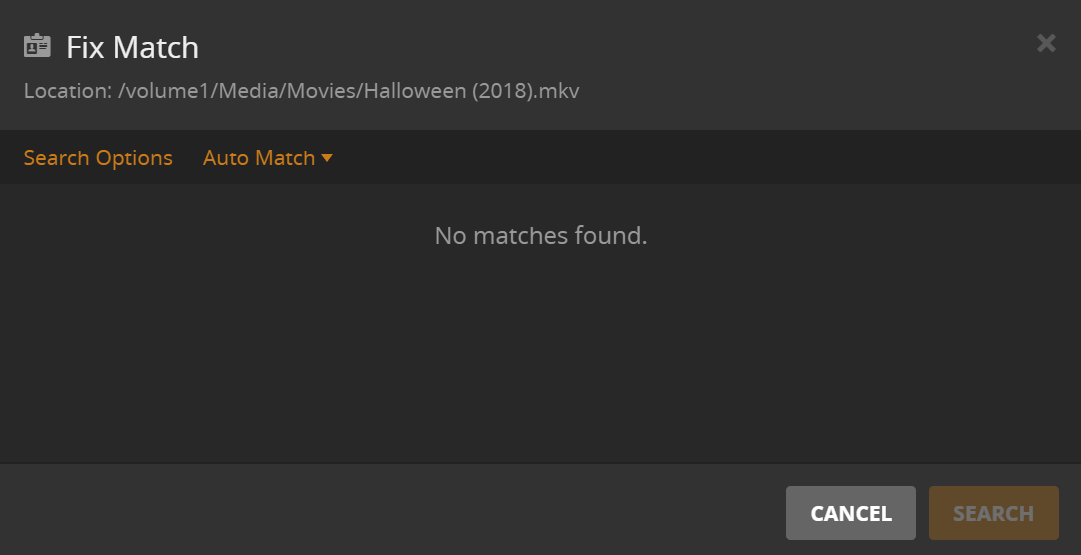

I tried manually fixing the match, unfortunately no matches were found:

I wonder if I should just throw everything in the bin and start over again with a clean installation as I can’t tell for sure what’s going on on a process level. Plex works perfectly until… it doesn’t anymore and then it’s hard to tell why :slight_smile:

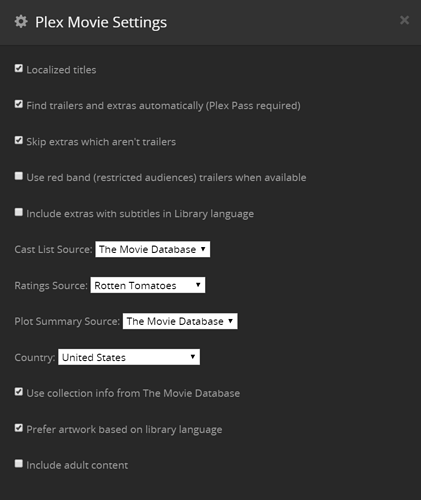

In the agent configuration above, Click onto the ‘cog wheel’ icon at the end of the line ‘Plex Movie’.
Then set the ‘Cast list source’ to ‘The Movie Database’.
Refresh Metadata of the movie.

I live in Switzerland, central Europe. I have attached the requested logs:
Plex Media Server Logs_2018-12-04_16-37-50.zip (4.9 MB)
It could be possible that some domains are blacklisted by the ISP. However, this would be something new since older movies didn’t have this issue.

@OttoKerner: That setting is already configured:

Thank you both for your help. I really appreciate it.

Thanks for your analysis. I will try all the things again - I already did it twice in fact.

Just one question to clarify: If I ssh to the diskstation Plex is running on and execute a curl to the mentioned URI, I get a 401 answer:

curl http://127.0.0.1:32400/services/tmdb?uri=%2Fsearch%2Fmovie%3Fquery%3DVenom%26year%3D2018%26language%3Den%26include_adult%3Dtrue
<html><head><title>Unauthorized</title></head><body><h1>401 Unauthorized</h1></body></html>

Is this correct since I didn’t set an Authorization header or is that URI expected to work without authentication?

Alright, thanks for that. I’ll try the above mentioned steps again.

Unfortunately, repeating all the steps doesn’t solve the issue. Do we have any further options that could prevent me from re-installing Plex? Are there more logs to analyze? Could @ChuckPa add more log-statements if that outgoing-call is unsuccessful in a future version of Plex :innocent:

I am very grateful for your wonderful support. I’m quite curious if it’s possible to prevent this particular issue for other installations or assist users to resolve it otherwise.

I stopped Plex, renamed the libary, added a new folder, started Plex and added a new library targeting that folder. Afterwards I copied a movie from the renamed folder to that new folder. I picked a movie that was working before and which is an mkv.

As somehow expected, media files aren’t downloaded for that file:

But at least Plex is trying:

So this means the installation as such is somehow corrupt and it isn’t because of the respective files. Just as a side note, I use filebot to rename files in order to match Plex’ naming conventions.

Is there a magic button to repair “everything” inconsistent? :wink:

My bad, let me rephrase please:

I stopped Plex.
I renamed the folder “Movies” of the library “Movies” to “Movies.old”.
I created a folder “Movies-Test”, then started Plex and created a library “Movies-Test”.
I placed a file in “Movies-Test” and let Plex match it with the above results.

Did I misunderstand your instruction?

Apologies that I misunderstood you.

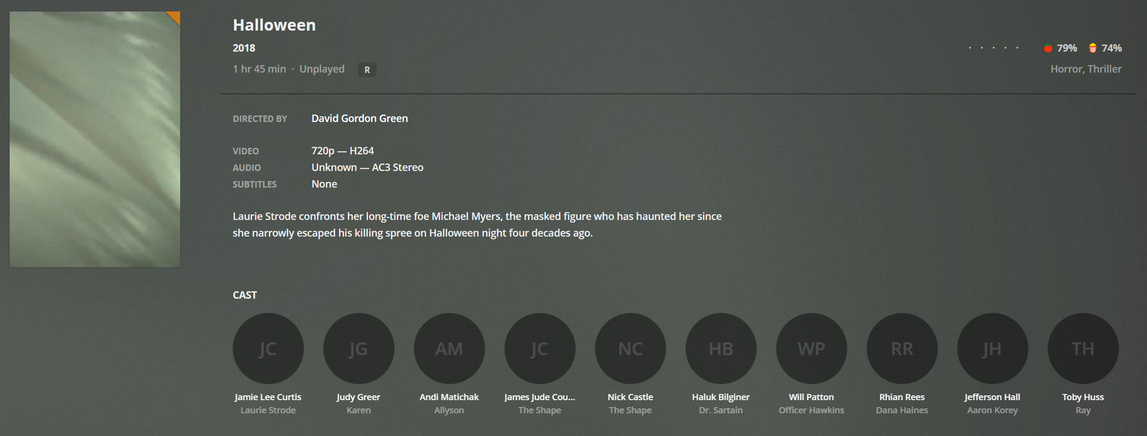

I followed your instructions, have now a clean library (in a new folder), inserted a file (.mkv) and let Plex discover it:

So the actors and a description are loaded - even rotten’s rating but unfortunately still no images.
I didn’t change any settings, so agents are configured with default values.

:heavy_check_mark:

:heavy_check_mark:

:heavy_check_mark: although it’s challenging if you’re not sure what you’re looking for :smile:

:heavy_check_mark: no firewall active on the NAS or in the network

:heavy_check_mark: no VPN in place

I would love to raise a feature-request in order to extend the logging for this particular exception:
2018-12-07 20:58:36,394 (7fc45c869700) : ERROR (networking:219) - Error opening URL 'http://127.0.0.1:32400/services/tmdb?uri=%2Fsearch%2Fmovie%3Fquery%3DTag%26year%3D2018%26language%3Den%26include_adult%3Dfalse'

I checked the DNS query log and see api.tmdb.org is successfully resolved to its IP address (104.16.57.155). So in my opinion Plex and/or tmdb know what the issue is but neither are are able to log it. If I knew there was a connection refused (i.e. port isn’t reachable) or a timeout or even a hint in the response status (i.e. 429 - too many requests or whatever) I could search further. But as long as Plex isn’t telling us what the underlying issue is, there’s not much I can do unfortunately.

Can you please help me submit this request?

I used these commands:

sudo -i
cd /volume1
find ./Plex -type d -exec chmod  755 {} \;
find ./Plex -type f -exec chmod  644 {} \;
chown -R plex:users ./Plex/Library

No effect unfortunately.

Hey everyone how are you doing?

I live in Brazil and I have a DS218+ and I am having the same problem. I am not sure how long this have been occurring, but today I downloaded a few movies and tried to get their metadata but I couldn’t.

I have tried a lot of thing even a fresh new install of plex but it didn’t work. Obviously this was a bad idea, because I also deleted plex user and plex share folder on the NAS. Now I don’t have any thumbnail for any movie I have (total of 115 movies).

I have read all messages on this post but none of this worked for me. It seems a problem related to the NAS connection because I installed plex media server on my macbook pro, set all agents in the same order, then I mounted my movie folders and let PMS scan. All images were downloaded with no problems.

Please somebody Help me too.

Good news, I’ve just upgraded to 1.15.1.710 and confirm that all media is fetched and displayed as expected again. Thank you @trumpy81 for your support, and @ChuckPa please convey my gratitude to the Plex team.
