This is not a critical error; Sinology itself describes it as an optional feature.
It doesn’t work that way, you need to reinstall the already fixed package.
Install / uninstall service port config file during package install / uninstall.
https://help.synology.com/developer-guide/resource_acquisition/port_config.html
During installation it is copied here /usr/local/etc/service.d/ If it’s not there, then it won’t update.
I’ve gotten the package resource fixed.
Test package installs without error.
PlexMediaServer is not listed in Control Panel - Security - Create - Select (built-ins)
To confirm it’s updating now without issue, I slapped it a bit.
- I found the file installed in
services.das it should be
bash-4.4# chown root:root PlexMediaServer.sc
bash-4.4#
bash-4.4#
bash-4.4# ls -la
total 28
drwxr-xr-x 3 root root 4096 Sep 12 14:16 .
drwxr-xr-x 17 root root 4096 Mar 10 2023 ..
-rw-r--r-- 1 root root 703 Aug 1 11:39 DownloadStation.sc
-rw-r--r-- 1 root root 202 Sep 12 12:56 PlexMediaServer.sc
-rw-r--r-- 1 root root 592 Apr 28 03:55 ScsiTarget.sc
-rw-r--r-- 1 root root 480 May 4 2021 SMBService.sc
drwxr-xr-x 2 root root 4096 Sep 12 14:16 tmp
bash-4.4# /usr/syno/sbin/synopkghelper update PlexMediaServer port-config
bash-4.4# ls -la
total 28
drwxr-xr-x 3 root root 4096 Sep 12 14:16 .
drwxr-xr-x 17 root root 4096 Mar 10 2023 ..
-rw-r--r-- 1 root root 703 Aug 1 11:39 DownloadStation.sc
-rw-r--r-- 1 PlexMediaServer PlexMediaServer 202 Sep 12 12:56 PlexMediaServer.sc
-rw-r--r-- 1 root root 592 Apr 28 03:55 ScsiTarget.sc
-rw-r--r-- 1 root root 480 May 4 2021 SMBService.sc
drwxr-xr-x 2 root root 4096 Sep 12 14:16 tmp
bash-4.4#
Here you can see it’s copied back into position from the target.
I’m not understanding what’s missing
Regrettably, the DSM 7 guide is far more vague than it used to be.
The 7.2 update doesn’t have nearly the same as it did originally for DSM 7.0 beta
This seems to be why things aren’t working. (ports aren’t actually being reserved)
bash-4.4# servicetool --conf-port-conflict-check --tcp 32400
IsConflict: false Port: 32400 Protocol: tcp ServiceName: (null)
bash-4.4# servicetool --conf-port-conflict-check --tcp 32410
IsConflict: false Port: 32410 Protocol: tcp ServiceName: (null)
bash-4.4# servicetool --conf-port-conflict-check --udp 32410
IsConflict: false Port: 32410 Protocol: udp ServiceName: (null)
bash-4.4#
I don’t understand what you want to check here?
Easy way to check:
Control Panel-Info Center-Service
Control Panel-Externel Access-Router Configuration-Create-Bulit-in application
That’s how it should be. This is explicitly stated in your privileges file.
{
"defaults":{
"run-as": "package"
},
"username": "PlexMediaServer",
"groupname": "PlexMediaServer"
}
here from my system
rw-r--r-- 1 sc-jackett synocommunity 87 Apr 26 05:20 jackett.sc
-rw-r--r-- 1 MediaServer MediaServer 394 Jun 7 2021 MediaServer.sc
-rw-r--r-- 1 root root 231 Jul 23 2020 ReplicationService. sc
-rw-r--r-- 1 root root 592 Apr 28 10:55 ScsiTarget.sc
-rw-r--r-- 1 root root 480 Jun 27 2021 SMBService.sc
drwxr-xr-x 2 root root 4096 Sep 11 19:29 tmp
-rw-r--r-- 1 TorrServer TorrServer 104 Sep 3 12:16 TorrServer.sc
-rw-r--r-- 1 sc-transmission synocommunity 103 Sep 9 21:13 transmission.sc
-rw-r--r-- 1 root root 153 Apr 14 07:05 Virtualization.sc
So for my BIG question

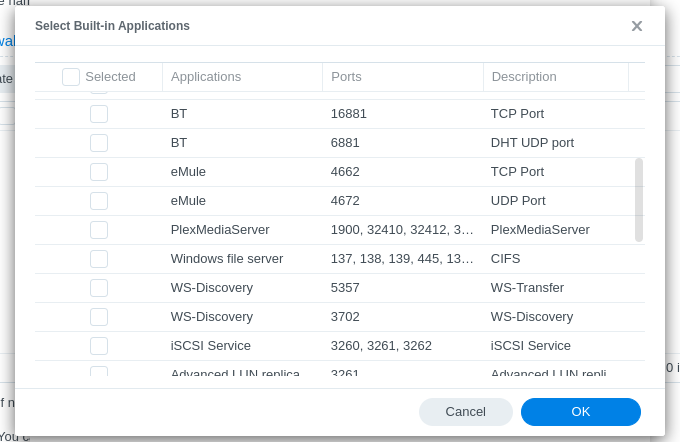

What makes it show up in Control Panel - Security - Firewall - (select)
e.g. This list
I presume this is why we’re fixing it?
You wrote a little incorrectly where. Yes, and this too, if Plex is not there, then the port config did not work.
1 Like
it should be something like this
root@SYNO:~# servicetool --conf-port-conflict-check --tcp 9091
IsConflict: true Port: 9091 Protocol: tcp ServiceName: transmission
Can you hand-craft a SPK file which does make it work?
Ok, i will try
I found part of the problem:
bash-4.4# servicetool --conf-port-conflict-check --tcp 32400
IsConflict: true Port: 32400 Protocol: tcp ServiceName: PlexMediaServer
bash-4.4#
Now to see if I can make the rest work
1 Like
Great, I’m shutting down the virtual machine.
1 Like
it’s as broken as it ever was.
Time to see if I can hack it.
bash-4.4# /usr/syno/sbin/synopkghelper update PlexMediaServer port-config
bash-4.4# servicetool --conf-port-conflict-check --tcp 32400
IsConflict: false Port: 32400 Protocol: tcp ServiceName: (null)
bash-4.4# servicetool --conf-port-conflict-check --udp 32410
IsConflict: true Port: 32410 Protocol: udp ServiceName: PlexMediaServer
bash-4.4# servicetool --conf-port-conflict-check --udp 32400
IsConflict: true Port: 32400 Protocol: udp ServiceName: PlexMediaServer
bash-4.4#
This is why I didn’t add in DSM 7.
- We don’t have ‘root’ privilege
- I can’t update the firewall (as root) from the shell.
The package’s PlexMediaServer.sc is from DSM 6 where it works.
I see some ports have passed the test, maybe you have an error in the .sc file.
dst.ports="32400/tcp,32401/tcp,32469/tcp,32600/tcp,3005/tcp,8324/tcp,1900/udp,32410/udp,32412/udp,32413/udp,32414/udp"
this is from the config of the Sinology virtual machine
dst.ports="2379:2382,2385,16509,16514,30200:30299,30300/tcp"
this is a Samba server
dst.ports="137,138,139,445/udp,tcp"
Here I tested it on my package
dst.ports="8090,8092,8094,8096,8099,55555,55655/udp,tcp"
everything is working
You’re allowing UDP+TCP on those ports.
That’s not the spec here. I have TCP-only and UDP-only ports.
I can get this (UDP) or the TCP ports but not both:
Then I don’t know, I reviewed a lot of Synology services. They always use TCP and UDP for the same port.
They point this out explicitly in their GitBook.
Required
Each service should have destination ports. The value should contain at least the port numbers, and a default protocol that is tcp + udp.
It’s up to you to decide what to do. Have a nice day, it’s already night for me.
1 Like
ALL following here:
I’ve found a way to implement predefined firewall rules for PMS. It’s not pretty.
This is the only way which works on DSM 7 without knowing DSM 7 internals & documentation.
Is this acceptable ? (TCP & UDP settings for the firewall)
1 Like
Why It’s not pretty? Look above, the same method is used by Download Station.
I think it’s a great job on your part, all minor bugs are now fixed.
1 Like
This is what I found, everything is in the Sinology documentation.
Usually a package only has one unique service name. If your package needs more than one port description, you can define service_name2, service_name3, …
